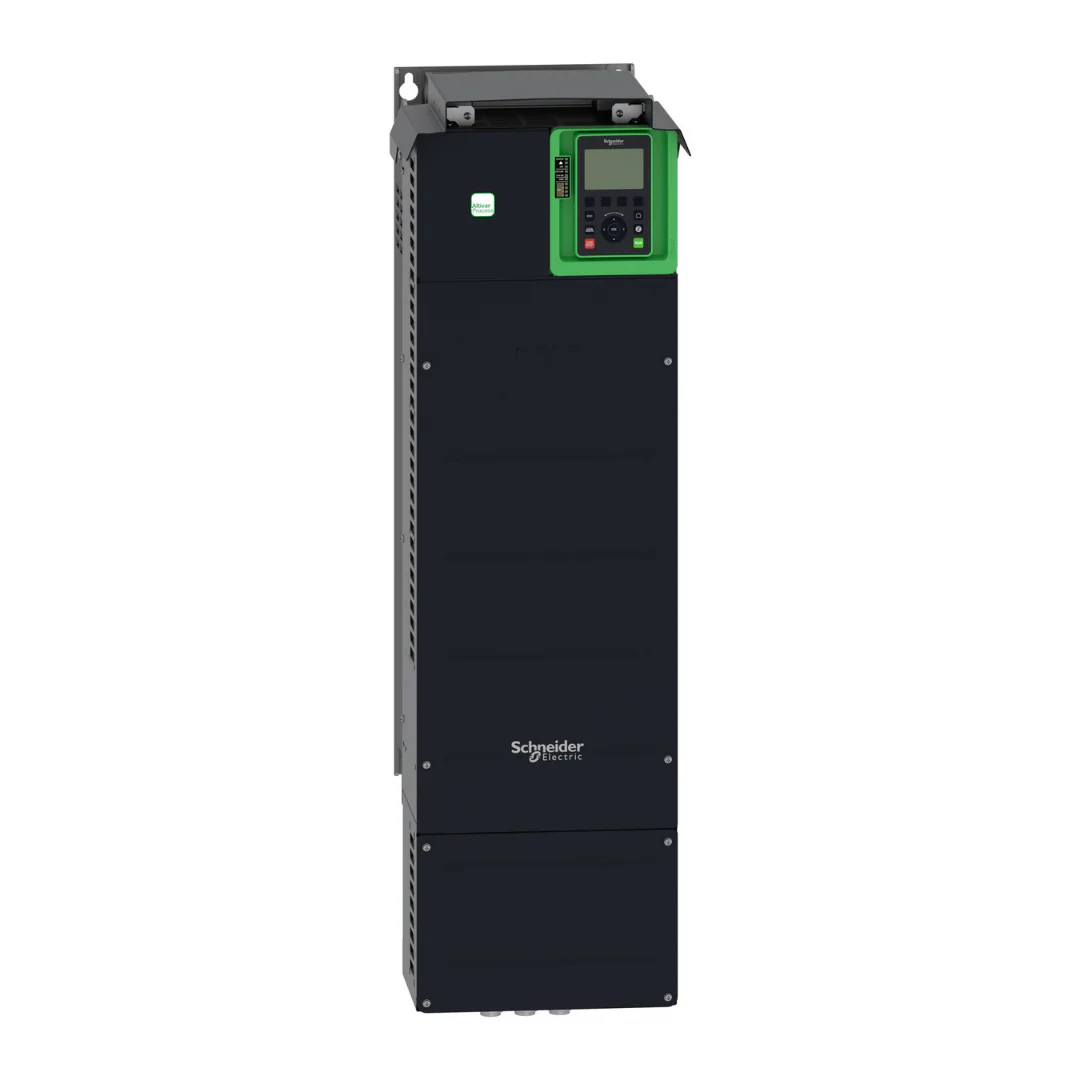

Schneider Electric ATV630D75N4 100 HP Variable Frequency Drive

This Altivar Process ATV600 variable speed drive can feed 3-phase synchronous and asynchronous power motors. It features 3 built-in RJ45 communication ports as standard, 1 Ethernet port, 2 serial ports. It works at a rated supply voltage from 380V to 480V AC. This drive provides up to 30% energy saving when on standby due to the innovative ‘‘Stop and Go’’ operation without additional costs. It is suitable for motors with power rating up to 75kW / 100hp for applications requiring slight overload (up to 120%). It is suitable for motors with power rating up to 55kW / 75hp for applications requiring significant overload (up to 150%).

This drive is focused on fluids management processing and energy saving, it offers extensive flexibility in water and wastewater, mining, minerals and metals, oil and gas and food and beverage applications.

Specifications:

Supply Voltage: 380V-480V
Motor power: 75 kW normal duty / 55 kW heavy duty
Maximum Horse Power Rating: 100 HP normal duty / 75 hp heavy duty
Communication Port Protocol: Ethernet / Modbus Serial / Modbus TCP
IP degree of protection: IP21IEC 61800-5-1 / IP21IEC 60529
Degree of protection: UL type 1 UL 508C
Speed drive output frequency: 0.1-500 Hz
Nominal switching frequency: 2.5 kHz
Safety function STO (safe torque off): SIL 3
Discrete Input Logic: 16 preset speeds
Cooling: Forced Convection

Resources:

Variable Frequency Drives (VFD) | AC Drives | VFD Accessories

Schneider Electric ATV630D75N4 100 HP Variable Frequency Drive

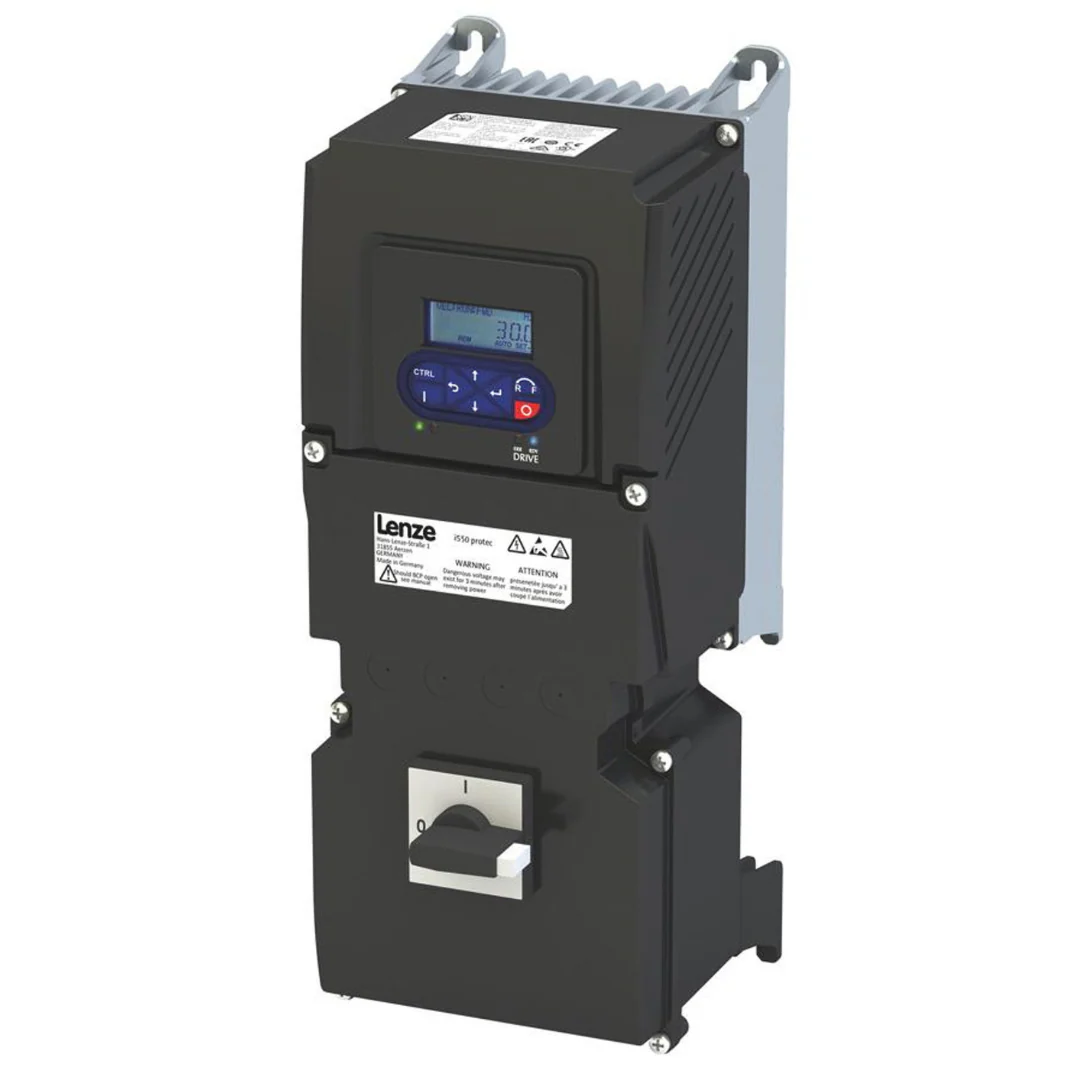

Lenze i550 1.5 HP Protec Frequency Inverter - I55AP211D20701K00S
