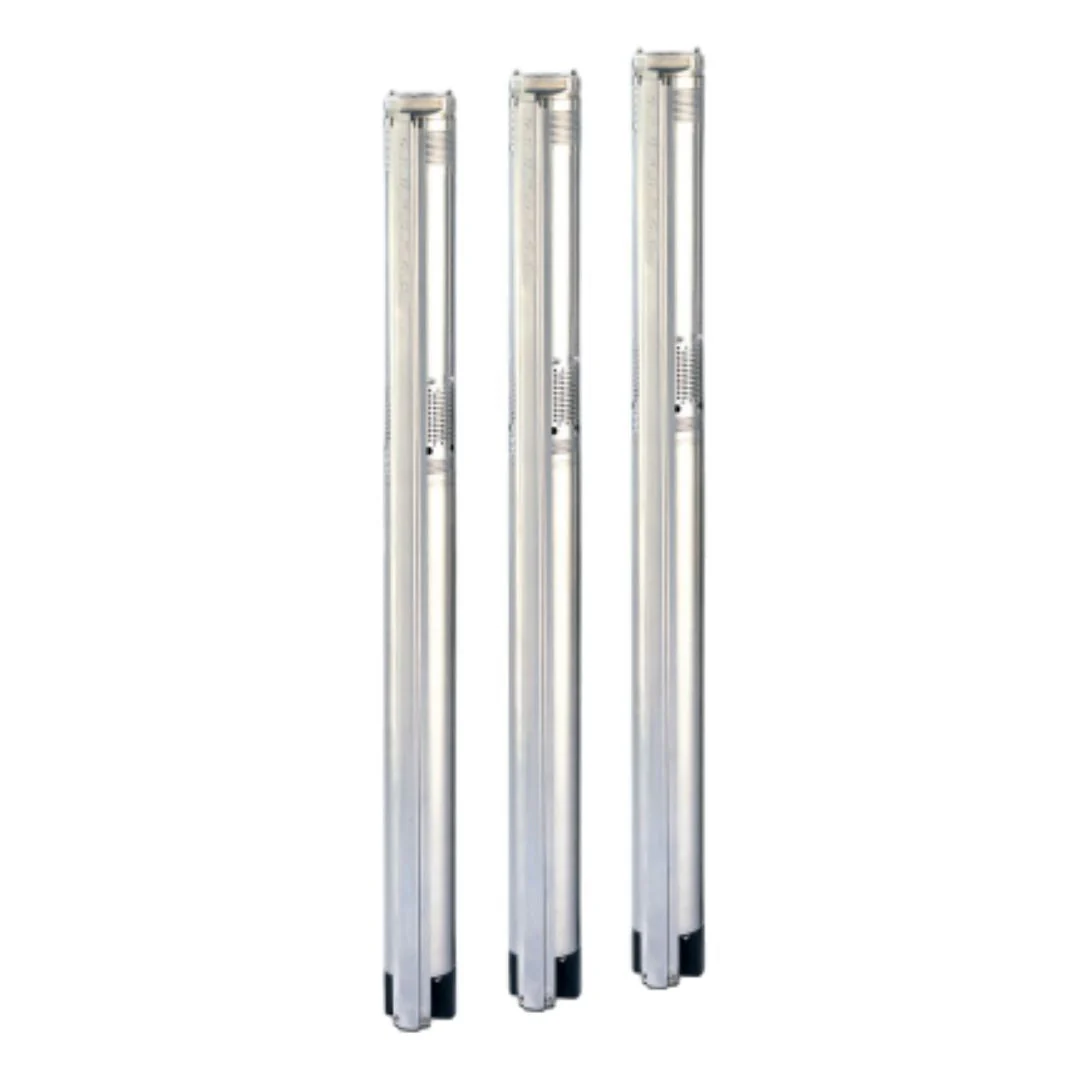

Grundfos 30SQ05-40 Submersible Groundwater Pump

At only 3 inches in diameter, the Grundfos SQ submersible pump is extremely compact and ideal for small or restricted wells. In addition to the features and benefits shared with the renowned SP submersible pump, the SQ offers a number of motor protection and wear-reducing features that makes it the obvious choice for groundwater pumping. Suitable for domestic or small waterworks, and small irrigation systems.

Features:

The SQ motor is protected against over and undervoltage, and voltage fluctuation generally
Soft start ensures a low starting current with a smooth and steady acceleration
Low ampere usage makes it possible to connect more appliances to the same fuse group or reduce the size of the power line
The SQ pump is factory pre-set based on minimum power consumption, and dry-running protection is activated 40 seconds after power is connected to allow priming of the pump

Applications:

Groundwater pumping
Domestic or small waterworks
Small irrigation systems

Specifications:

Pump speed: 10700 rpm
Rated flow: 30.8 US gpm
Rated head: 29.53 ft
Stages: 1
Approvals: cULus
Power input - P1: 1 kW
Rated power - P2: 0.939 HP
Power (P2) required by pump: 0.979 HP
Main frequency: 60 Hz
Voltage: 100-115V / 200-240V
Maximum operating pressure: 217.56 psi
Temperature Range: 32°-95° F
Pump outlet: 1-1/2" NPT
Minimum borehole diameter: 2.99 in
