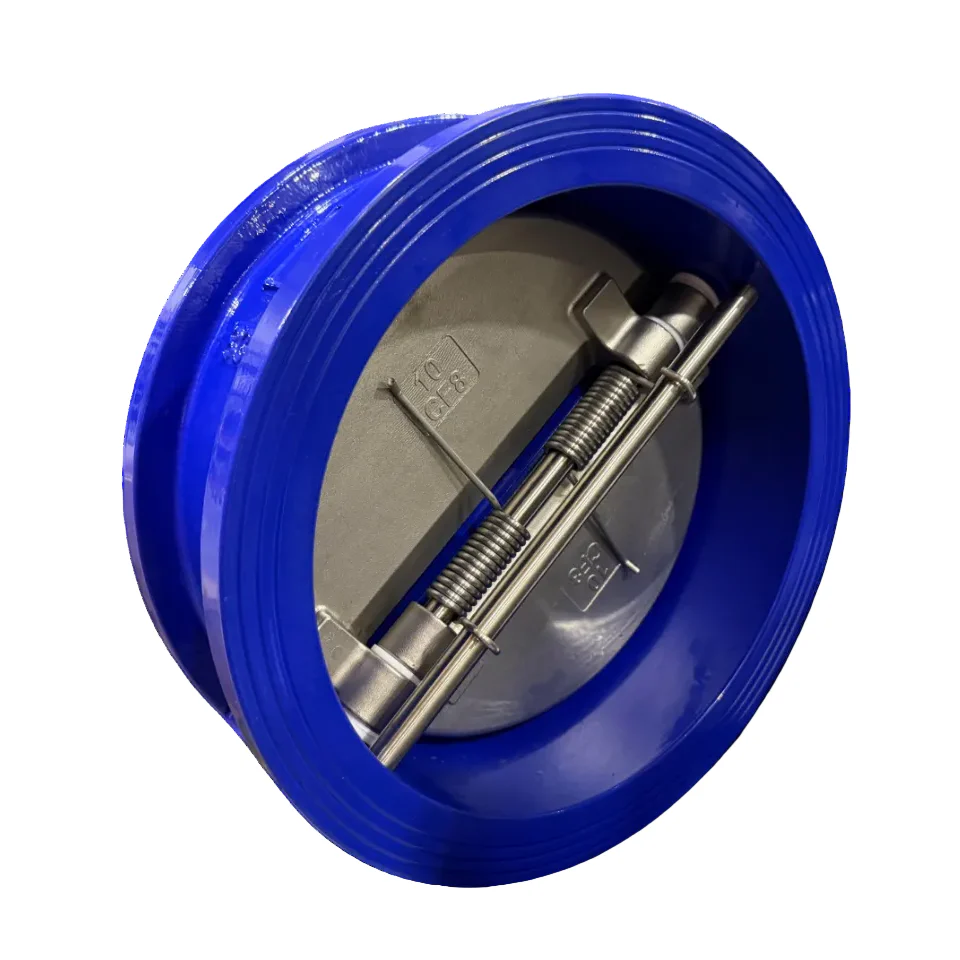

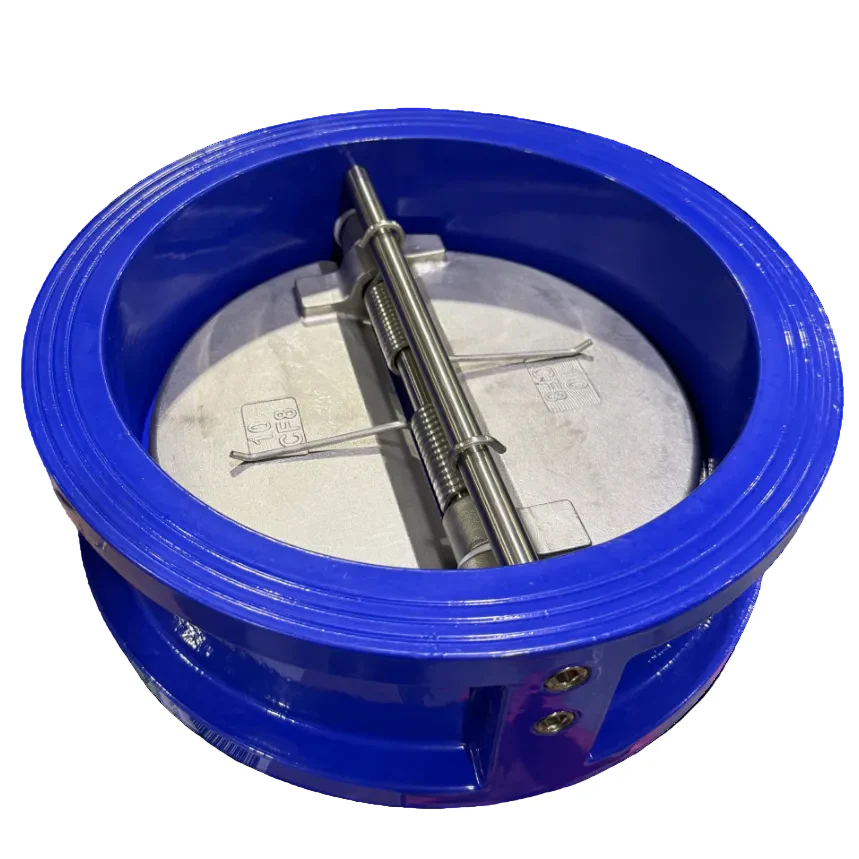

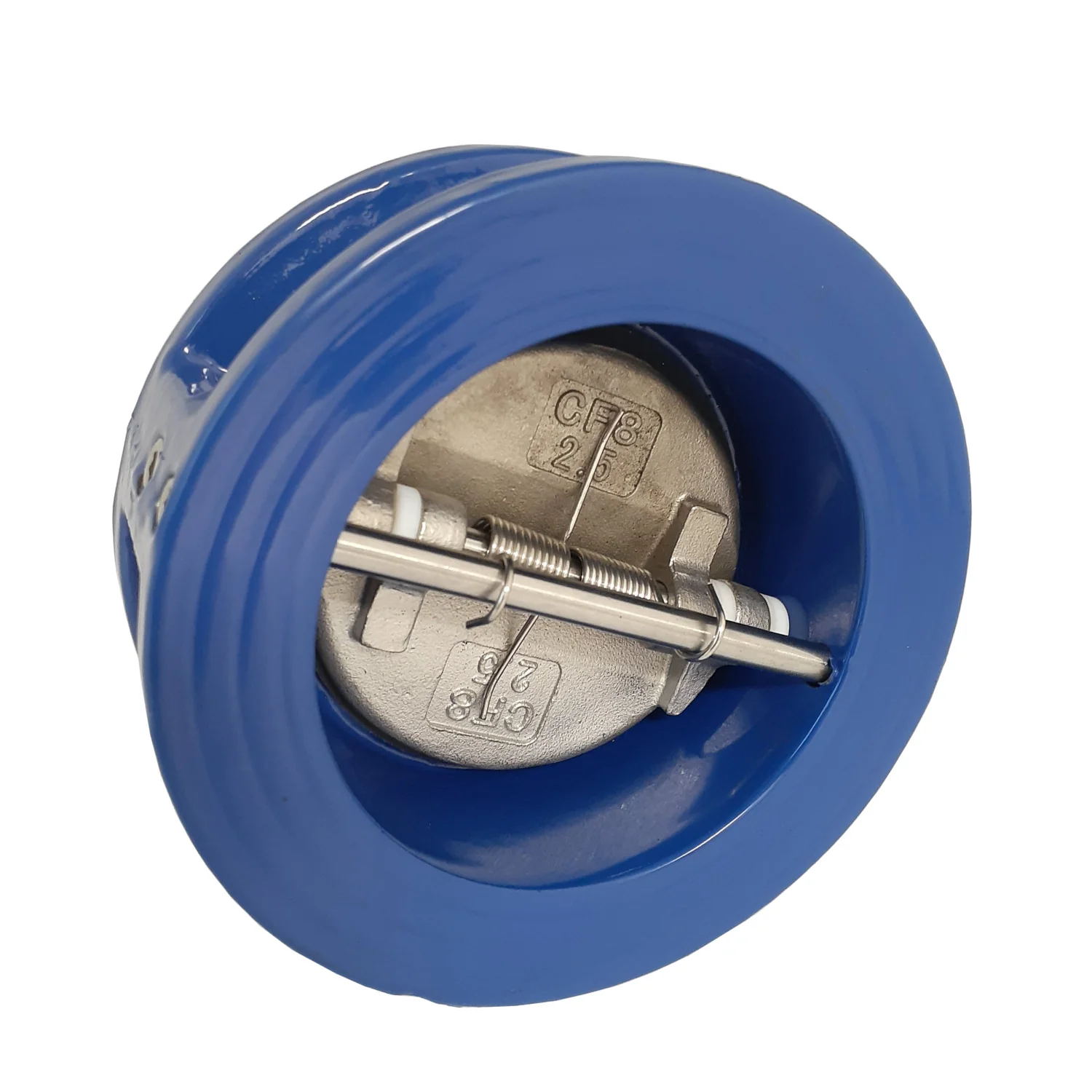

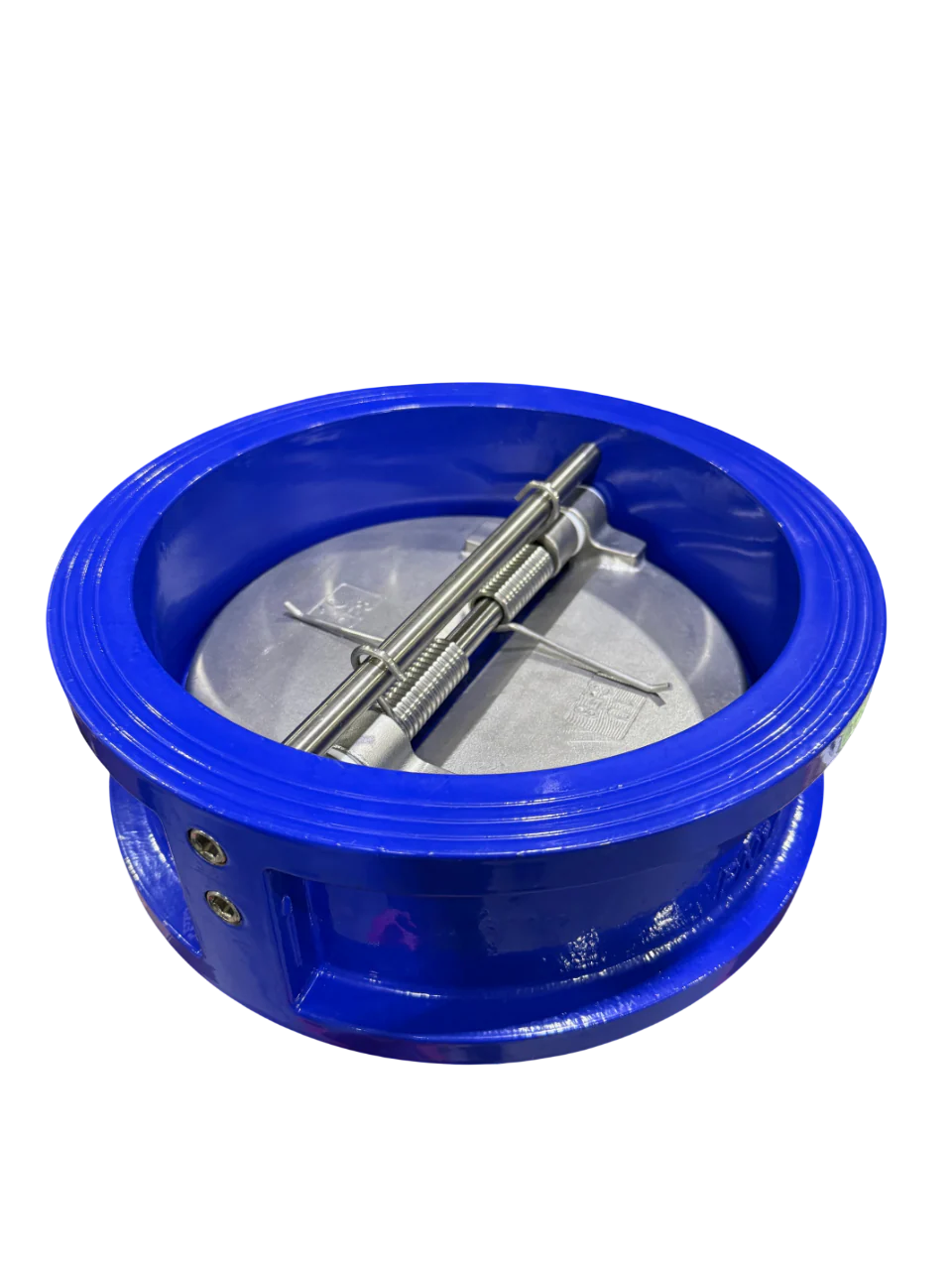

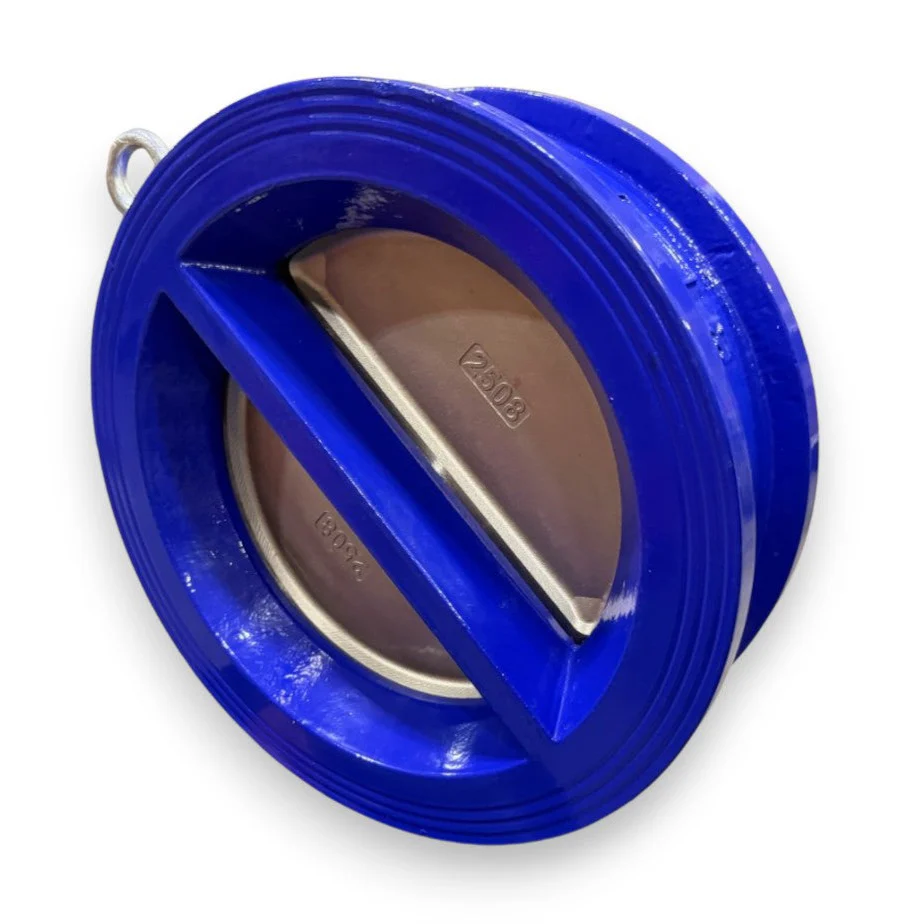

10 Inch Dual Plate Carbon Steel Wafer Style Check Valve, Viton Seat
DUAL PLATE WAFER STYLE CHECK VALVE; CARBON STEEL; VITON SEAT
Wafer Check Valves are ready for immediate shipment for all Landfill Gas and Remediation applications.
- Low spring pressure requirements: Short flow path and smooth body and disc design creates low pressure drop across valve
- Ductile Iron Body
- Epoxy Coated
- 304 Stainless Steel for all alloy internals
- Viton Body Seat
- -4◦ F to 245◦ F Temperature Range
- Spring and Body Bearings: 304 Stainless Steel
- Minimum cracking pressure: 3” WC (0.11 psig)
- ANSI 150lb flange rating
- 225 psi shell pressure rating
- 165 psi seal pressure rating
$238.00
Original: $679.99
-65%10 Inch Dual Plate Carbon Steel Wafer Style Check Valve, Viton Seat—
$679.99
$238.00
Description
DUAL PLATE WAFER STYLE CHECK VALVE; CARBON STEEL; VITON SEAT
Wafer Check Valves are ready for immediate shipment for all Landfill Gas and Remediation applications.
- Low spring pressure requirements: Short flow path and smooth body and disc design creates low pressure drop across valve
- Ductile Iron Body
- Epoxy Coated
- 304 Stainless Steel for all alloy internals
- Viton Body Seat
- -4◦ F to 245◦ F Temperature Range
- Spring and Body Bearings: 304 Stainless Steel
- Minimum cracking pressure: 3” WC (0.11 psig)
- ANSI 150lb flange rating
- 225 psi shell pressure rating
- 165 psi seal pressure rating
