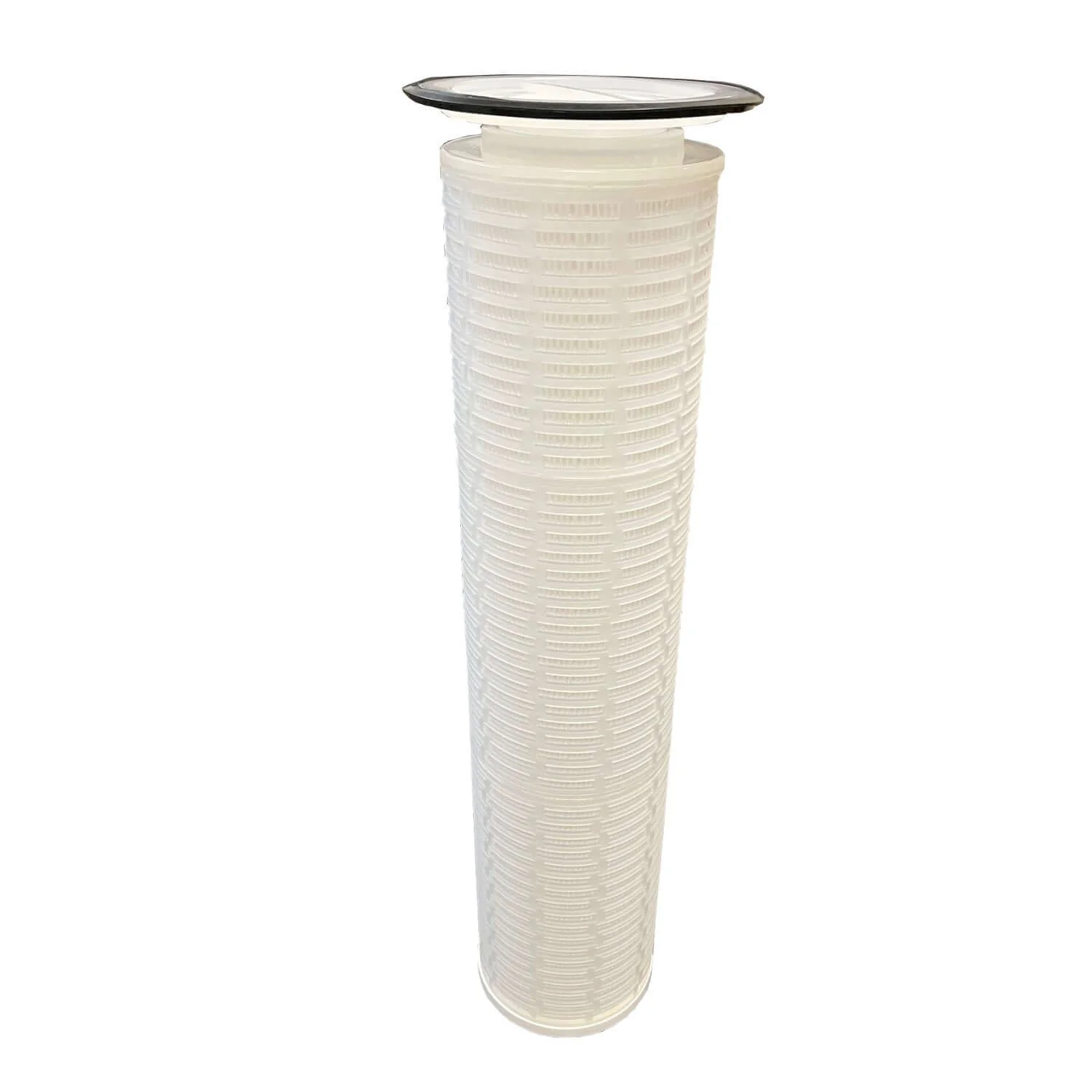

#2 Pleated Polypropylene 10 Micron High Flow Bag Filter Cartridge
#2 Pleated Polypropylene High Flow Bag Filter Cartridge
Bag type high flow filter cartridges are made of pleated polypropylene depth media and designed in inside-out flow direction similar to a bag filter. Pleated Bag Filter Cartridges are ideal for processes requiring high purity and have high flow rates and long service life, which means fewer change outs and lower maintenance costs. Innovative push-in flanges enable quick and convenient replacement into most commercial #2 bag filter housings.
Features:
Use with Standard #2 Bag Filter Housings
High surface area design provides high flow capacity and longer service life
Innovative push-in flanges enable quick and convenient change outs
Inside-out flow effectively traps contaminants inside the elements
Manufactured by advanced thermal welding techniques, cartridges are free of binders and additives
Specifications:
Filter Media: Polypropylene
Micron Rating: 10 μm
O-ring: EPDM
Core: Polypropylene
Filter Support: Polypropylene
End Cap: Polypropylene
Cage: Polypropylene
Max. Operating Temp. 160℉
Max. Differential Pressure 50psi at 68℉
Recommended Change Out Differential Pressure: 35 psi
Measurements: 27.5 Inches Length, Diameter at Widest is 7.5 Inches to Fit inside #2 Bag Filter Housing
Applications:
Pre RO/DI, cooling water, chemicals, petrochemical, electronics
