Ace Roto-Mold 4200 Gallon Horizontal Leg Tank with Hoops
Ace Roto-Mold 4200 Gallon Horizontal Leg Tank with Hoops
Free standing horizontal tanks are selected when transportable (non-DOT regulated) liquid containment is required for indoor or outdoor applications. These tanks are equipped with molded-in legs to support the tanks, band/hoop locators for tie down, and translucent walls with gallon indicators for level viewing. Manufactured from linear low density or high density polyethylene with UV stabilizers, they are designed for containment of liquids of up to 1.7 specific gravity.
Leg tanks must be fully supported for transport, required hoops are included.

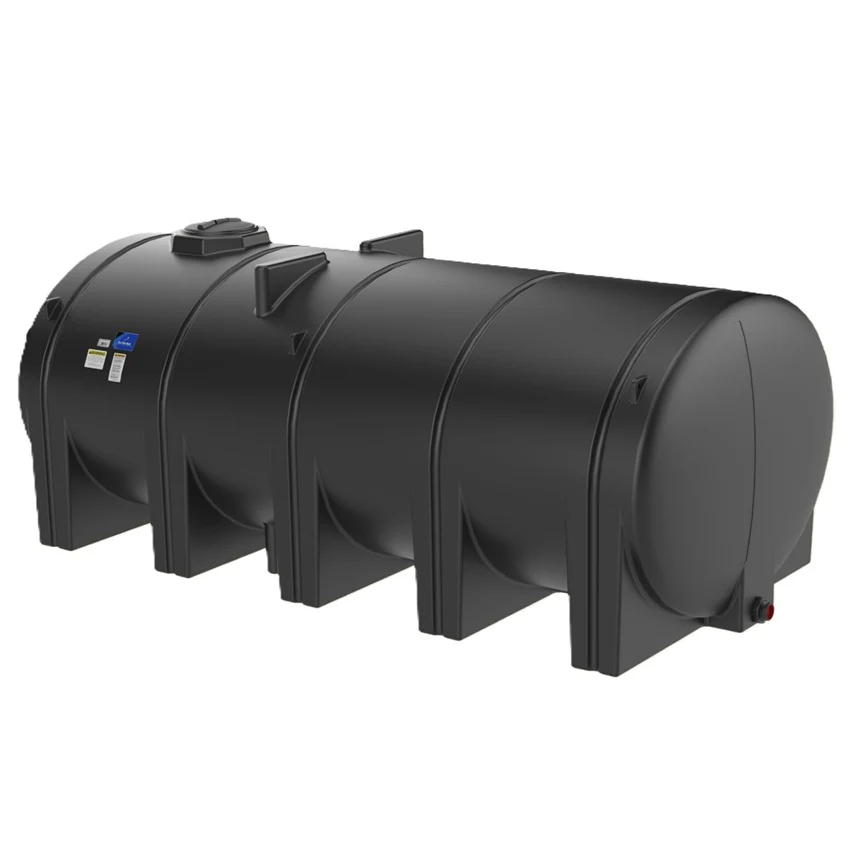

Pictured tank is an example only, actual product appearance may vary. Standard color is white, other colors may be available; please contact PRM for details.
Important: When ordering, please indicate whether the fitting should be installed, not installed, or shipped loose. If installed, notate preferred fitting location (END or SIDE are most common).
Features:
- Leg tank and set of 5 metal hoops
- Molded-in legs for support
- Band locators for tie down
- Medium or high density polyethylene
- UV inhibitors protect against direct sunlight
- Translucent with gallon indicators for quick view of level
Tank Specifications
SKU: TKFS420092
| MPN & Tech Sheet |
Capacity (Gal) | Weight (Lbs) | Dimensions (in) | Lid (in) | Fitting (in) | Specific Gravity |
|---|---|---|---|---|---|---|
| FS4200-92 | 4200 | 1648 | 195 x 92 x 80 Elliptical | 16 | 3 | 1.7 |
Hoop Specifications
SKU: TKFS4200HP92
| MPN & Tech Sheet |
Tank Capacity (Gal) | Weight (Lbs) | Dimensions (in) | Details |
|---|---|---|---|---|
| FS4200-HP-92 | 4200 | 38 | 97 x 10 x 72 | Set of 5 |
All large storage tanks must ship Motor Freight. Price shown does not include shipping.
