Ace Roto-Mold Aquifer Low Profile Cisterns
Ace Roto-Mold Cistern Tanks
Ace Roto-Mold Aquifer Low Profile Cisterns are strong, durable tanks for collection and storage of potable or non-potable water in both below and above ground applications. Aquifers can be buried up to 28″ deep and can be backfilled empty; the sectional ribbing is designed to withstand up to 400 PSF load pressure. They are manufactured from high-density polyethylene with U.V. inhibitors, FDA compliant resins, and conform to the requirements of NSF/ANSI/CAN 61. The low profile design features multiple fitting flats to accommodate a variety of plumbing configurations, and the tanks can be stacked for shipping and storage.

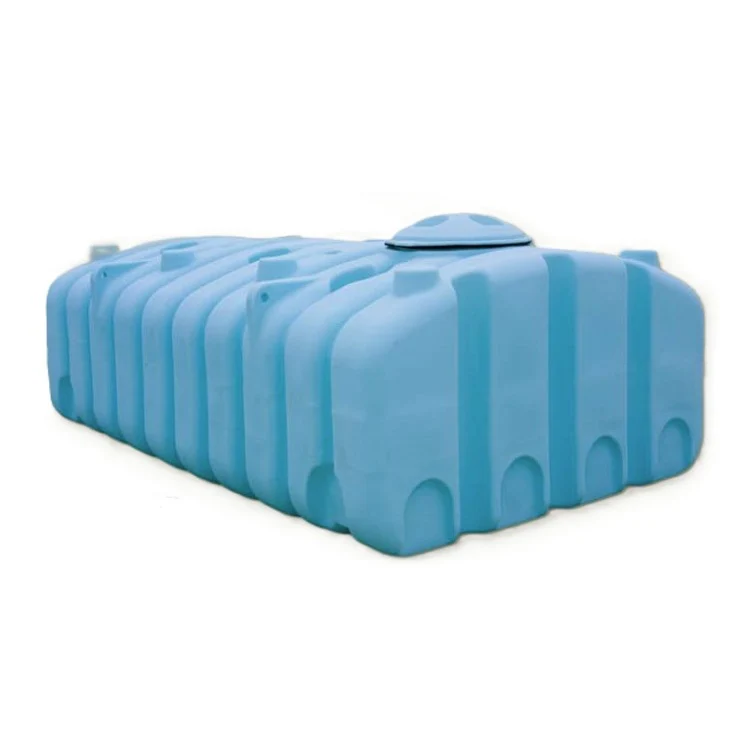

Pictured tanks are examples only, actual product appearance may vary.
Features:
- High-density polyethylene with UV inhibitors to protect against direct sunlight
- Manufactured for containment of liquids with up to 1.7 specific gravity
- Low Profile design with top flats for up to 3" fittings and side flats for up to 4" fittings
- Sectional Ribbing with molded-in columns and intermediate 4" PCV supports designed to withstand up to 400 PSF load pressure
- Lifting lugs and eyelets for handling and installation
- Stackable for shipping and storage
- 24" Burial lid with flats for up to 3" fittings
- Available with 28" riser and locking lid ground access assembly
- Conform to the requirements of NSF/ANSI/CAN 61
- FDA compliant resins
Specifications
| MPN & Tech Sheet |
Capacity (Gal) | Weight (Lbs) | Dimensions (in) | Lid (in) | Specific Gravity |
|---|---|---|---|---|---|
| ACT1000-LPB | 1000 | 559 | 98 x 111 x 36 | 24 | 1.7 |
| ACT1000-LPG | 1000 | 595 | 98 x 111 x 36 | 24 | 1.7 |
| ACT1500-LPB | 1500 | 702 | 98 x 111 x 48 | 24 | 1.7 |
| ACT1500-LPG | 1500 | 738 | 98 x 111 x 48 | 24 | 1.7 |
| ACT2000-LPB | 2000 | 917 | 98 x 158 x 45 | 24 | 1.7 |
| ACT2000-LPG | 2000 | 953 | 98 x 158 x 45 | 24 | 1.7 |
| ACT2500-LPB | 2500 | 1031 | 98 x 158 x 54 | 24 | 1.7 |
| ACT2500-LPG | 2500 | 1067 | 98 x 158 x 54 | 24 | 1.7 |
All large storage tanks must ship Motor Freight. Price shown does not include shipping.
Resources:
Original: $2,654.99
-65%$2,654.99
$929.25
