Ace Roto-Mold Cone Bottom Tanks - Dome Top

Ace Roto-Mold Cone Bottom Dome Top Tanks

Cone bottom tanks are selected when a more complete drain out of stored chemical is required in indoor or outdoor installations. Manufactured from linear low density or high density polyethylene with UV stabilizers, the walls are translucent for level viewing and equipped with gallon indicators. These tanks require stands to support the conical bottoms.

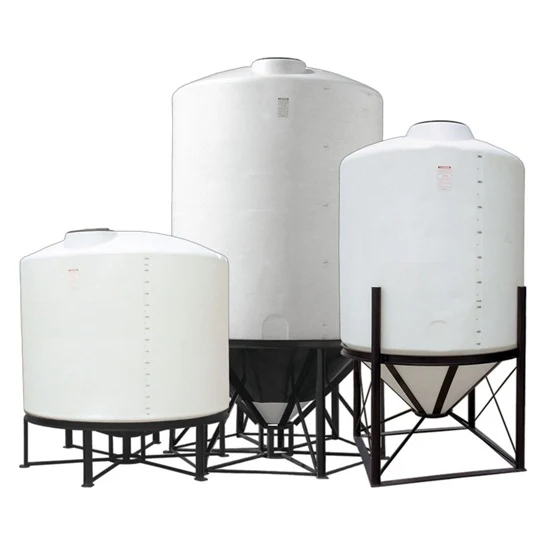

Pictured tanks are examples only, actual product appearance may vary. This listing is for dome top cone bottom tanks only; tank stands sold separately. Flat top cone bottom tanks are also available.

Features:

• Conical bottom for drainage
• UV inhibitors protect against direct sunlight
• Translucent with gallon indicators for quick view of liquid level



Specifications

MPN & Tech Sheet	Capacity (Gal) | Angle (Deg)	Weight (Lbs)	Dimensions (in)	Lid (in)	Fitting (in)	Specific Gravity
CB0300-42	300 | 45°	102	42 x 67	16	2	2.0
CB0800-86	800 | 15°	182	86 x 48	16	2	1.7
CB1000-64	1000 | 45°	252	64 x 98	16	2	1.7
CB1500-96	1500 | 30°	252	96 x 80	16	2	1.7
CB2000-96	2000 | 30°	292	96 x 96	16	2	1.7
CB2500-90	2500 | 15°	532	91 x 111	16	2	1.7
CB3000-96	3000 | 30°	552	96 x 125	16	2	1.7
CB6000-122	6000 | 15°	1602	122 x 162	16	3	1.7
CB7500-142	7500 | 15°	1677	142 x 163	16	3	1.7
CB10500-142	10500 | 15°	2502	142 x 209	16	3	1.7
CB12500-142	12500 | 15°	3402	142 x 239	16	3	1.7

All large storage tanks must ship Motor Freight. Price shown does not include shipping.
