Ace Roto-Mold Cone Bottom Tanks - Flat Top

Ace Roto-Mold Flat Top Cone Bottom Tanks

Cone bottom tanks are selected when a more complete drain out of stored chemical is required in indoor or outdoor installations. Manufactured from linear low density or high density polyethylene with UV stabilizers, the walls are translucent for level viewing and equipped with gallon indicators. These tanks require stands to support the conical bottoms. Flat Top Cone Bottom Tanks feature additional flats for fitting installation or mount.

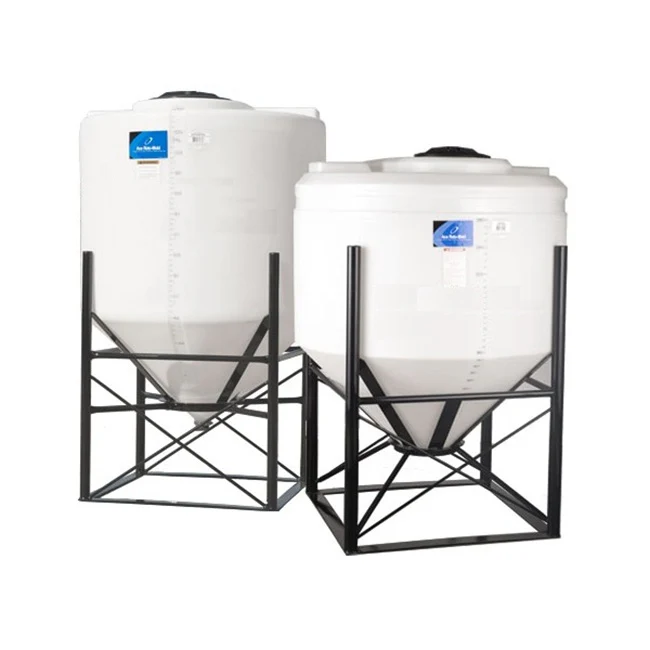

Pictured tanks are examples only, actual product appearance may vary. This listing is for flat top cone bottom tanks only; tank stands sold separately. Dome top cone bottom tanks are also available.

Features:

• Conical bottom for drainage
• Flat top for additional fitting installation or mounting locations
• UV inhibitors protect against direct sunlight
• Translucent with gallon indicators for quick view of liquid level



Specifications

MPN & Tech Sheet	Capacity (Gal) | Angle (Deg)	Weight (Lbs)	Dimensions (in)	Lid (in)	Fitting (in)	Specific Gravity
CB0150-36	150 | 45°	63	36 x 51	12	2	2.0
CB0200-42	200 | 45°	77	42 x 55	12	2	2.0
CB0500-52	500 | 45°	132	52 x 81	12	2	2.0
CB0750-52	750 | 45°	171	52 x 105	12	2	1.7

All large storage tanks must ship Motor Freight. Price shown does not include shipping.
