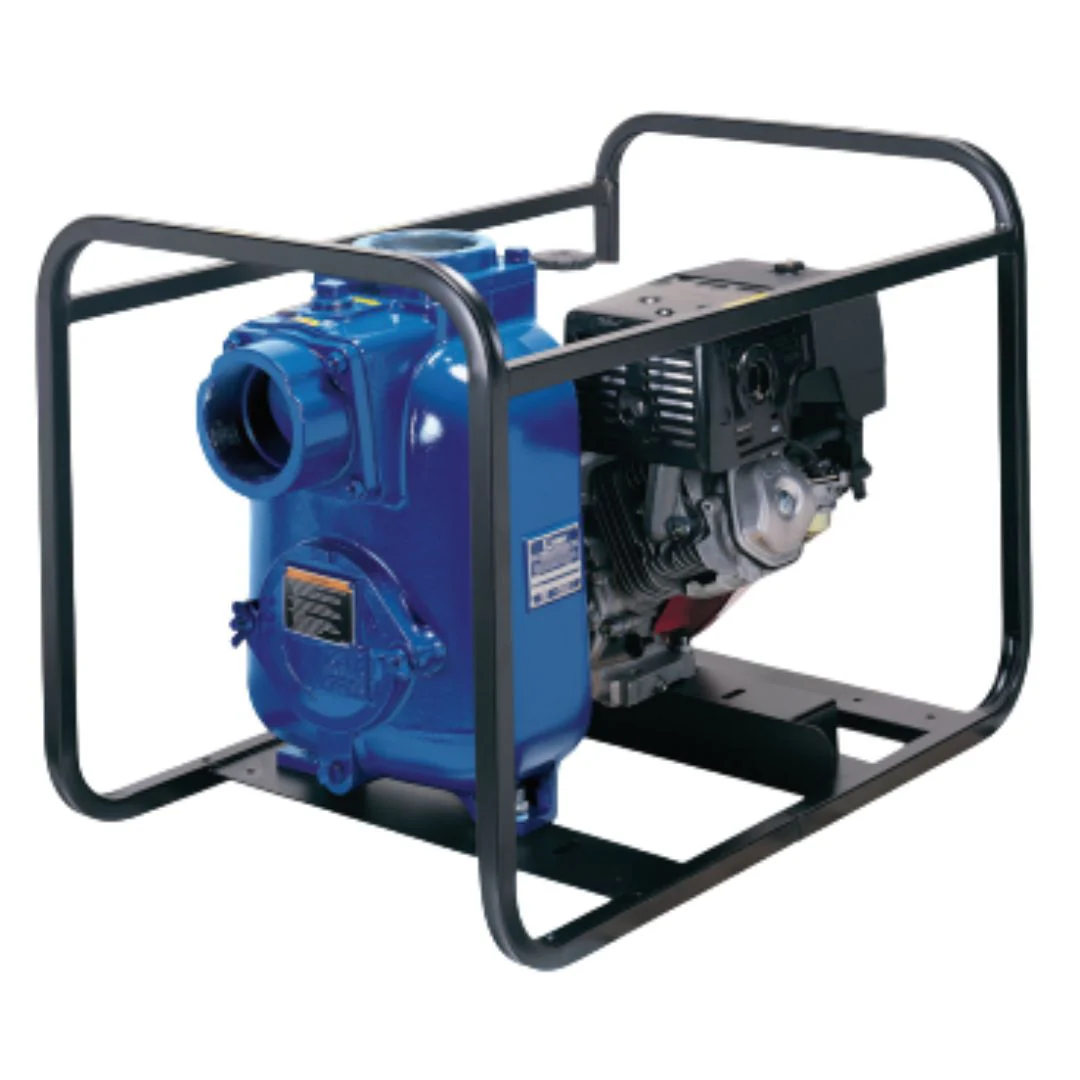

AMT 12D1-GX160 2 Inch Self Priming Trash Pump, 5 HP, Honda GX160 Motor

AMT 12D1-GX160 2 Inch Self Priming Trash Pump, 5 HP, Honda GX160 Motor

The Gorman-Rupp line of Engine Driven Trash pumps (12D1,13D1,14D1 Series) are designed for applications which require high flow efficiency and solids handling capability. Pumps are constructed of heavy duty sand cast aluminum components featuring replaceable ductile iron impeller and steel wearplate. Simple front cleanout design permits easy removal of trash and debris without disconnecting hoses. Pumps are available with Honda gasoline engines. All are furnished with heavy-duty steel roll cages, suction strainers and 90° discharge elbows.

Features:

• Cast Aluminum Construction

• 2˝ to 4˝ NPT Port Size

• Solids Handling to 2˝ Diameter

• Viton®/Silicon Carbide Mechanical Seals

• Self-Priming to 25 Ft.

• Available with 5 HP to 13 HP Honda Gasoline Engine

• Heavy Duty Steel Roll Frame

• Suction Strainer and 90° Discharge Elbow Included

Specifications:

• Motor: Honda GX160

• Motor HP: 5 HP
• Pump Body: Cast Aluminum
• Suction/Discharge: 2" NPT
• Seal Material: Viton

• Max Flow Rate: 180 GPM
• Max Working Pressure: 78 PSI
• Max Temperature: 160° F
• Tank Size: .95 Gallons / 3.5 Liters
• Run Time: 2 Hours
