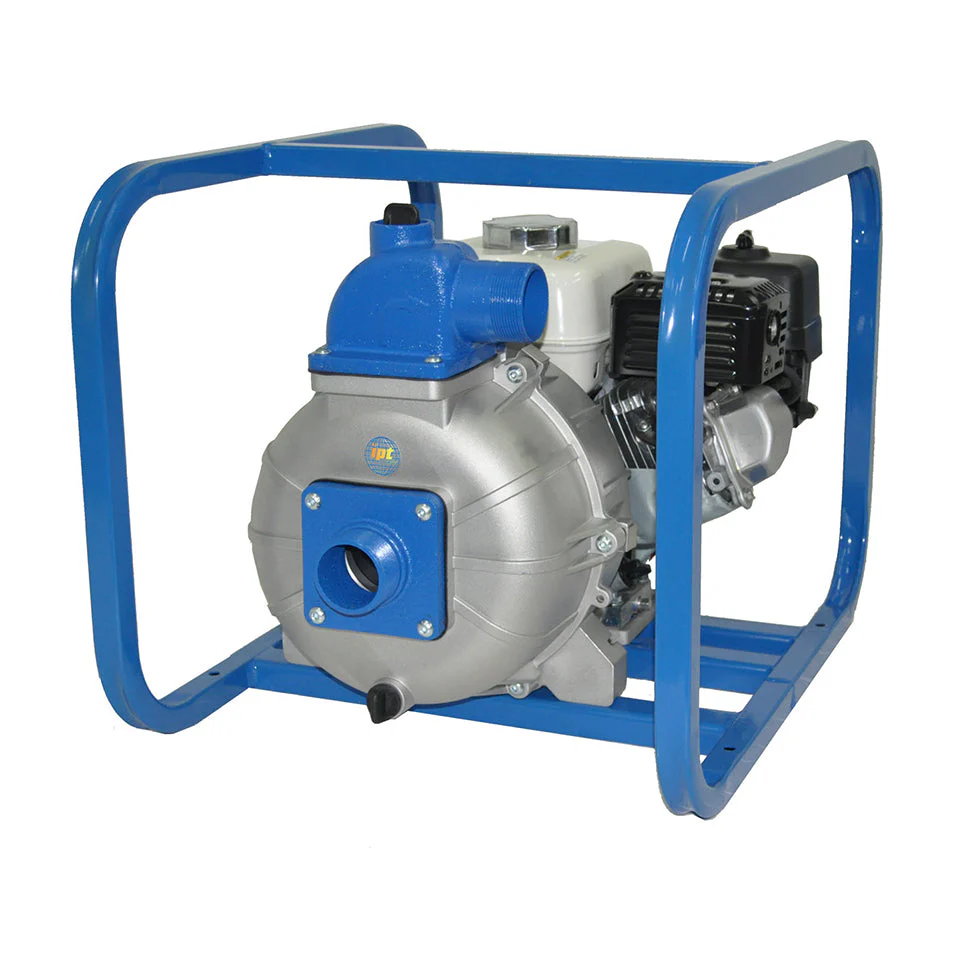

AMT 2S5XHR 2 Inch IPT Trash Pump, 5 HP, Honda GX160 Motor

AMT 2S5XHR 2 Inch IPT Trash Pump, 5 HP, Honda GX160 Motor

IPT Portable High Volume, Self-priming Centrifugal Trash pumps come standard with a cast iron impeller to resist abrasion and one tool serviceability for easy cleanout. All pumps feature aluminum housing, cast iron wearparts, built-in check valve, suction strainer and heavy duty steel roll frame. Heavy duty cast iron flanges with male NPT threads that rotates in 90° increments. Easy access fill plug on discharge port.

Features:

• Cast Aluminum with Cast Iron Wearparts

• Silicon Carbide/Viton® Mechanical Seal

• EPDM/EPR O-Rings Standard with Optional Viton®

• 2˝ or 3˝ Removable Male NPT Suction and Discharge Ports

• Discharge Rotates in 90° Increments

• Engine Options: Honda, LCT Storm Force Gasoline or Hatz Diesel Engines

• Easy Clean Out with One Tool Serviceability

• Maximum Solids Handling up to 1˝

• Maximum Flow up to 240 GPM

• Maximum Head up to 125 Ft.

• Self-Priming to 26 Ft.

• Wheel Kit Optional



Specifications:

• Motor: Honda GX160

• Motor HP: 5 HP
• Suction/Discharge: 2" NPT
• Pump Body: Cast Aluminum
• Seal Material: Viton

• Max Flow Rate: 240 GPM
• Max Temperature: 180° F
• Tank Size: .82 Gallons / 3.1 Liters
• Run Time: 2 Hours
