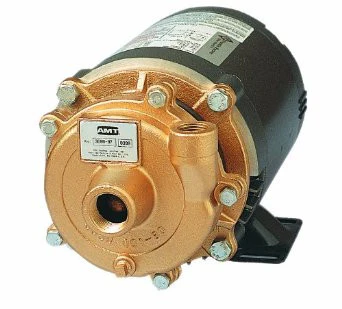

AMT 369A-97 Bronze 1-1/2 HP Small Straight Centrifugal Pump, 115/230 VAC

AMT STRAIGHT CENTRIFUGAL PUMPS

AMT Solids Handling End Suction Centrifugal pumps are designed for continuous-duty low pressure OEM, Industrial/Commercial and general service applications including circulation, chemical processing, liquid transfer, dirty water and cooling.

These durable and compact pumps are available in a variety of construction and seal materials to meet your specification. Pull-from-rear design for easy service without disturbing any piping.

Self-cleaning impeller prevents clogging and handles solids of 1/8" diameter. Pumps are close coupled to Totally Enclosed Fan Cooled (TEFC) motors. Pumps are not self-priming and require flooded suction

Straight Centrifugal Pumps:

• 300 Series Investment Cast Bronze with Stainless Steel Impeller Construction
• Viton® Mechanical Seal and O-Ring with Bronze Models
• Discharge Port Rotates in 90° Increments
• Self-Cleaning, Semi-Open Impeller
• Maximum Pressure 75 psi
• Maximum Temperature 200° F

 BRONZE MODEL 369A-97

• Power: 1-1/2 HP
• Voltage @60Hz: 115/230 VAC
• Inlet: 1-1/4"
• Outlet: 1"
• Frame Size: 56J
• Enclosure: TEFC
• Impeller Material: Stainless Steel
• Seal: Viton

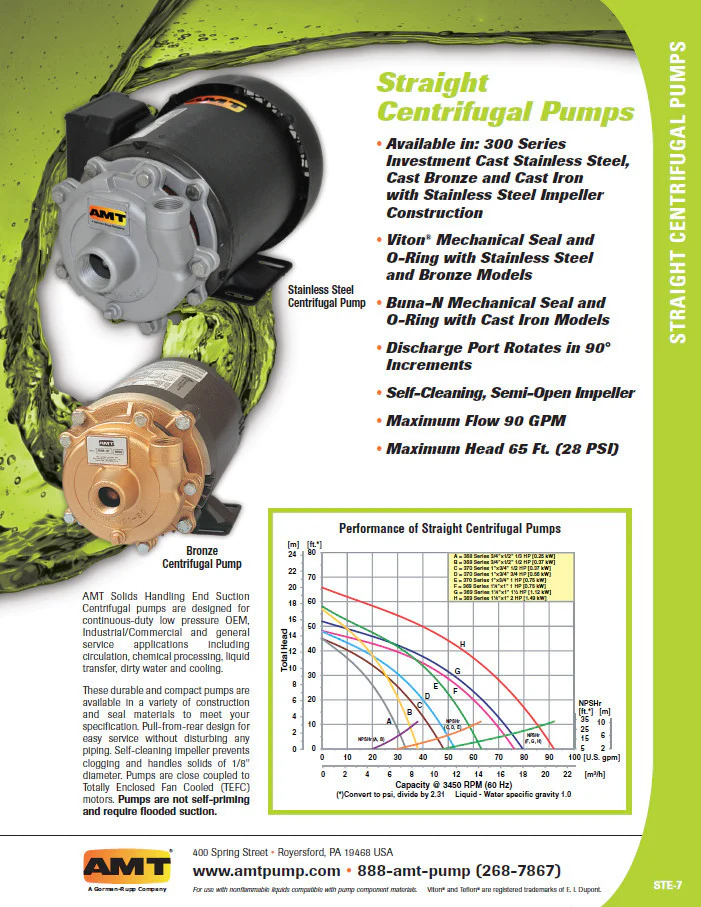

AMT Bronze Small Straight Centrifugal Pumps Data Sheet
