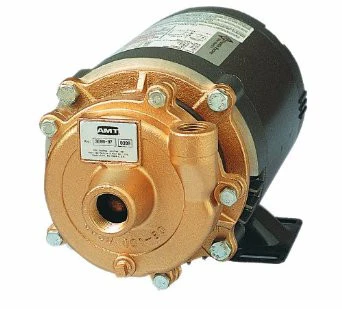

AMT 369B-97 Bronze 1-1/2 HP Small Straight Centrifugal Pump, 230/460 VAC

AMT STRAIGHT CENTRIFUGAL PUMPS

AMT Solids Handling End Suction Centrifugal pumps are designed for continuous-duty low pressure OEM, Industrial/Commercial and general service applications including circulation, chemical processing, liquid transfer, dirty water and cooling.

These durable and compact pumps are available in a variety of construction and seal materials to meet your specification. Pull-from-rear design for easy service without disturbing any piping.

Self-cleaning impeller prevents clogging and handles solids of 1/8" diameter. Pumps are close coupled to Totally Enclosed Fan Cooled (TEFC) 3 Phase motors. Pumps are not self-priming and require flooded suction

Straight Centrifugal Pumps:

• 300 Series Investment Cast Bronze with Stainless Steel Impeller Construction
• Viton® Mechanical Seal and O-Ring with Bronze Models
• Discharge Port Rotates in 90° Increments
• Self-Cleaning, Semi-Open Impeller
• Maximum Flow 90 GPM
• Maximum Head 65 Ft. (28 PSI)



BRONZE MODELS

• All models frame size 56J
• All models are TEFC enclosure type
• All models equipped with VITON seals

MODEL	HP	IMPELLER	VAC/60HZ	FL. AMP	INLET (IN. FNPT)	OUTLET (IN. FNPT)
368C-97	1/2	SS	230/460	3/2	3/4	1/2
370F-97	1/2	SS	230/460	3/2	1	3/4
370C-97	3/4	BRONZE	230/460	3/2	1	3/4
370D-97	1	BRONZE	230/460	4/2	1	3/4
369F-97	1	SS	230/460	4/2	1-1/4	1
369B-97	1-1/2	SS	230/460	5/3	1-1/4	1
369E-97	2	SS	230/460	6/3	1-1/4	1

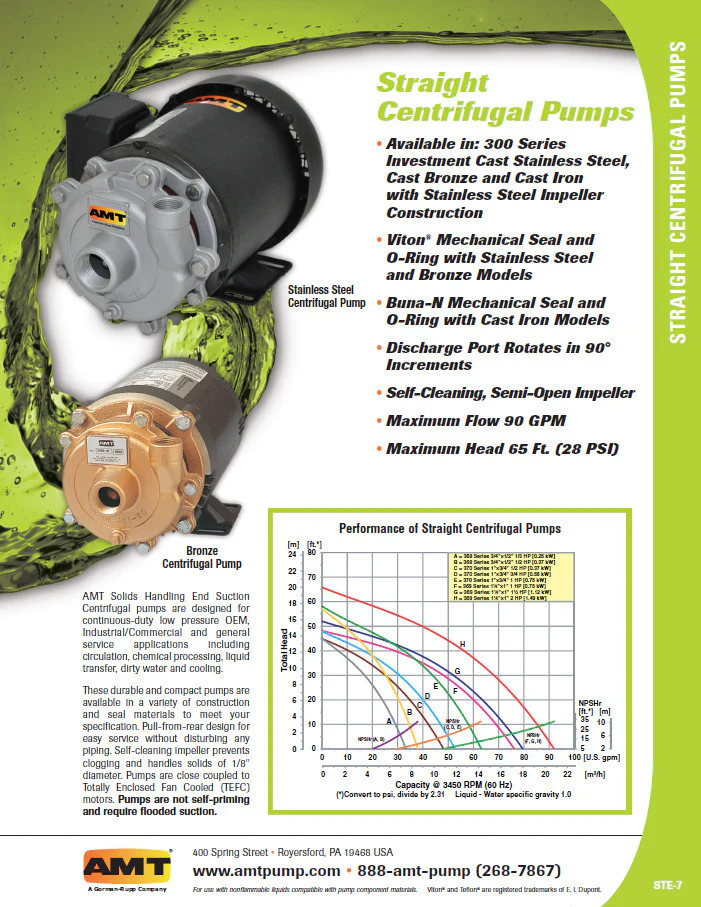

AMT Bronze Small Straight Centrifugal Pumps Data Sheet
