AMT 370D-95 Cast Iron 1 HP Small Straight Centrifugal Pump, 230/460 VAC

AMT STRAIGHT CENTRIFUGAL PUMPS

AMT Solids Handling End Suction Centrifugal pumps are designed for continuous-duty low pressure OEM, Industrial/Commercial and general service applications including circulation, chemical processing, liquid transfer, dirty water and cooling.

These durable and compact pumps are available in a variety of construction and seal materials to meet your specification. Pull-from-rear design for easy service without disturbing any piping.

Self-cleaning impeller prevents clogging and handles solids of 1/8" diameter. Pumps are close coupled to Totally Enclosed Fan Cooled (TEFC) 3 Phase motors. Pumps are not self-priming and require flooded suction

Straight Centrifugal Pumps:

• 300 Series Investment Cast Iron with Stainless Steel Impeller Construction
• Buna-N Mechanical Seal and O-Ring with Cast Iron Models
• Discharge Port Rotates in 90° Increments
• Self-Cleaning, Semi-Open Impeller
• Maximum Temperature: 180°F
• Maximum Working Pressure: 75 psi

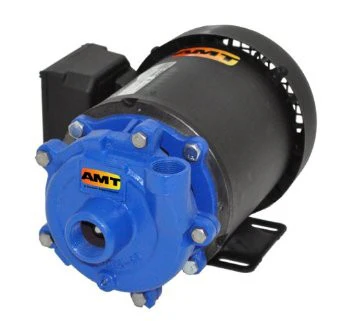

CAST IRON MODEL 370D-95

• HP: 1
• PHASE: 3
• TYPE: TEFC
• FRAME: 56J
• VAC/60Hz: 230/460
• INLET: 1 INCH FNPT
• OUTLET: 3/4 INCH FNPT
• MATERIAL: CAST IRON
• SEAL: BUNA-N
• IMPELLER: STAINLESS STEEL

Resources:

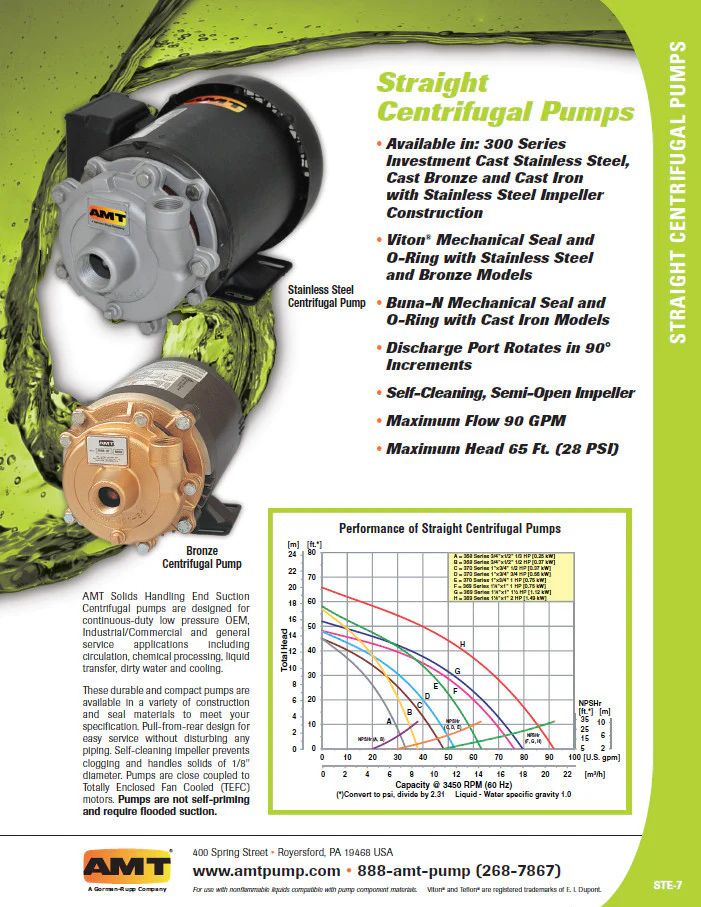

• AMT Small Straight Centrifugal Pump Datasheet
