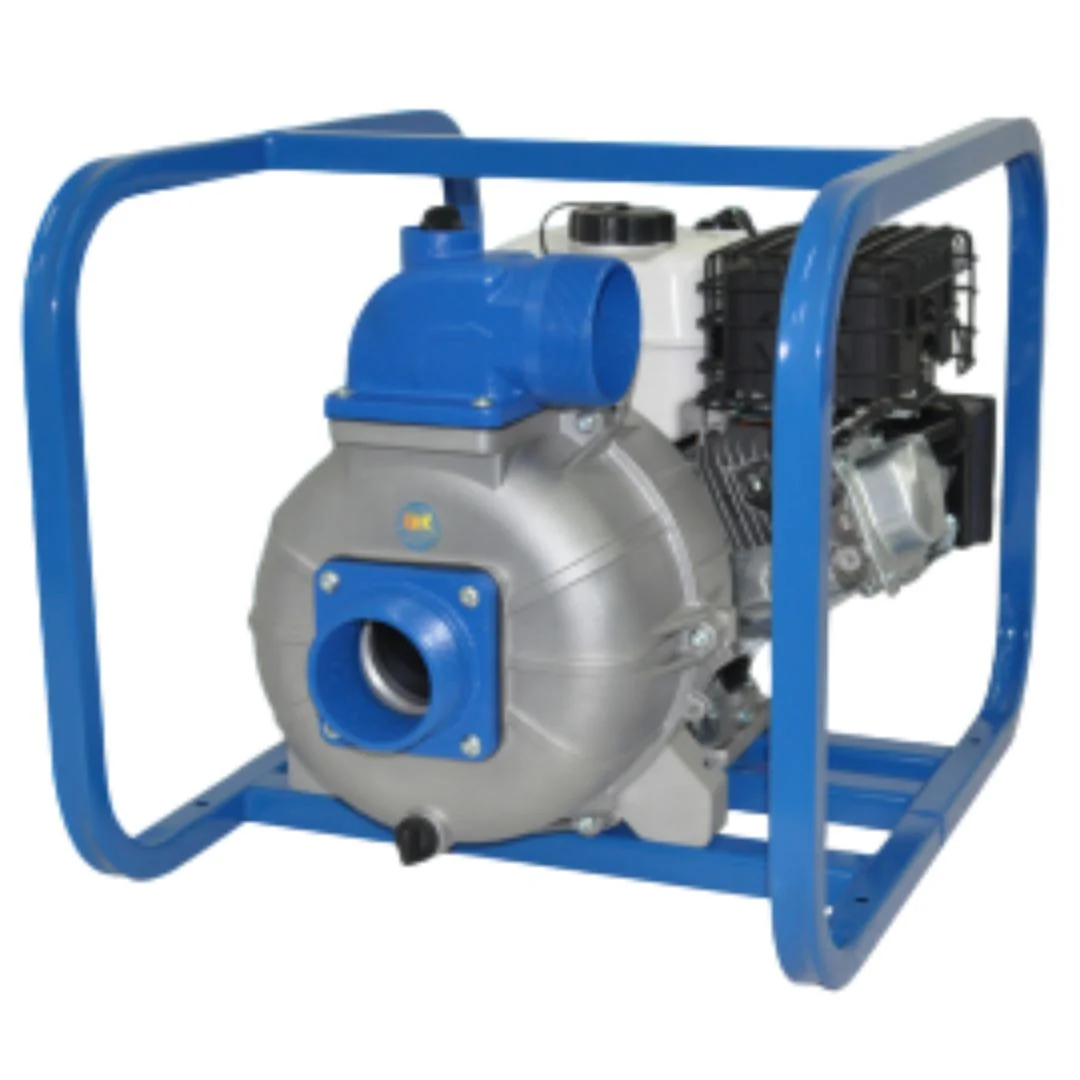

AMT 3S5XFR 3 Inch IPT Trash Pump, 5 HP, CRX 210CC Motor

AMT 3S5XFR 3 Inch IPT Trash Pump, 5 HP, CRX 210CC Motor



IPT Portable High Volume, Self-priming Centrifugal Trash pumps come standard with a cast iron impeller to resist abrasion and one tool serviceability for easy cleanout. All pumps feature aluminum housing, cast iron wearparts, built-in check valve, suction strainer and heavy duty steel roll frame. Heavy duty cast iron flanges with male NPT threads that rotates in 90° increments. Easy access fill plug on discharge port.

Features:

• Cast Aluminum with Cast Iron Wearparts

• Silicon Carbide/Viton® Mechanical Seal

• EPDM/EPR O-Rings Standard with Optional Viton®

• 2˝ or 3˝ Removable Male NPT Suction and Discharge Ports

• Discharge Rotates in 90° Increments

• Engine Options: Honda, LCT Storm Force Gasoline or Hatz Diesel Engines

• Easy Clean Out with One Tool Serviceability

• Maximum Solids Handling up to 1-1/4˝

• Maximum Flow up to 290 GPM

• Maximum Head up to 125 Ft.

• Self-Priming to 26 Ft.

• Wheel Kit Optional



Specifications:

• Motor: CRX 210CC

• Motor HP: 5 HP
• Suction/Discharge: 3" NPT
• Pump Body: Cast Aluminum
• Seal Material: Viton

• Max Flow Rate: 290 GPM
• Max Temperature: 180° F
• Tank Size: .87 Gallons / 3.3 Liters
• Run Time: 2 Hours



Resources:

Pump Datasheet

Owners Manual
