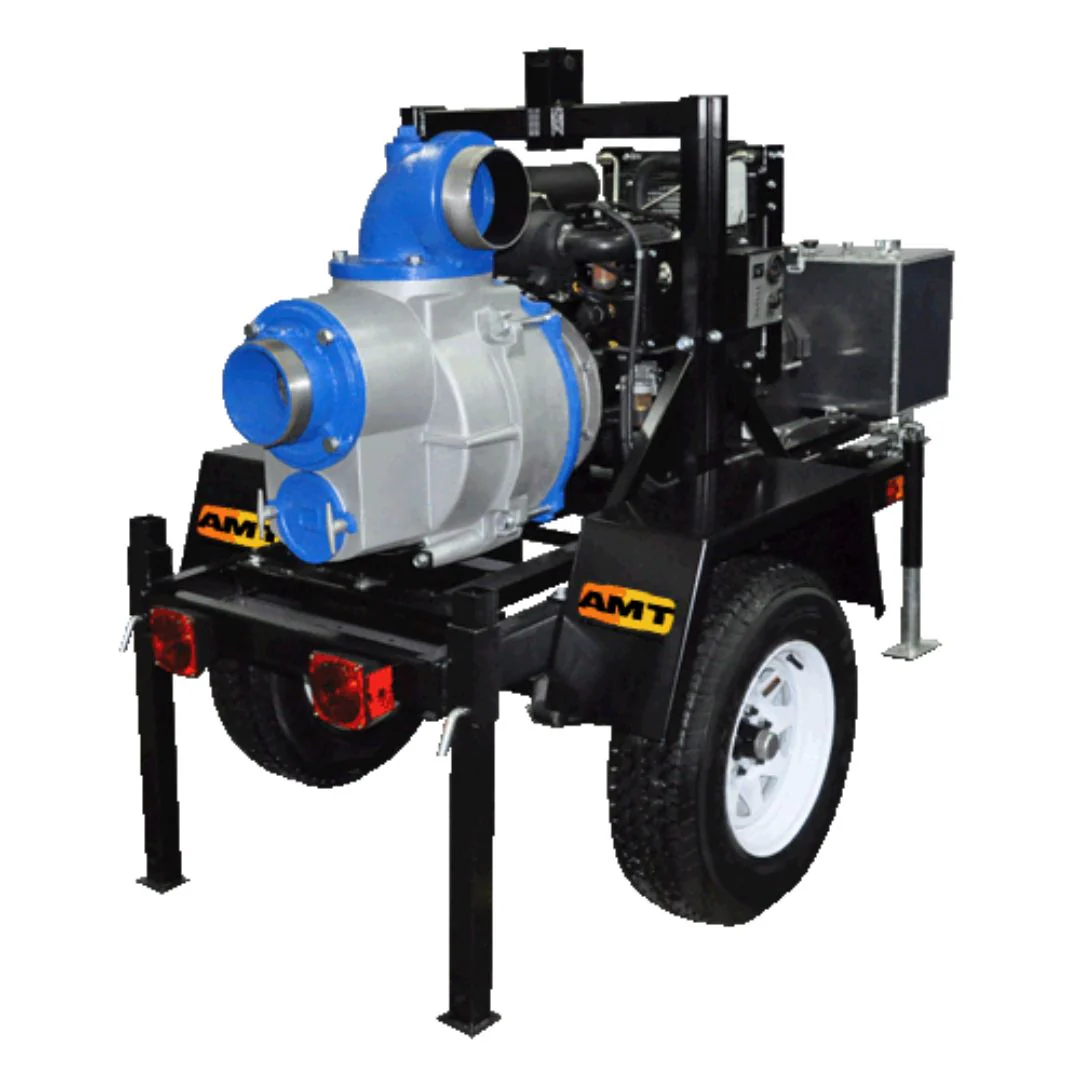

AMT 5588-D6 6 Inch Trash Pump, 23 HP, Kohler KDW1003 Diesel, Skid Mounted

AMT 5588-D6 6 Inch Trash Pump, 23 HP, Kohler KDW1003 Diesel, Skid Mounted

The AMT 6″ Engine Driven Trash Pump is designed for applications requiring high volume flow and solid/debris handling capabilities. Pump is constructed of heavy duty sand cast aluminum with cast iron and stainless steel internal parts for wear resistance and durability. Patented built-in slide mechanism features nylon and powder coated steel components that permit servicing, repairing and cleaning entire pump without removing hoses or pump components from trailer. Digital tachometer/hourmeter installed. Requires 12 Volt Battery: BCI Group 24, Minimum of 500 CCA (Cold Crank Amps) Battery Box Cables Setup for Automotive Post Type Connection.

Features:

• Cast Aluminum Casing and Adapter

• Cast Iron Seal Plate, Volute and Manifold

• Stainless Steel Impeller

• Silicon Carbide Mechanical Seal and Buna-N O-Rings and Check Valve

• 6˝ NPT Port Size

• Self-Priming to 20 Feet

• Engine Options: Honda V-Twin or Kohler Diesel Engine

• Maximum Solids Handling 3˝

• Patented Unique Slide Mechanism Permits Complete Service of Pump Without Removing Hoses or Removing Pump Components from Trailer

• Seal Wash Feature for Extended Seal Life

Specifications:

• Motor: Kohler KDW1003 Diesel

• Motor HP: 23 HP
• Pump Body: Cast Aluminum
• Suction/Discharge: 6" NPT
• Seal Material: Viton

• Max Flow Rate: 400 GPM
• Max Working Pressure: 78 PSI
• Max Temperature: 160° F
• Tank Size: 20 Gallons / 75.7 Liters
• Run Time: 12 Hours



Resources:

Pump Datasheet

Owners Manual
