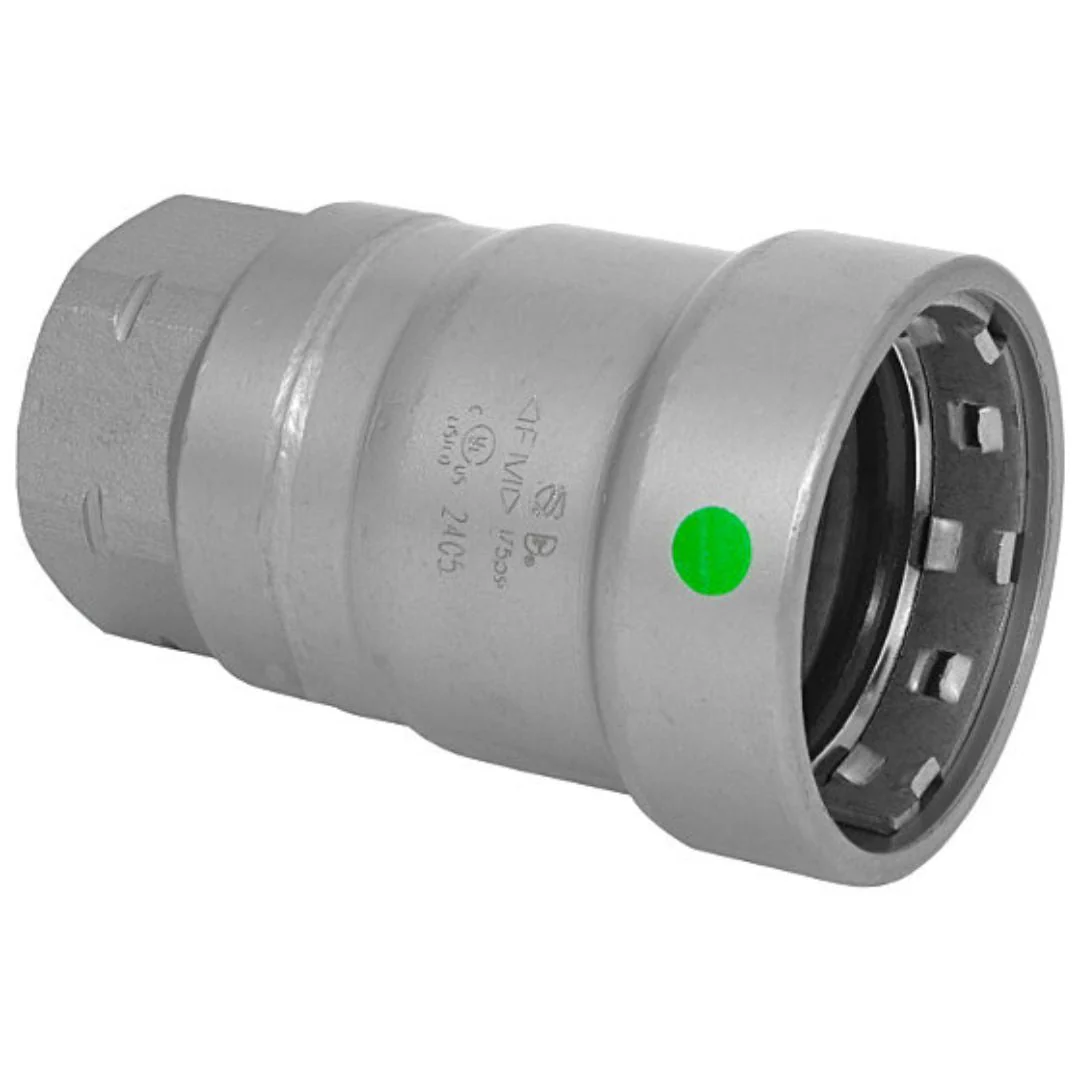

BMI 1-1/4 Inch X 1/2 Inch Carbon Steel Press X FIPS Reducing Adapter

BMI 1-1/4 Inch X 1/2 Inch Carbon Steel Press X FIPS Reducing Adapter

Carbon steel Press X FIPS adapter, used to connect pipe section to a smaller pipe with a male end.

Specifications:

• Body: Carbon Steel
• O-Ring: EPDM
• Washer: Copper C12200
• Grip Ring: S.S. 420
• Working Pressure: 200 psi max

• Working Temperature: 0-250°F

Applications:

• Hydronic heating (w/ 50% glycol)

• Chilled water

• Compressed air (200 psi max.)

• Non-medical gases (140 psi max.)

• Water or dry fire sprinkler (175 psi max.)

• Low pressure steam (15 psi max.)



Certifications:

• ASTM F3226

• ANSI/CAN/Z1117-22

• UPC. UMC and National Plumbing Code

• ANSI/CAN/UL 213

• FM Class 1920

• CRN

• ISO9001. ISO14001



BMI Carbon Press Technical Information
