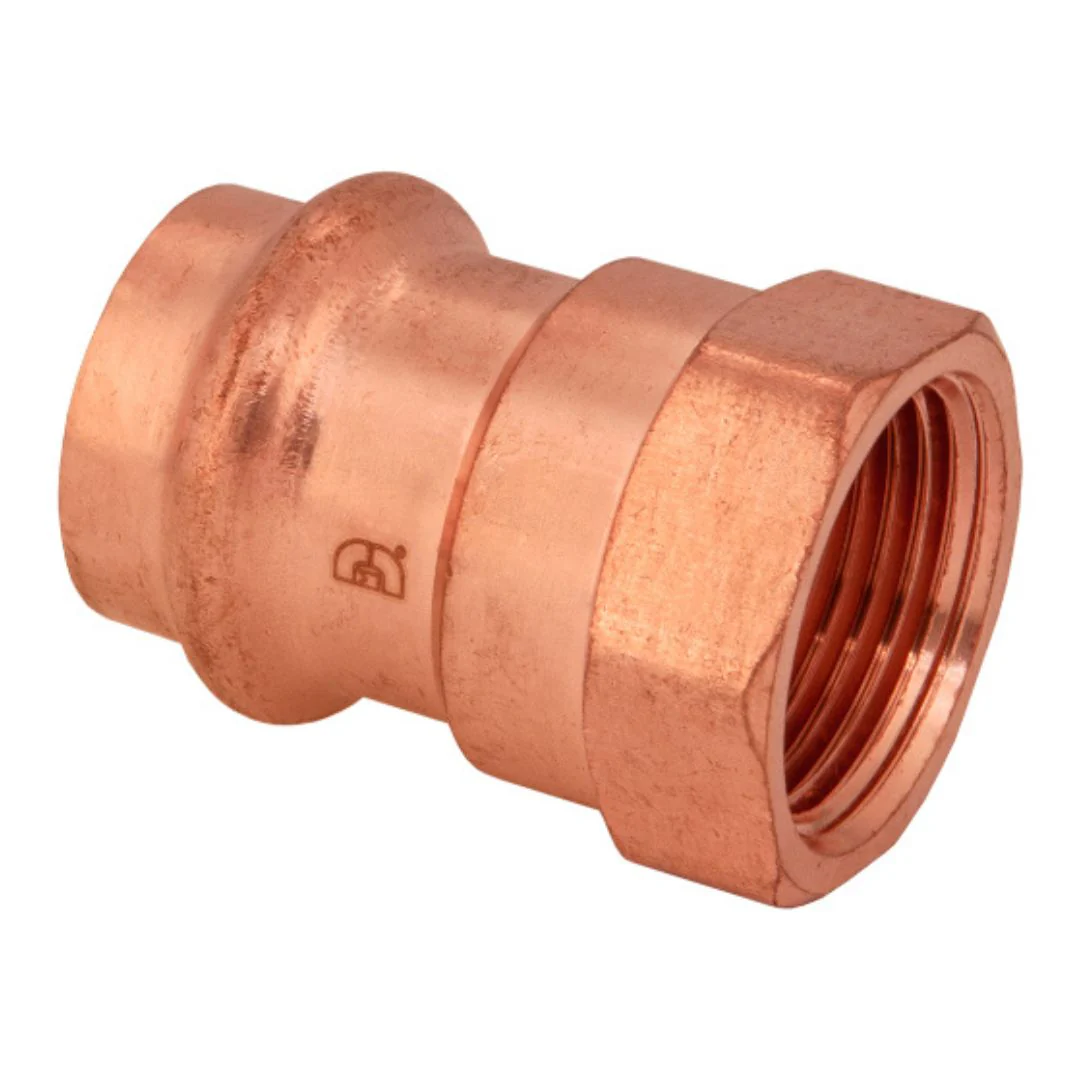

BMI 1 X 1-1/4 Inch Copper Press X FIPS Reducing Adapter - Carton of 10

BMI 1 X 1-1/4 Inch Copper Press X FIPS Reducing Adapter - Carton of 10

Copper press x FIPS reducing adapter. Used to add a reduced size female threaded end to a section of pipe. Fitting has a press connection on one end and a female threaded connection on the other. Compatible with all major brands pressing tools.

Specifications:

• Body: Copper
• Working Pressure: 200 psi max

• Max Test Pressure: 600 PSI Max
• Low Pressure Steam: 15 PSI Max
• Working Temperature: 0-250°F

Applications:

• Potable Water

• Hydronic Heating (w/Glycol)

• Chilled Water

• Compressed Air (200 psi max.)

• Non-Medical Gases (140 psi maximum)

• Low Pressure Steam (15 psi maximum)



Certifications:

• IAPMO: IAPMO PS 117, Uniform Plumbing Code (UPC)

• ICC-ES: ASME B16.51

• NSF: NSF/ANSI 61, NSF/ANSI 372 (lead free)

• BMEC: Ontario 22-01-397



Resources:

BMI Copper Press Fitting Technical Specifications

BMI Copper Press Fitting Installation Instructions
