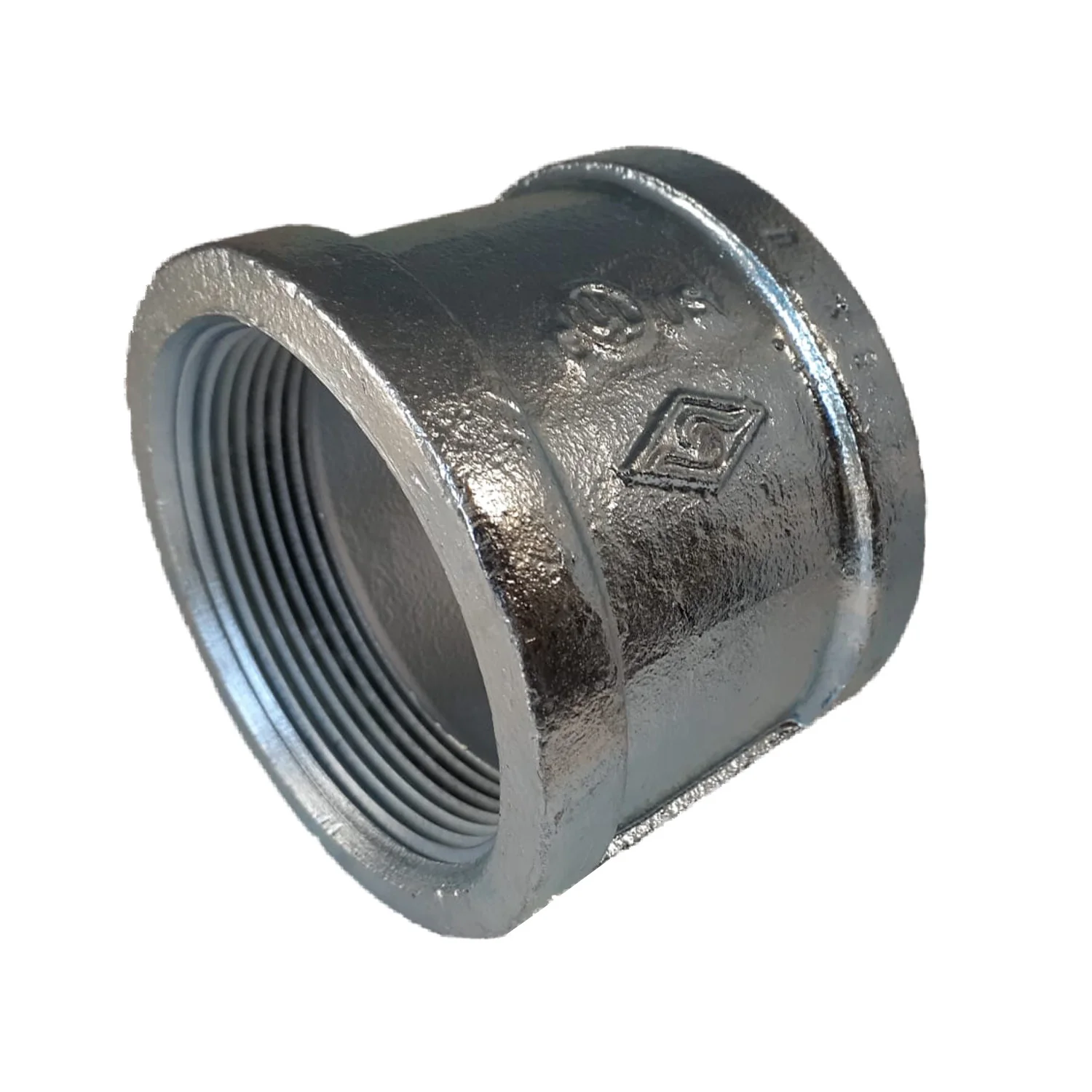

BMI 3/4 Inch NPT Galvanized Straight Coupling, 150#, UL/FM
3/4" NPT BMI GALVANIZED STRAIGHT GALVANIZED COUPLING
Galvanized finish helps resist rust in water, air and steam applications.
| Size (Inches) | 0.75" |
| Material Type | Galvanized Malleable Iron |
| Product Type | Coupling |
| Pressure Rating | Class #150 |
| End Connections | Female NPT Thread |
Certifications:
UL/cUL
FM
Certified Lead Free
ISO9001
CRN
Specifications:
Materials: ASTM A197 / A197M
Dimensions: Fittings ASME B16.3, B16.14, Unions B16.39
Threads: ASME B1.20.1, ISO 7-1
Please note that although products are designed using the ASME B16.3 standard which has a pressure rating of 300 psi, FM approval is only for up to 175 psi and there are no temperature range requirements specified by the FM1920 standard.
Original: $1.49
-65%$1.49
$0.52
Description
3/4" NPT BMI GALVANIZED STRAIGHT GALVANIZED COUPLING
Galvanized finish helps resist rust in water, air and steam applications.
| Size (Inches) | 0.75" |
| Material Type | Galvanized Malleable Iron |
| Product Type | Coupling |
| Pressure Rating | Class #150 |
| End Connections | Female NPT Thread |
Certifications:
UL/cUL
FM
Certified Lead Free
ISO9001
CRN
Specifications:
Materials: ASTM A197 / A197M
Dimensions: Fittings ASME B16.3, B16.14, Unions B16.39
Threads: ASME B1.20.1, ISO 7-1
Please note that although products are designed using the ASME B16.3 standard which has a pressure rating of 300 psi, FM approval is only for up to 175 psi and there are no temperature range requirements specified by the FM1920 standard.
