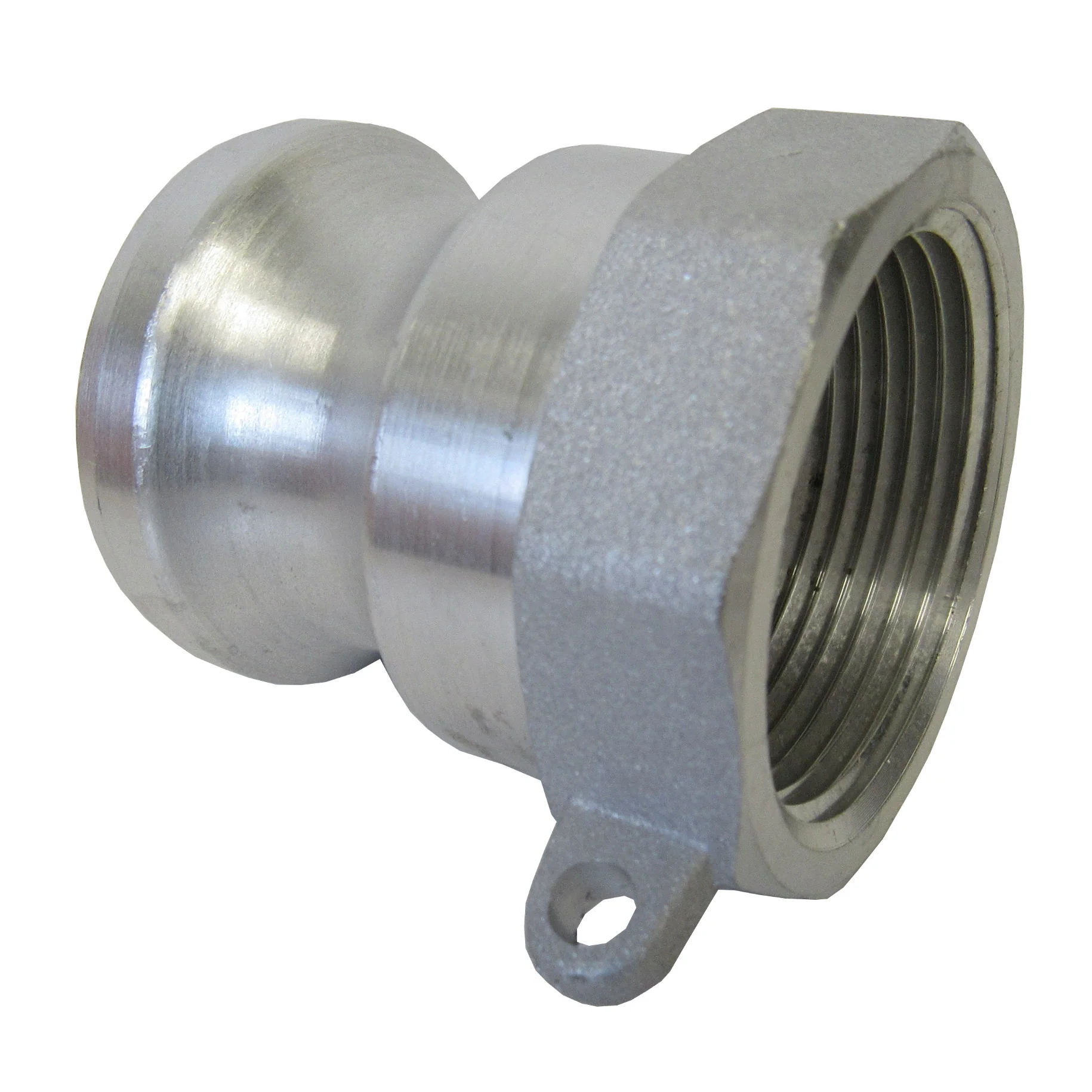

6 Inch Aluminum Cam & Groove Fitting, A600 Male Camlock X Female NPT Thread

CAM & GROOVE FITTING, ALUMINUM MALE ADAPTER/ FEMALE NPT

Cam-locking NPT female provides leak-tight connection to male cam and groove-style fitting

• Female NPT threaded connection x Male Adapter

• Aluminum for strength and resistance to abrasion, corrosion, and chemicals.

• Coupling Type: "A" Quick Disconnect
• Maximum operating pressure (@70° F) :
  3/4 inch - 2 inch : 250 psi
  3 inch - 4 inch : 150 psi
  6 inch : 75 psi
• Maximum Temperature: 185° F


Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Pressure rating recommendations are based on the use of mating fittings at ambient temperature 70°F with a standard seal installed.

Cam locks are suitable for transfer of water and compatible chemicals/vapors. PRM is in no way is responsible for the selection, suitability of, nor the material compatibility of materials being pumped through the fittings.

PRM is expressly not responsible for all installations and any damages due to leaks, ruptures, bursts, explosions or other damages. Damages limited to only the replacement of the defective items. Final decision on warranty is at the sole discretion of PRM Filtration Management.
