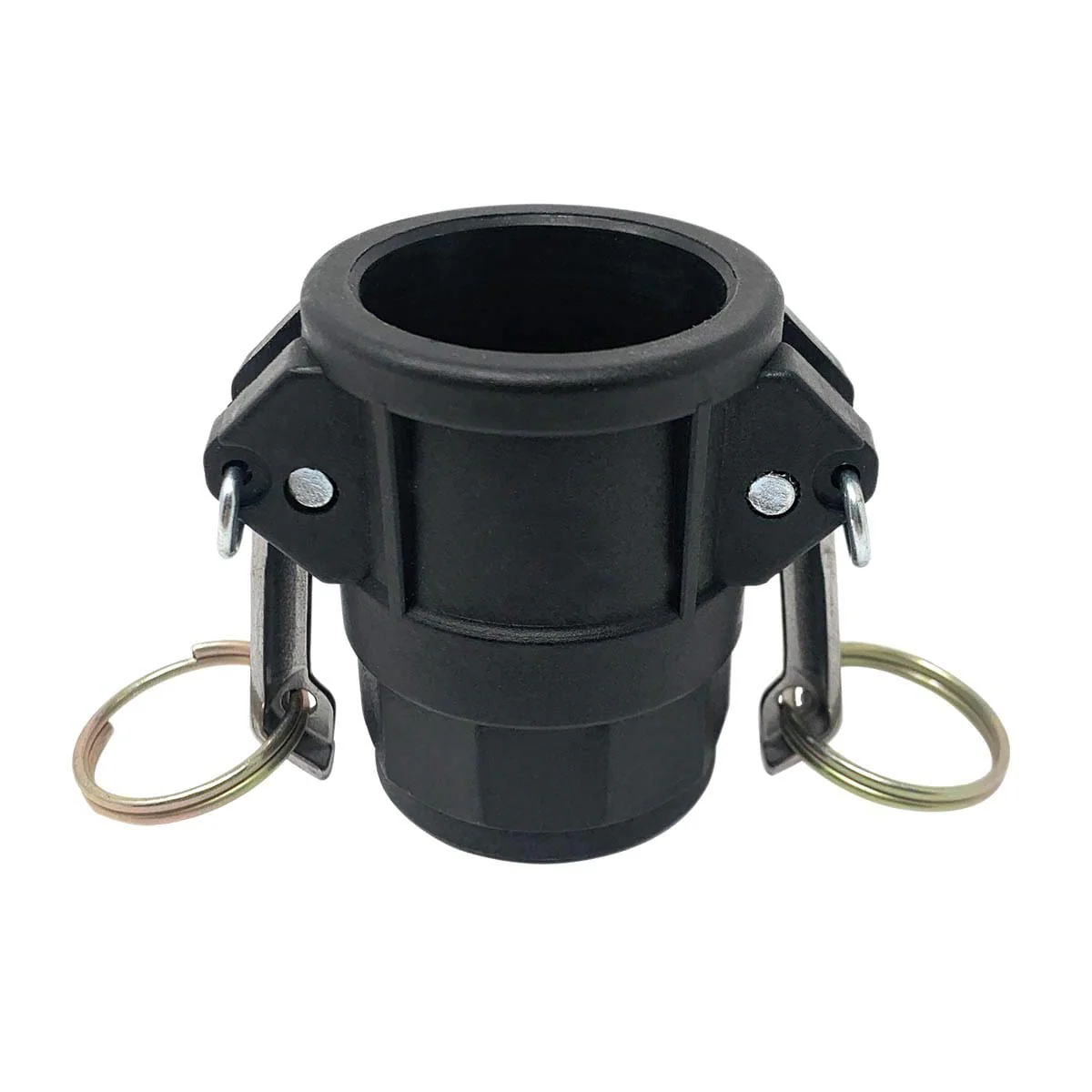

D075 Polypropylene Cam & Groove Fitting, 3/4 Inch Female Camlock X Female NPT Thread

FEMALE CAM LOCK COUPLER / FEMALE NPT

• Cam-locking female coupler for connecting two pipes or hoses
• Female cam coupler on one end for connecting to a male adapter and female NPT threads on the other for connecting to a male NPT connection
• Polypropylene for resistance to most chemicals, dimensional stability, and sterilization
• Sizes: 3/4", 1", 1-1/4", 2"
• Maximum operating pressure: 125 psi
• Maximum Temperature: 185° F
• NBR gaskets for resistance to weathering, ozone, UV, electricity, oils, water, steam and some solvents.

This cam and groove fitting is suitable for use in commercial or industrial flow systems, such as water transport and treatment, waste management, and in petroleum systems, among others.

Safety Notes:
Under no circumstances should cam and groove couplings be used for compressed air or steam service!

Pressure rating recommendations are based on the use of mating fittings at ambient temperature 70°F with a standard seal installed.

Cam locks are suitable for transfer of water and compatible chemicals/vapors. PRM is in no way is responsible for the selection, suitability of, nor the material compatibility of materials being pumped through the fittings.

PRM is expressly not responsible for all installations and any damages due to leaks, ruptures, bursts, explosions or other damages. Damages limited to only the replacement of the defective items. Final decision on warranty is at the sole discretion of PRM Filtration Management.
