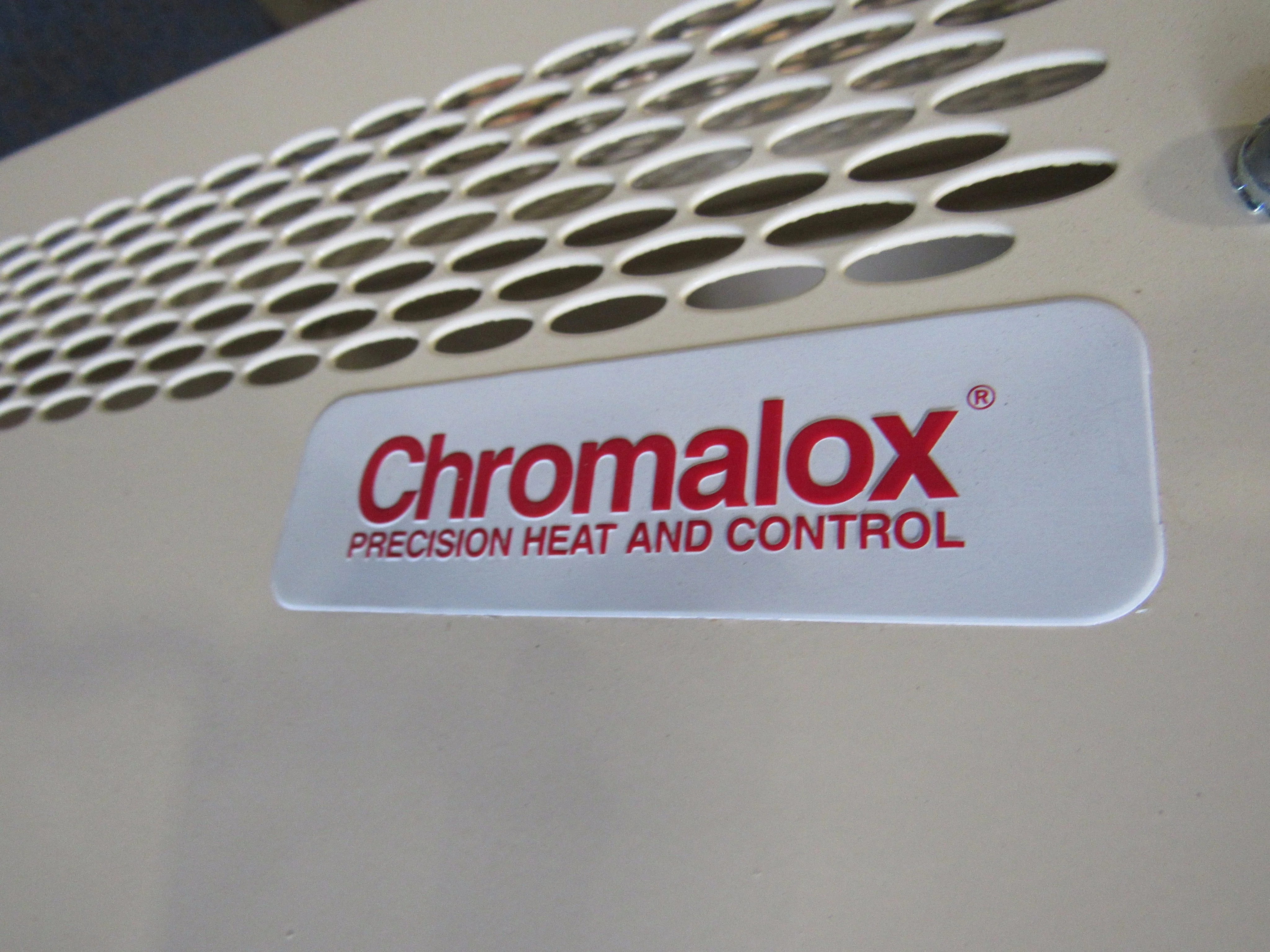

Chromalox Convection Heater CVEP-C-18-81-00-00 For Hazardous Locations, 208VAC, 1800W

Chromalox Convection Heater CVEP-C-18-81-00-00 For Hazardous Locations, 208VAC, 1800W

The Chromalox CVEP convection heater is designed and manufactured to provide a rugged, corrosion-resistant heat source for areas where volatile flammable liquids, gases or vapors are present.

All basic models without controls are UL listed and CSA certified for use in areas designated as Class 1, Division 1 or 2 Group B, C or D locations.

Heavy Duty, Corrosion Resistant Housing constructed of polyester powder coated 16 Gauge Steel.

High Quality, Long Life Heating Element - Sealed, heavy duty, low watt-density high grade resistance wire in MgO core. Element is inserted in copper and aluminum fin tube assembly, designed for low temperatures and long life.

Hazardous Location Junction Boxes included for conduit entry and ease of power wiring.

Sloped Top Cabinet Ensures Maximum Ventilation by preventing objects from being set on top which could restrict airflow.

Easily Mounted with integral mounting brackets provided for wall installation.

CVEP Convection Heaters Datasheet

CAT.#: CVEP-C-18-81-00-00 (NO THERMOSTAT)

MFR PART#: 304647263

PCN# 028767

PRM PART#: ELXPHTCVEP18810000

VOLTAGE: 208VAC

WATTS: 1800W

PHASE: SINGLE

AMPS: 8.7A

BTU: 6,156

OPERATING TEMPERATURE: 536F/280C

OPERATING TEMPERATURE CODE: T2A

DIMENSIONS: 34L X 20H X 9W / IN.

SHIPPING WT. 50 LBS.

Hazardous Location Convection Heater

● UL Listed and CSA Certified for Class 1, Division 1 or 2, Group B, C and D Environments

APPLICATIONS:

● Petroleum Refineries, Gasoline Storage and Dispensing Areas

● Industrial Areas Using Flammable Liquids in Dip Tanks

● Petroleum Refineries

● Dry Cleaning Plants

● Utility and Natural Gas Plants

● Aircraft Hangers/Fueling Areas

● Solvent Extraction Plants
