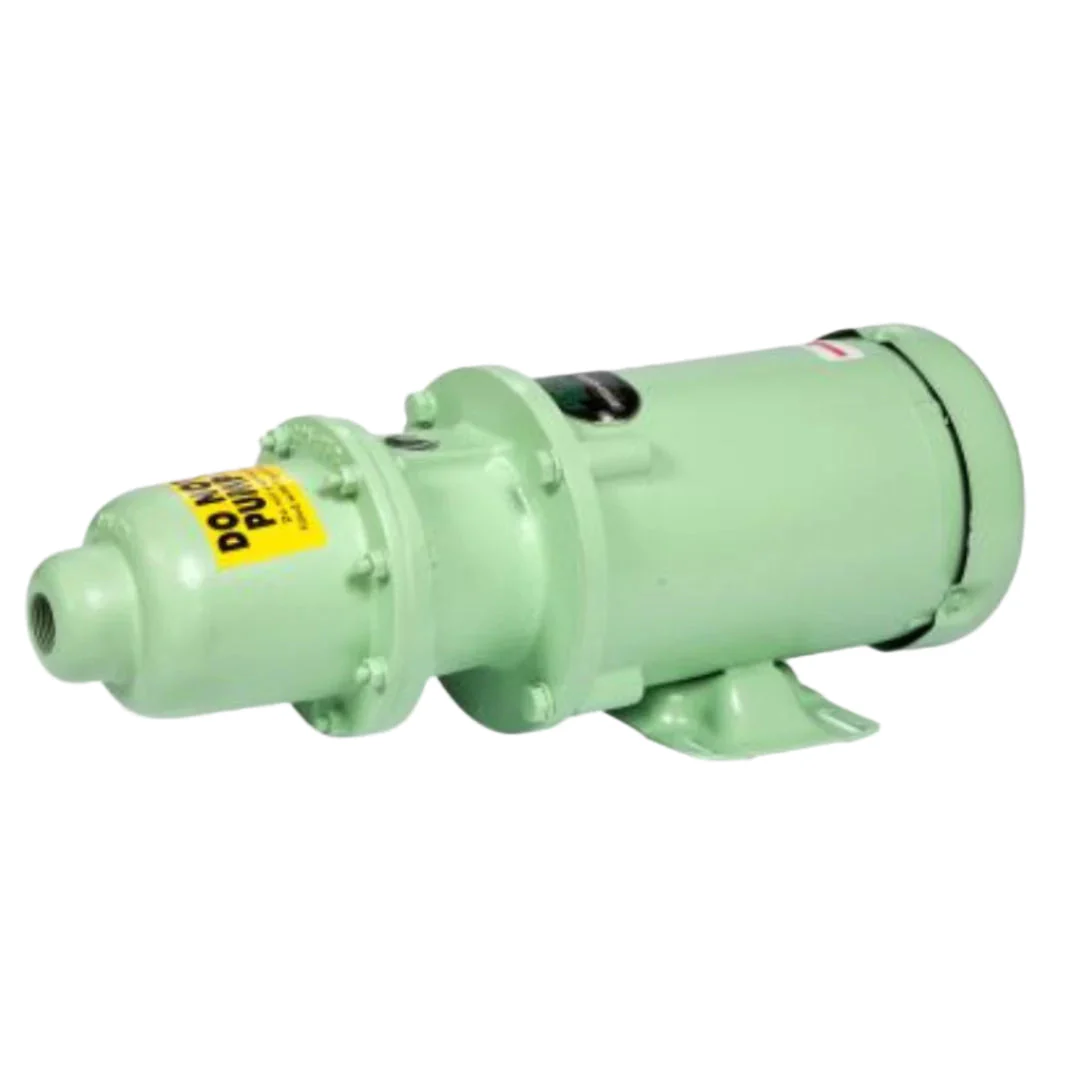

Continental CPM44 Threaded Single Phase Progressive Cavity Pump - 3/4 HP Motor

Continental CPM44 Threaded Single Phase Progressive Cavity Pump

The CPM Model is similar to the CP, except it is a closed coupled type pump that is driven by a Continental spec. motor that is directly bolted to the pump.

The CPM Model has a mechanical seal for its sealing option, threaded connections and a single phase spec motor. This model is also constructed with horizontal suction housing.

Rapid deterioration of the stator can happen as a result of the pump operating without fluid. DO NOT RUN DRY.

Features:

• Only One Moving Part
• Low Cost
• Compact
• Small Mounting “Foot Print”
• Light Duty Applications
• Various Motor and Drive Combinations

Specifications:

• Pump Frame Size: CP44
• Motor: 3/4 hp motor, Single phase TEFC
• Inlet Suction Size: 3/4 in. NPT
• Outlet Discharge Size: 3/4 in. NPT
• Body Casting Material Options Cast Iron
• Pump Rotor Material: Chrome Plated Stainless Steel
• Stator Material Options: Buna Nitrile, Viton, EPDM
• Seal Material Options: Mechanical
• Pump Motor Options: Varies
• Flowrate: 2.3 - 15 GPM
• Pressure: 0 - 50 PSI
• Weights: 48 lbs



Resources:

Continental Pump Guide

CPM Pump Assembly

CP Pump Performance Data

CP44 Pump Curves
