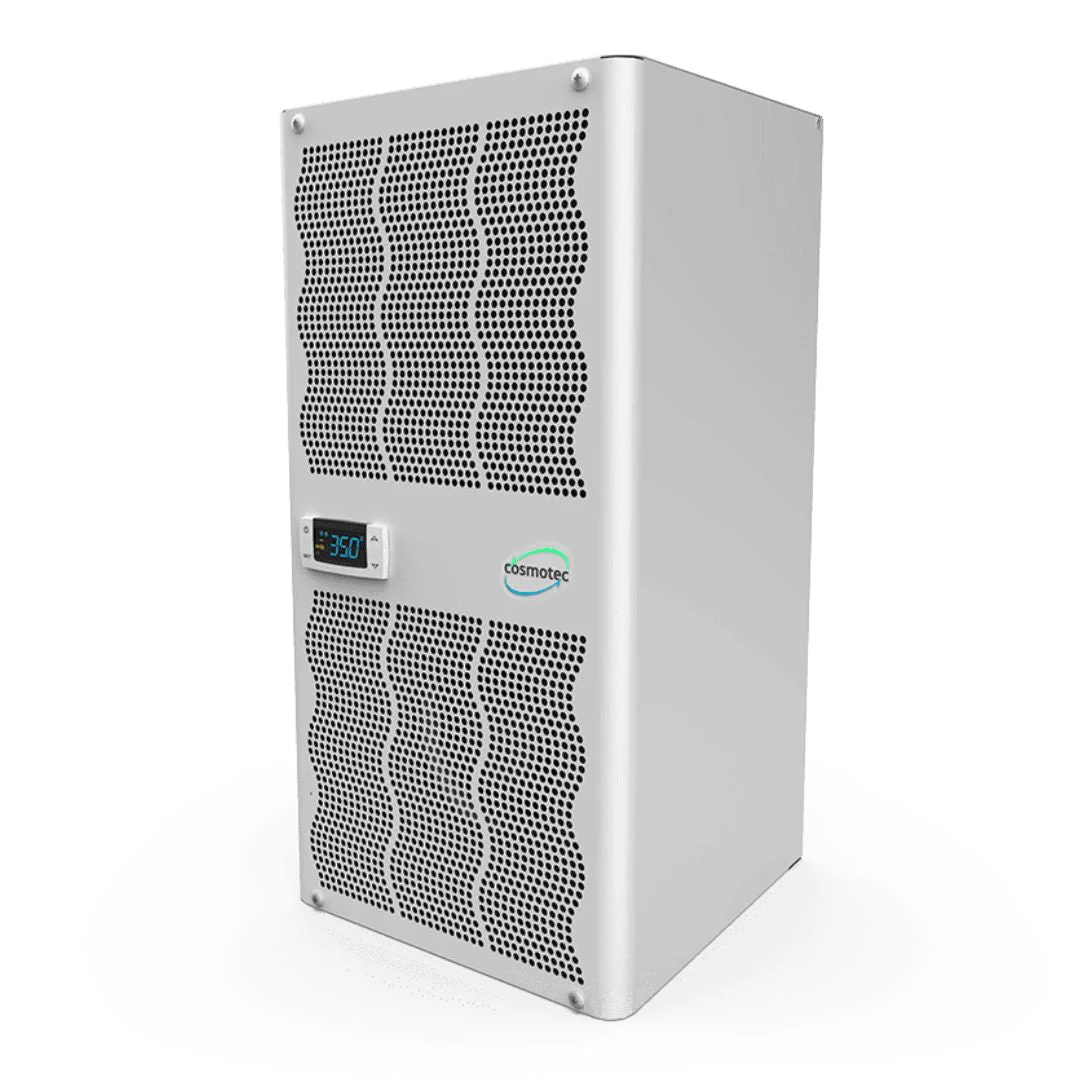

CVE40 Protherm Air conditioner

CVE40 Protherm Air conditioner

Protherm CVE indoor air conditioners for control panels and electrical cabinets offer maximum efficiency while remaining compact, robust and reliable. SEM (Smart Energy Management) and SEM2 logics provide energy savings of up to 23%, combined with
an increase in the cooling power of the air conditioner. The micro-channel coil of the Protherm air conditioners, which is thinner than traditional coils, provides significant reduction in pressure drops and a greater air flow rate on the condenser, with a consequent reduction in power consumption.

The cooling of electrical panels or cabinets is essential in any application to ensure the proper functioning of internal components and production processes, preventing and avoiding production and/or distribution downtime.

Features:

• Cooling Capacity : 360-5600 W

• CVE (07/15/25)00S semi-flush mounting option

• Electronic Board XCB + display

• Certifications: CE, UL Listed, EAC

• Sequencing and Modbus (with specific Accessories)

• Condensate dissipator available starting from CVE11

• Quick connections (CE version, except CVE03)

• μchannel condenser (from CVE/CVO11 + CVE0700S)

• General alarm and remote control contacts



Specifications:

Feature	Condition / Standard	M.U.	CVE40U12208000	CVE40U12628000
UL Listed			✅	✅
Rated Voltage		V, ~	230, 1	400, 3 / 460, 3
Nominal Frequency		Hz	50 / 60	50 / 60
Cooling Capacity	L35L35	W	-- / 4100	-- / 4050
Cooling Capacity	L35L50	W	-- / 3300	-- / 3260
Power Consumption	L35L50	W	-- / 1850	-- / 1840
Current Consumption	CE, L35L35	A	7.3 / 7.3	2.8 / 3.1
Current Consumption	UL, L45L55	A	-- / 8.3	-- / 5.26
Start-up Current	CE	A	36	19
Internal Temp.	min/max	°C	+25 / +45	+25 / +45
External Temp.	min/max	°C	+20 / +55	+20 / +55
Protection Degree	CE	IP	54	54
Protection Degree	UL	Type	-- / 12	-- / 12
Sound Pressure		dB(A)	67	67
Height (A)		mm	1219	1219
Width (B)		mm	514	514
Depth (C)		mm	347	347
Weight		kg	80	85
