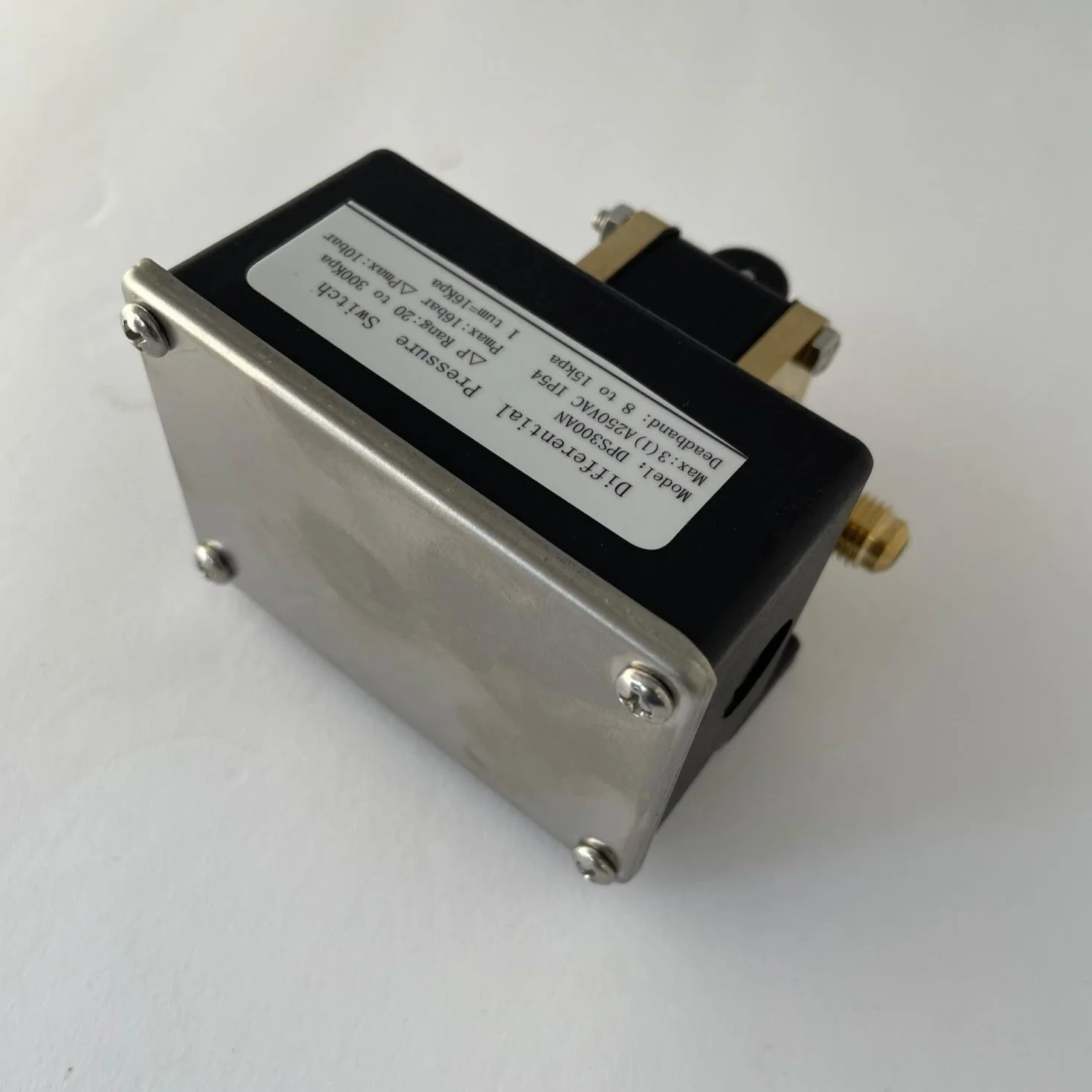

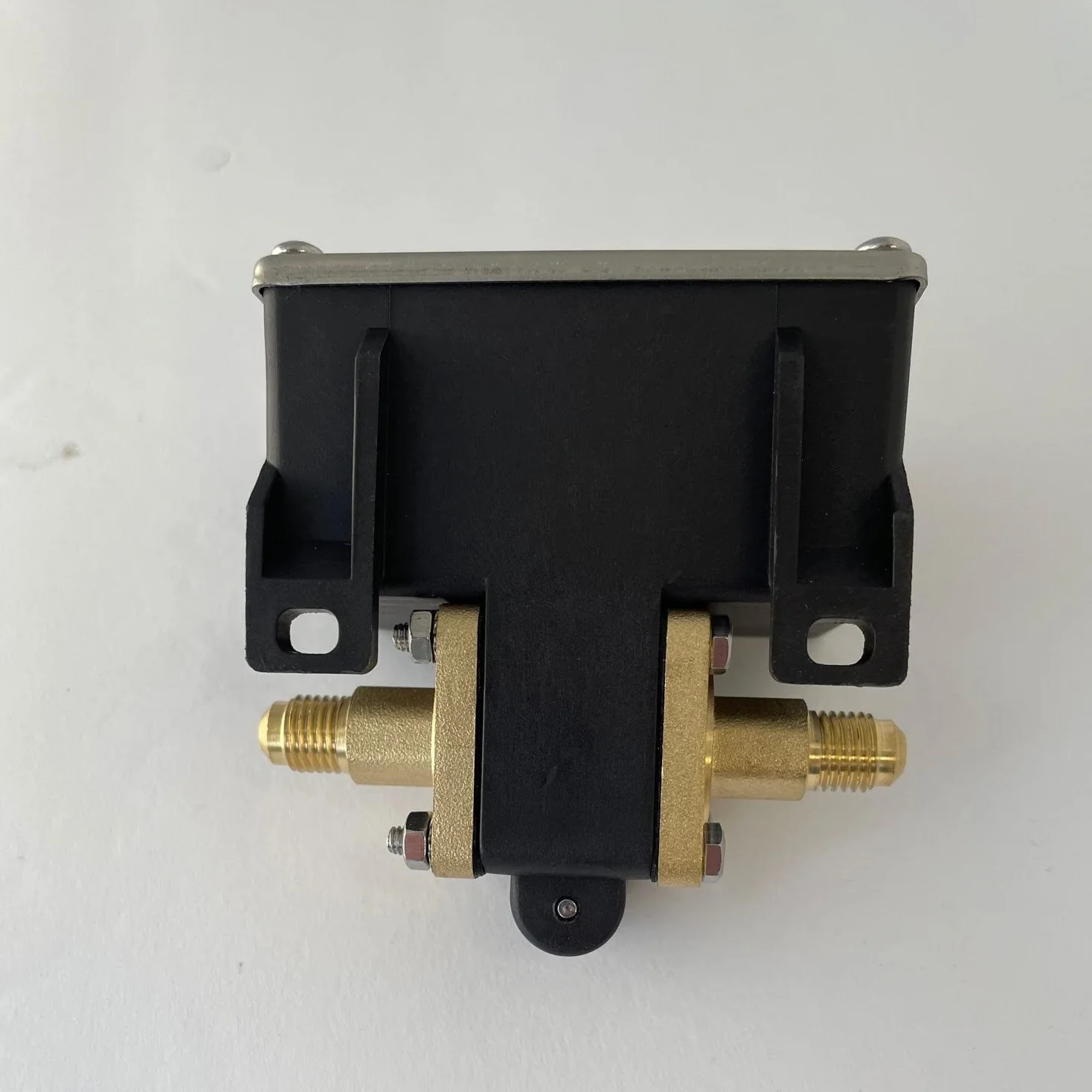

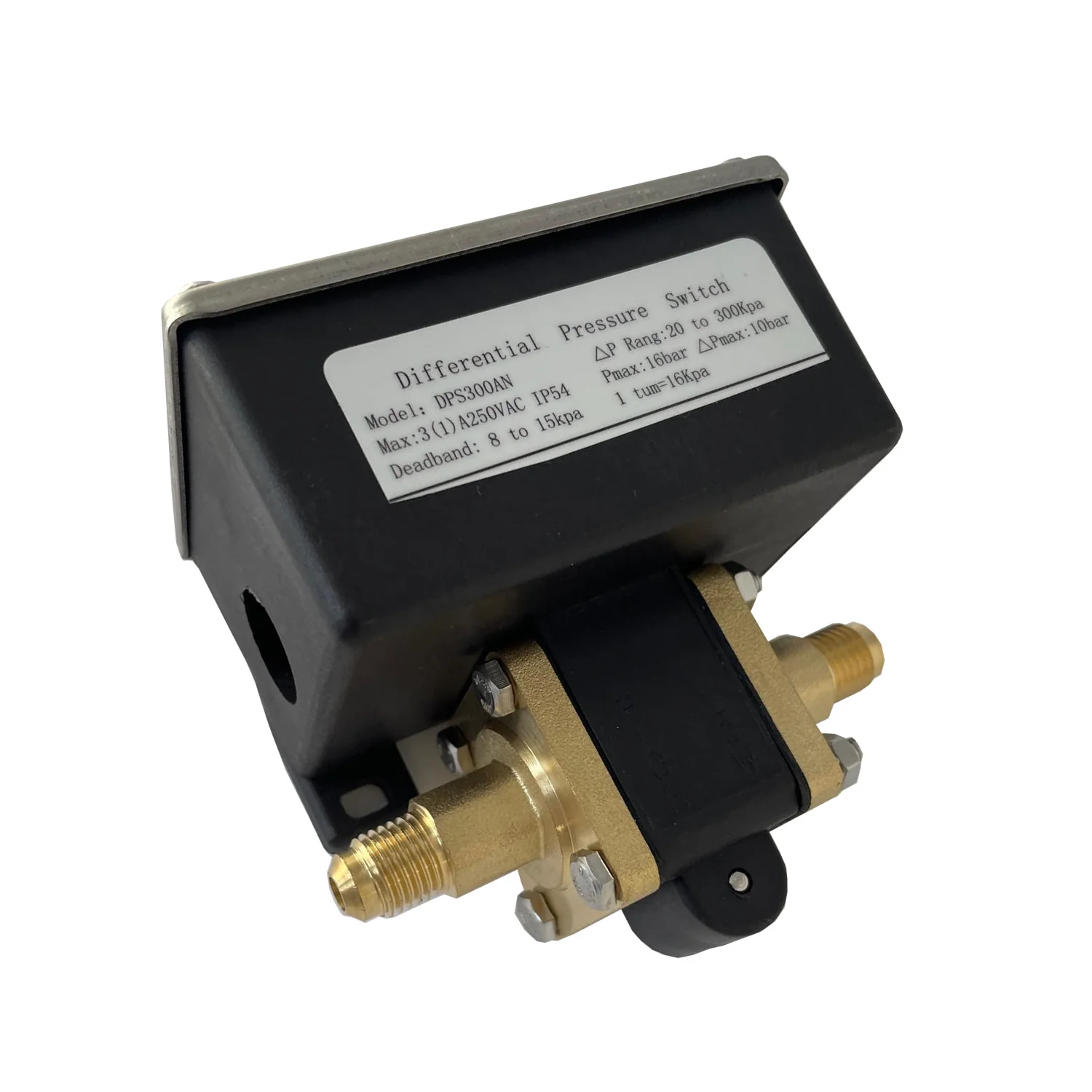

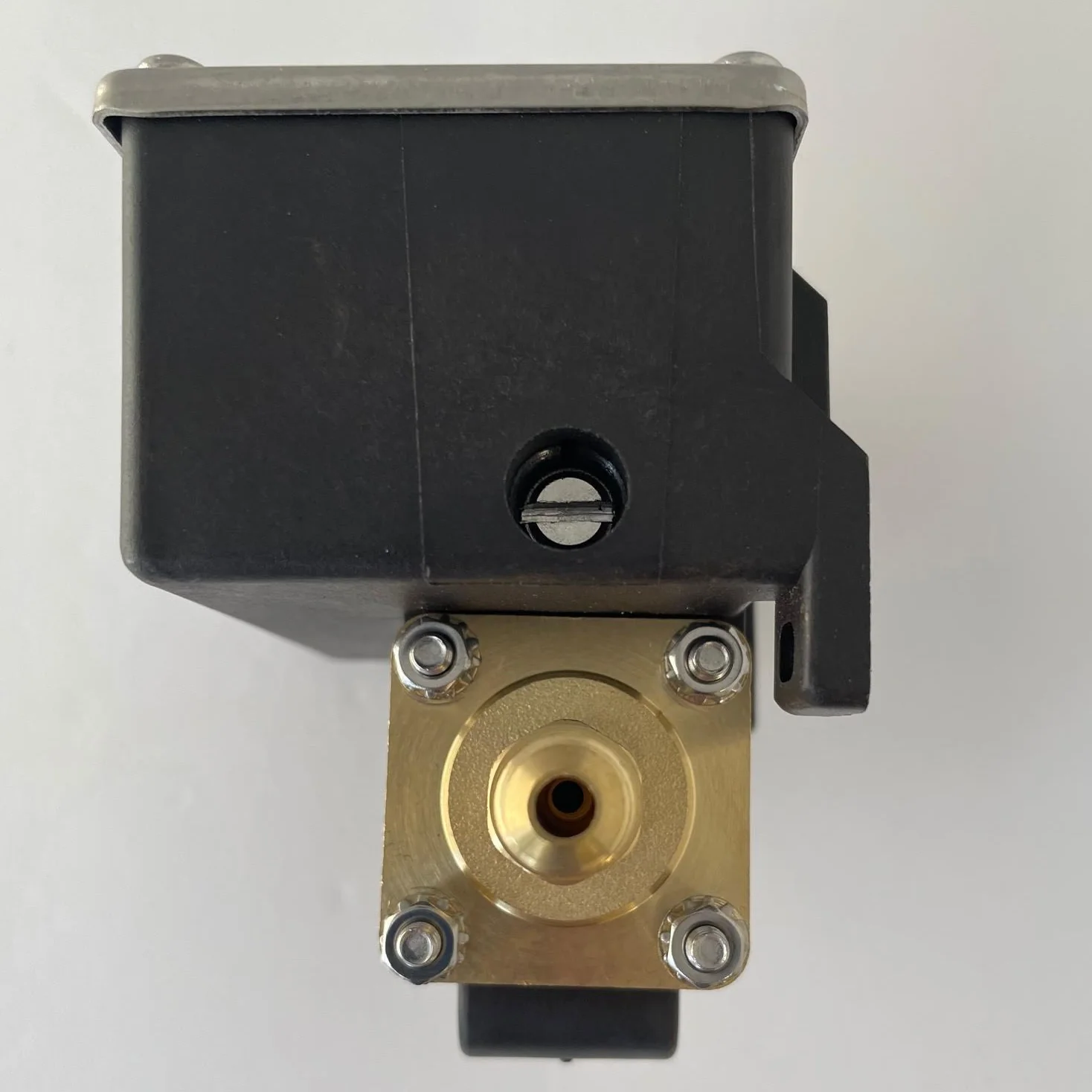

Differential Pressure Switch

Differential Pressure Switch suitable for air and water based applications

Specifications:

Material: Brass Body

Connection: 1/4" SAE Flared Connection (7/16-20"UNF)

Power: 3 Amp/250 VAC
(Recommended for low voltage applications under 50 volts. Not UL Listed)

Enclosure: IP54

Max. Pressure: 145 PSI

Max. Differential Pressure: 72 PSI

Medium: oil, water, air

Maximum Temperature: 208 F
