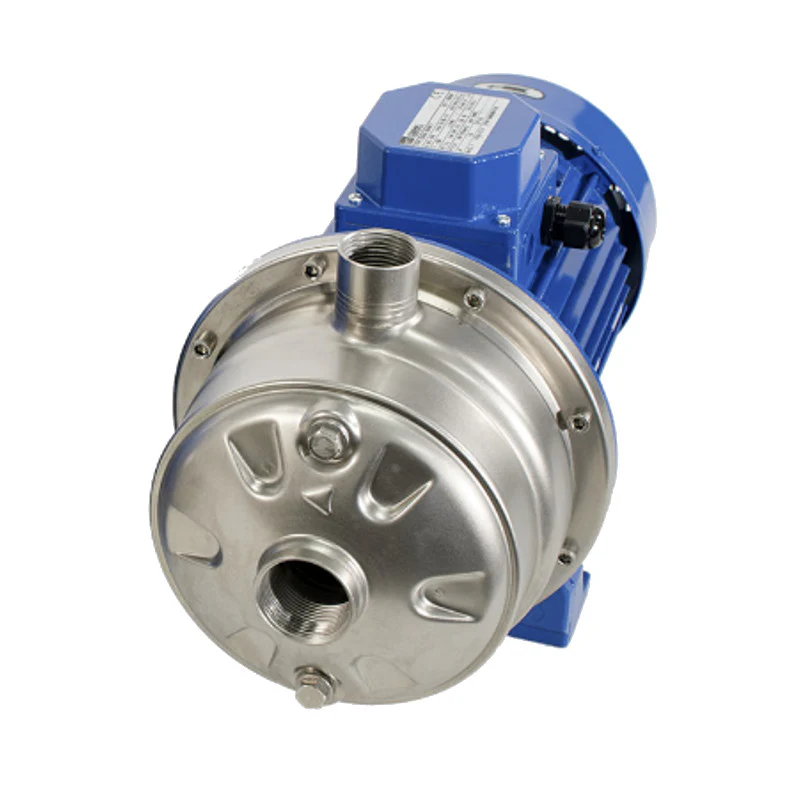

Ebara 2CDXU70/206S2, 2 HP, 1 PH. TEFC Two Stage Pump, 230V

Ebara Pumps 2CDX Two Stage Centrifugal Pump, 2 HP

Model 2CDXU70/206S2

Features:

• Close coupled design – saves space; simplifies maintenance and installation
• Stainless steel liquid end components – high quality; corrosion resistance
• Versatile mounting – can be installed horizontally or vertically
• Back pullout construction – allows for assembly and overhaul of the impeller and seal without distorting suction and discharge connections
• Top centerline discharge – ensures self-venting and reduces misalignment from pipe loads
• High operating efficiency – lowers operating costs
• High quality mechanical shaft seals and o-rings – available for standard pumping
  requirements
• Available with IP55 TEFC motors



2CDX Brochure

2CDX Technical Specifications

2CDX Curves

2CDX Dimensions

2CDX Parts Reference

2CDX Instructions and Operations Manual



Specifications:

• Suction Size: 1 1/4” to 1 1/2” NPT Thread
• Discharge Size: 1” NPT Thread
• Power Range: 3/4 to 5 hp
• Capacity: 5 to 66 gpm
• Head: 40 to 255 feet
• Liquid: Clean Water

See Product Links for chosen model specifications
