PRM FMDFG6T055LPM 0.5-5 LPM Air Rotameter Flow Meter with Integrated Flow Valve

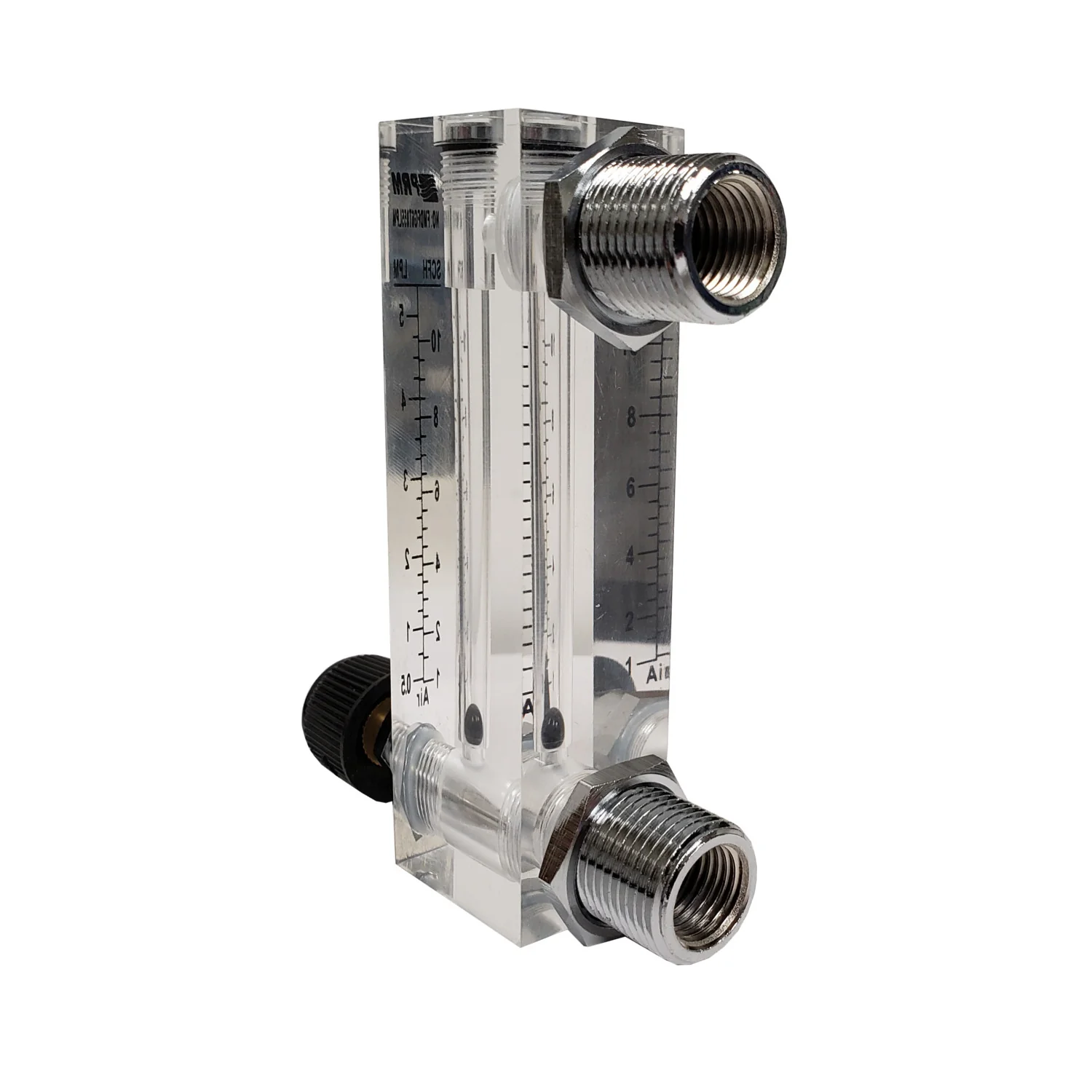

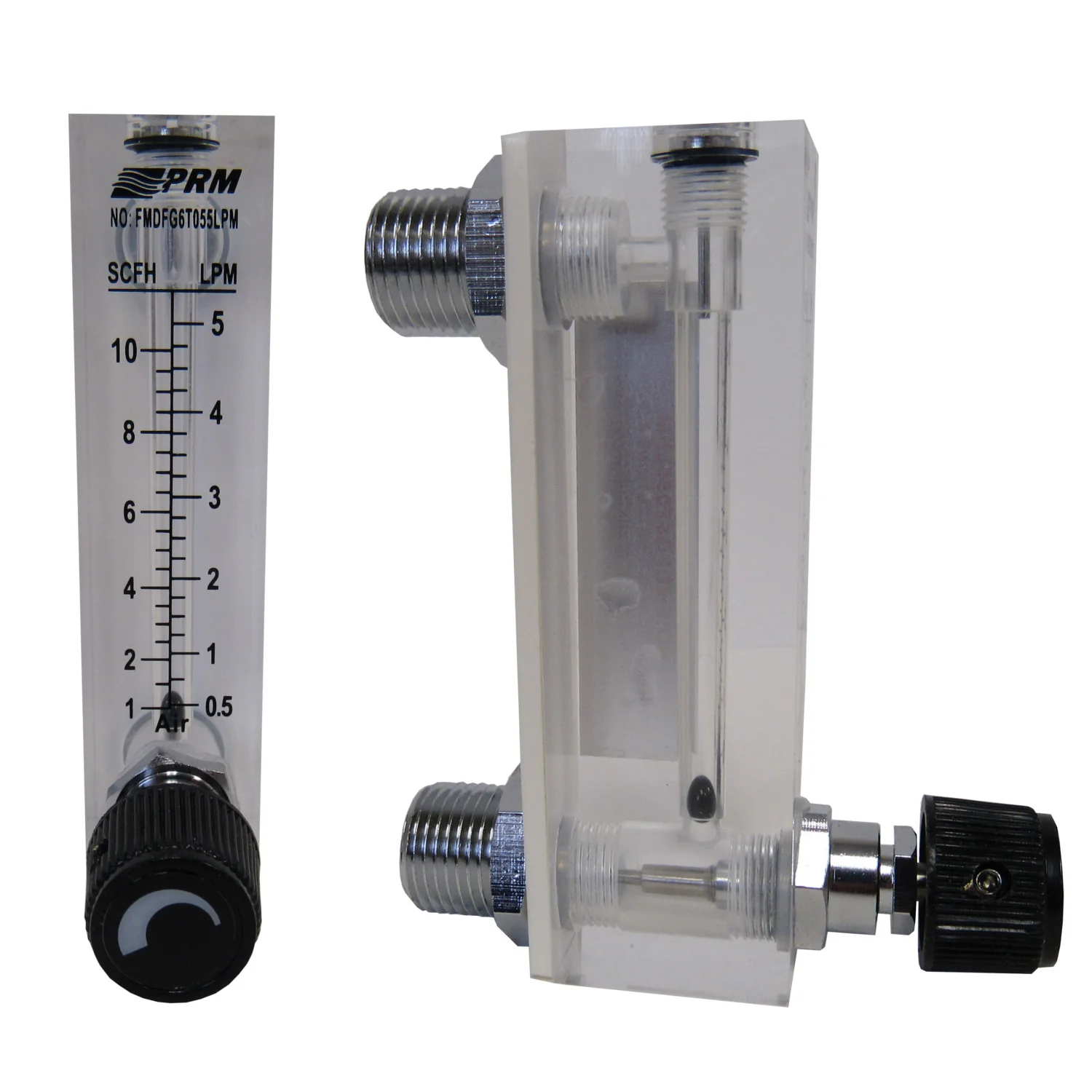

FMDFG6T055LPM AIR ROTAMETER WITH INTEGRATED FLOW VALVE

These rotameters are designed for measuring small flow rates, allowing for fine adjustments with the integrated flow valve. PRM manufactures these standard flow control rotameters with a heavy duty acrylic body to make the rotameters stationary and prohibit flexing.

Measures in Standard Cubic Feet/Hour (SCFH) and NLM (Normal Liters per Minute, or LPM)

• FMDFG6T055LPM: 1-10 SCFH, 0.5-5 LPM
• Compact Configuration
• Maximum Pressure: 100 psi
• Maximum Temperature: 145° F
• Connection: 1/4 Inch Female NPT
• Accuracy: +/-4%
• Acrylic Body, Silicon O-Ring



 Click to view 0.5-5 LPM Spec Sheet pdf
