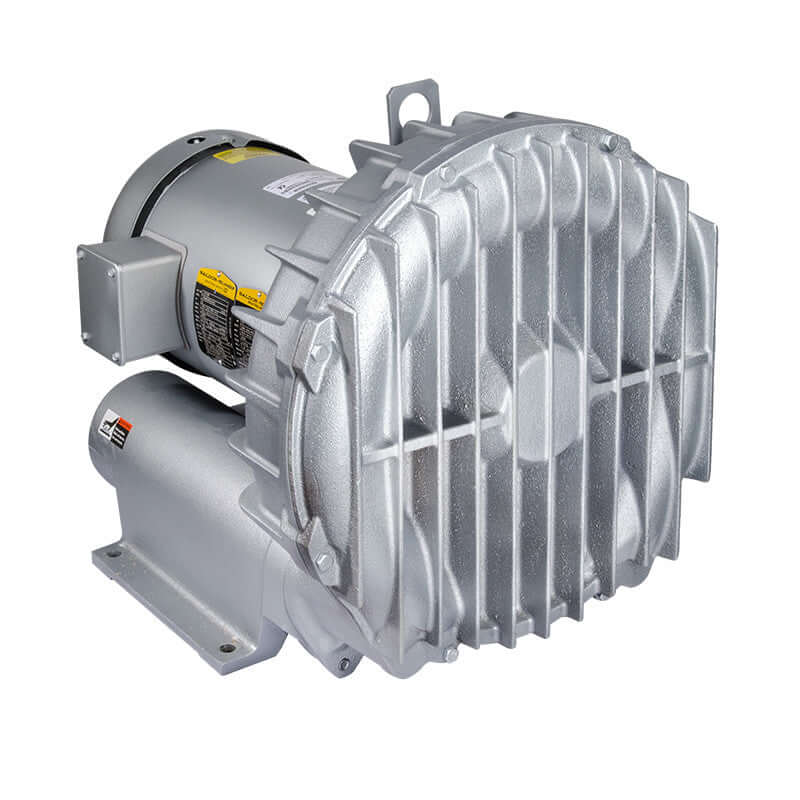

Gast 10 HP R7100A-3 Regenair® Regenerative Blower, TEFC

GAST REGENAIR® REGENERATIVE BLOWERS

CONTACT PRM FOR A QUOTE ON GAST REGEN BLOWERS FOR YOUR PROJECT: 888-873-2848 OR [email protected]

Gast Blower Features:

• Continuous Long-Life operation
• Rugged Blower Impeller made of cast aluminum
• Exterior castings Vacuum impregnated to conform with Mil Spec 17563B
• Lubricated with chemical resistant hydrocarbon grease
• Performance tested, pressurized and leak-tested to less than 5cc/minute
• UL and CSA approved motors.
• All motors incorporate UL and CSA approved thermal protection
• Motor bearings Double sealed, life exceeding 20,000 hours of continuous operation

Gast R7100A-3 Datasheet

Gast Catalog

Operation & Maintenance Manual

With a rugged construction that's suitable for demanding applications, the R7 offers oil-less operation ensuring that the discharge air remains free of contamination. The R7 can be mounted in any plane, which provides flexibility when mounting or integrating the blower into an OEM system. In addition, these blowers have very few moving parts and no wearing components, which minimize downtime and helps to lessen operating noise levels.

Specifications:

• Thermal Protection: NO
• Operating Voltage: 190-220/380-415; 208-230/460
• Regulatory Approval: CSA, CE
• Power Rating: 10 hp ( 7.46 kW )
• Power Rating @ 50hz: 8 hp ( 5.97 kW )
• Power Rating @ 60hz: 10 hp ( 7.46 kW )
• Flow‎ @ 50hz: 350 cfm ( 594.65 m3h )
• Flow @ 60hz: 425 cfm ( 722.08 m3h )
• Max Pressure: 125 in-h20 ( 4232.99 mbar )
• Max Pressure @ 50hz: 115 in-h20 ( 3894.35 mbar )
• Max Pressure @ 60hz: 125 in-h20 ( 4232.99 mbar )
• Max Vacuum @ 50hz: 90 in-h20 ( 3047.75 mbar )
• Max Vacuum @ 60hz‎: 110 in-h20 ( 3725.03 mbar )
• Weight: 321 lbs ( 145.6 kg )
• Duty Cycle: 100%
• Warranty: 1 Year

Lead times vary, contact PRM for estimated lead times.
