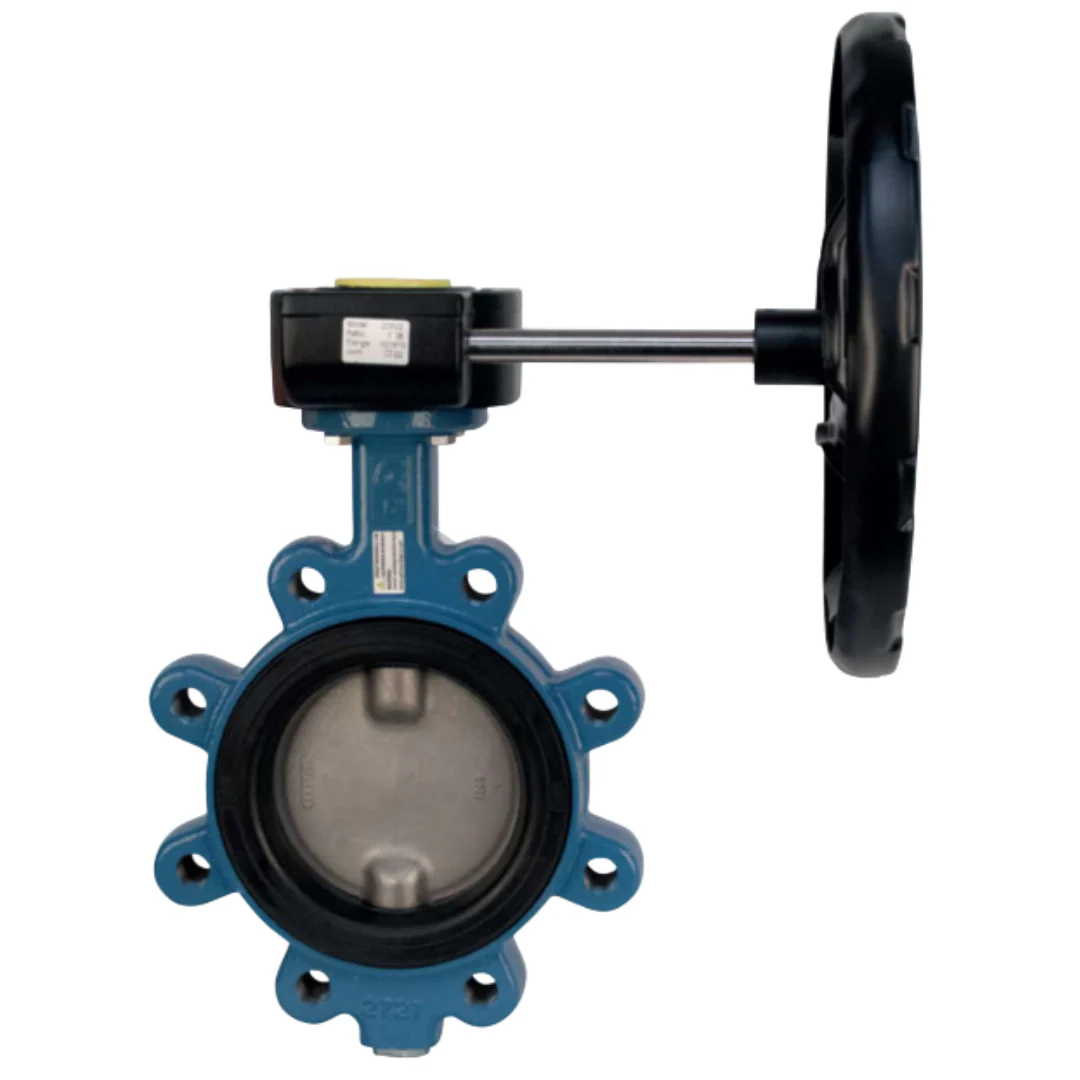

Ghibson Bonomi GN501S-10 10 Inch Gear Operated Lug Butterfly Valve, SS Disc, EPDM Seat

Ghibson Bonomi 10 Inch Gear Operated Lug Butterfly Valve, SS Disc, EPDM Seat

GN501S Series Gear Operated, Lug Style Butterfly Valves from Ghibson Valve, Made in Italy.

Ghibson-Bonomi Datasheet

Specifications:

• Size: 10 Inch
• Body: Ductile Iron
• Disc: Stainless Steel
• Seat: EPDM
• Gear: Ductile Iron

Features:

• Epoxy coated ductile iron lug body.

• Pressure rating: 250 psi water (40°F to 80°F).

• Food grade EPDM resilient seat -30°F to 250°F.

• Low turn ratio.

• API609 face to face flange.

• Floating dual shaft disc design.

• IP54 enclosure.

• MSS SP 67 compliant.

• No pins in disc prevent potential leak points.

• NSF certified for drinking water service (EPDM seats only).

• Dead end service to 100 psi.
