Ghibson Bonomi G530S-12 12 Inch Gear Operated Wafer Butterfly Valve, SS Disc, FKM Seat

Ghibson Bonomi G530S-12 12 Inch Gear Operated Wafer Butterfly Valve, SS Disc, FKM Seat

Ghibson Bonomi 12 Inch Gear Operated Wafer Butterfly Valve, SS Disc, FKM Seat

GN500S Series Gear Operated, Wafer Style Butterfly Valves from Ghibson Valve, Made in Italy.

Ghibson-Bonomi Datasheet

Specifications:

  • Size: 12 Inch
  • Body: Cast Iron
  • Disc: Stainless Steel
  • Seat: FKM
  • Gear: Cast Iron

Features:

  • Epoxy coated cast iron wafer body.
  • Pressure rating: 250psi water (40°F to 80°F).
  • Low turn ratio.
  • API609 face to face flange.
  • Floating dual shaft disc design.
  • IP54 enclosure.
  • MSS SP 67 compliant.
  • No pins in disc prevent potential leak points.
  • Dead end service to 100 psi.
$595.00

Original: $1,699.99

-65%
Ghibson Bonomi G530S-12 12 Inch Gear Operated Wafer Butterfly Valve, SS Disc, FKM Seat—

$1,699.99

$595.00

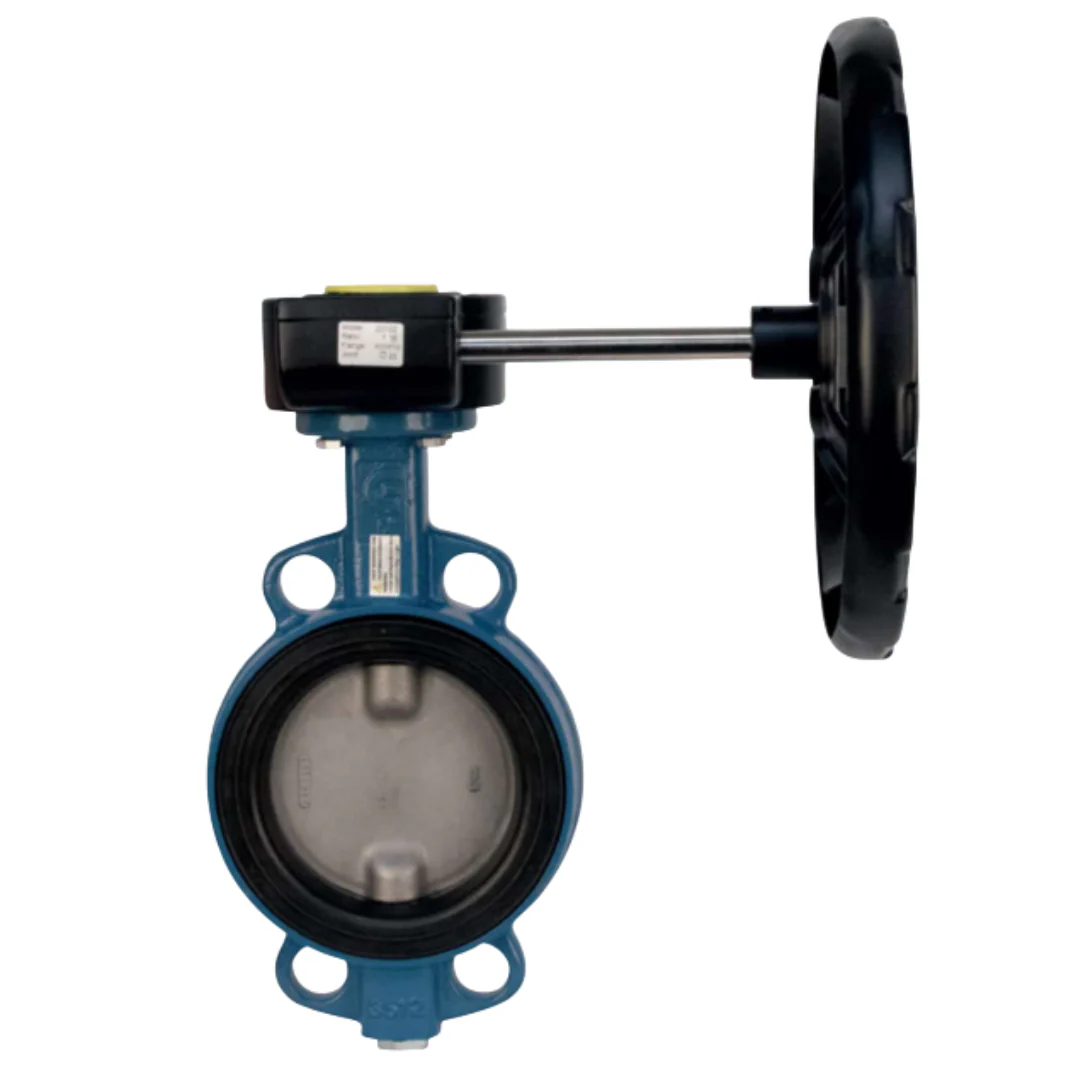

Product image 1

Description

Ghibson Bonomi 12 Inch Gear Operated Wafer Butterfly Valve, SS Disc, FKM Seat

GN500S Series Gear Operated, Wafer Style Butterfly Valves from Ghibson Valve, Made in Italy.

Ghibson-Bonomi Datasheet

Specifications:

  • Size: 12 Inch
  • Body: Cast Iron
  • Disc: Stainless Steel
  • Seat: FKM
  • Gear: Cast Iron

Features:

  • Epoxy coated cast iron wafer body.
  • Pressure rating: 250psi water (40°F to 80°F).
  • Low turn ratio.
  • API609 face to face flange.
  • Floating dual shaft disc design.
  • IP54 enclosure.
  • MSS SP 67 compliant.
  • No pins in disc prevent potential leak points.
  • Dead end service to 100 psi.
