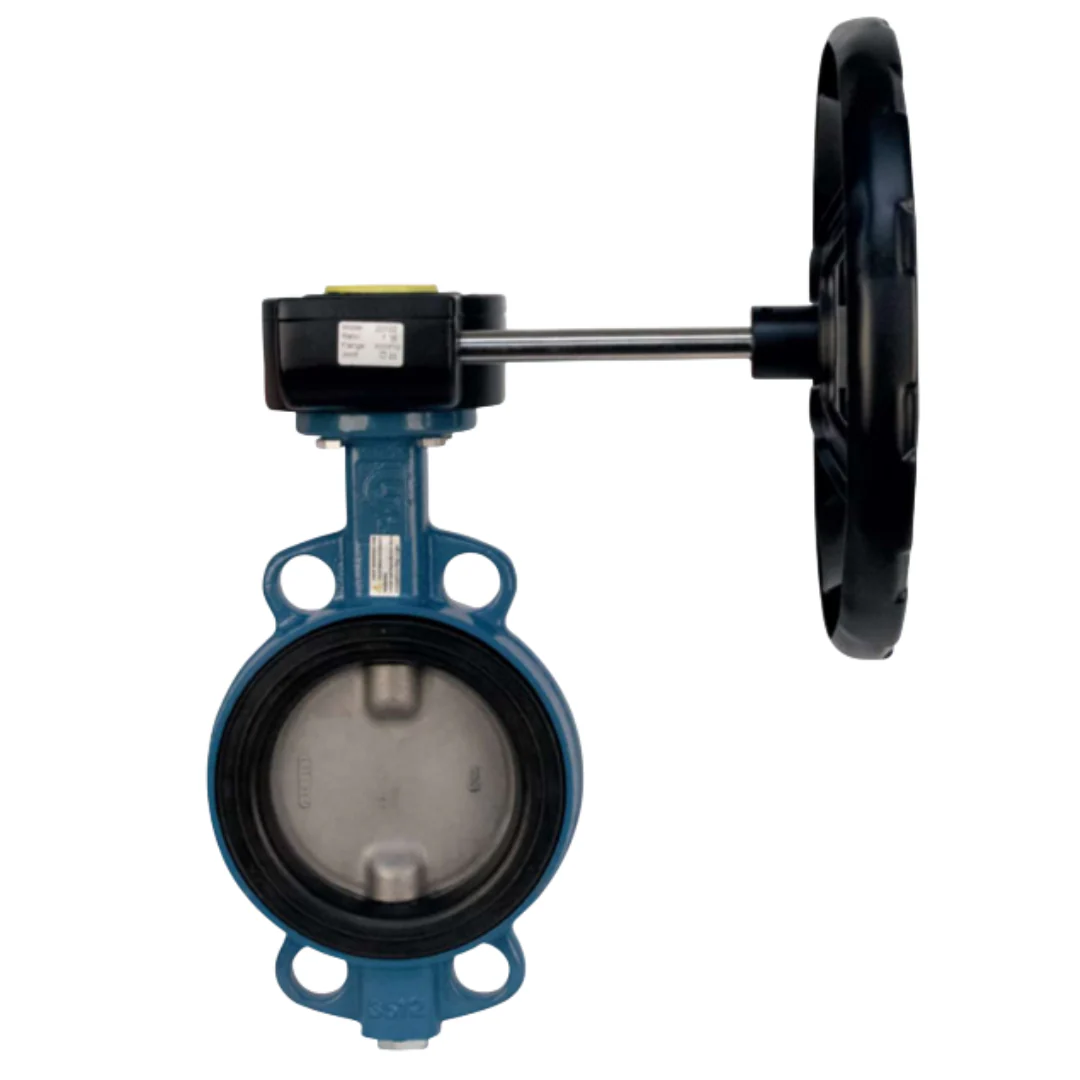

Ghibson Bonomi GN500S-8 8 Inch Gear Operated Wafer Butterfly Valve, SS Disc, EPDM Seat

Ghibson Bonomi 8 Inch Gear Operated Wafer Butterfly Valve, SS Disc, EPDM Seat

GN500S Series Gear Operated, Wafer Style Butterfly Valves from Ghibson Valve, Made in Italy.

Ghibson-Bonomi Datasheet

Specifications:

• Size: 8 Inch
• Body: Cast Iron
• Disc: Stainless Steel
• Seat: EPDM
• Gear: Cast Iron

Features:

• Epoxy coated cast iron wafer body.

• Pressure rating: 250psi water (40°F to 80°F).

• Food grade EPDM resilient seat -30°F to 250°F.

• Low turn ratio.

• API609 face to face flange.

• Floating dual shaft disc design.

• IP54 enclosure.

• MSS SP 67 compliant.

• No pins in disc prevent potential leak points.

• NSF certified for drinking water service (EPDM seats only).

• Dead end service to 100 psi.
