Ghibson Bonomi G530S-8 8 Inch Gear Operated Wafer Butterfly Valve, SS Disc, Viton Seat

Ghibson Bonomi G530S-8 8 Inch Gear Operated Wafer Butterfly Valve, SS Disc, Viton Seat

Ghibson Bonomi 8 Inch Gear Operated Wafer Butterfly Valve, SS Disc, Viton Seat

GN500S Series Gear Operated, Wafer Style Butterfly Valves from Ghibson Valve, Made in Italy.

Ghibson-Bonomi Datasheet

Specifications:

  • Size: 8 Inch
  • Body: Cast Iron
  • Disc: Stainless Steel
  • Seat: Viton
  • Gear: Cast Iron

Features:

  • Epoxy coated cast iron wafer body.
  • Pressure rating: 250psi water (40°F to 80°F).
  • Low turn ratio.
  • API609 face to face flange.
  • Floating dual shaft disc design.
  • IP54 enclosure.
  • MSS SP 67 compliant.
  • No pins in disc prevent potential leak points.
  • Dead end service to 100 psi.
$279.30

Original: $797.99

-65%
Ghibson Bonomi G530S-8 8 Inch Gear Operated Wafer Butterfly Valve, SS Disc, Viton Seat—

$797.99

$279.30

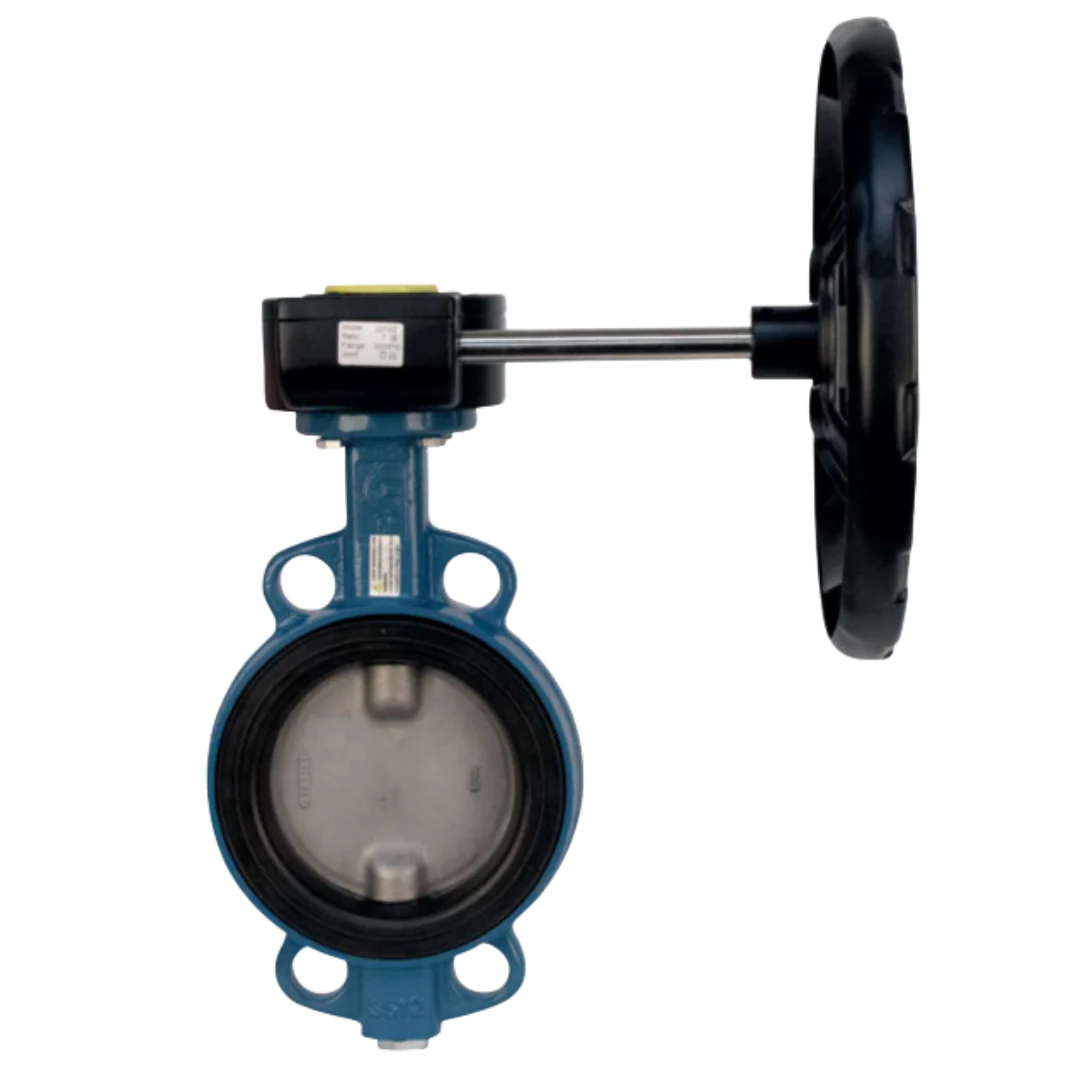

Product image 1

Description

Ghibson Bonomi 8 Inch Gear Operated Wafer Butterfly Valve, SS Disc, Viton Seat

GN500S Series Gear Operated, Wafer Style Butterfly Valves from Ghibson Valve, Made in Italy.

Ghibson-Bonomi Datasheet

Specifications:

  • Size: 8 Inch
  • Body: Cast Iron
  • Disc: Stainless Steel
  • Seat: Viton
  • Gear: Cast Iron

Features:

  • Epoxy coated cast iron wafer body.
  • Pressure rating: 250psi water (40°F to 80°F).
  • Low turn ratio.
  • API609 face to face flange.
  • Floating dual shaft disc design.
  • IP54 enclosure.
  • MSS SP 67 compliant.
  • No pins in disc prevent potential leak points.
  • Dead end service to 100 psi.
