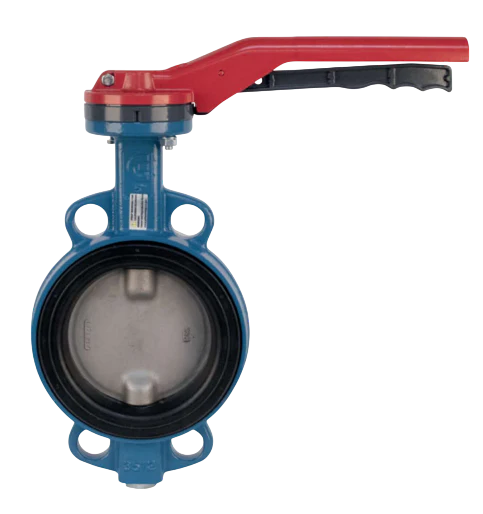

Ghibson Bonomi N500S-2 2 Inch Butterfly Valve, NSF Approved EPDM Seat, Wafer Body, Stainless Steel Disc
Ghibson Bonomi N500S-2 2 Inch Butterfly Valve, NSF Approved EPDM Seat, Wafer Body, Stainless Steel Disc
Ghibson Bonomi N500S-2 2 InchEPDM Seat, Wafer Body, Stainless Steel Disc
Ghibson-Bonomi series N500S, ductile iron (EN-GJS 400-15) wafer style, epoxy coated, resilient seat buttery valves , with EPDM seat are NSF/ANSI 61.372 certified. These series offer a dual stem design and ISO 5211/DIN 3337 direct mounting for high cycle automation capabilities.
In addition, the N500S series feature a dovetail booted seat design which offers a 250 CWP maximum pressure rating, dead-end service to 87 PSI without end piping and 232 PSI with end piping, and conforms to ANSI B16.1 and ANSI B16.5.
VALVE FEATURES:
- Epoxy coated ductile iron (EN-GJS 400-15) wafer body
- N501S - Sizes 1-1/2” to 12”
- ISO 5211 direct mounting pad/square stem
- Food Safe EPDM resilient seat -31°F to 266°F
- Floating dual shaft disc design
- Pressure rating: 250 psi water (40°F to 80°F)
- MSS SP 67 compliant
- No pins in disc prevent potential leak points
- NSF Certified for drinking water service
Original: $68.99
-65%$68.99
$24.15
Description
Ghibson Bonomi N500S-2 2 InchEPDM Seat, Wafer Body, Stainless Steel Disc
Ghibson-Bonomi series N500S, ductile iron (EN-GJS 400-15) wafer style, epoxy coated, resilient seat buttery valves , with EPDM seat are NSF/ANSI 61.372 certified. These series offer a dual stem design and ISO 5211/DIN 3337 direct mounting for high cycle automation capabilities.
In addition, the N500S series feature a dovetail booted seat design which offers a 250 CWP maximum pressure rating, dead-end service to 87 PSI without end piping and 232 PSI with end piping, and conforms to ANSI B16.1 and ANSI B16.5.
VALVE FEATURES:
- Epoxy coated ductile iron (EN-GJS 400-15) wafer body
- N501S - Sizes 1-1/2” to 12”
- ISO 5211 direct mounting pad/square stem
- Food Safe EPDM resilient seat -31°F to 266°F
- Floating dual shaft disc design
- Pressure rating: 250 psi water (40°F to 80°F)
- MSS SP 67 compliant
- No pins in disc prevent potential leak points
- NSF Certified for drinking water service
