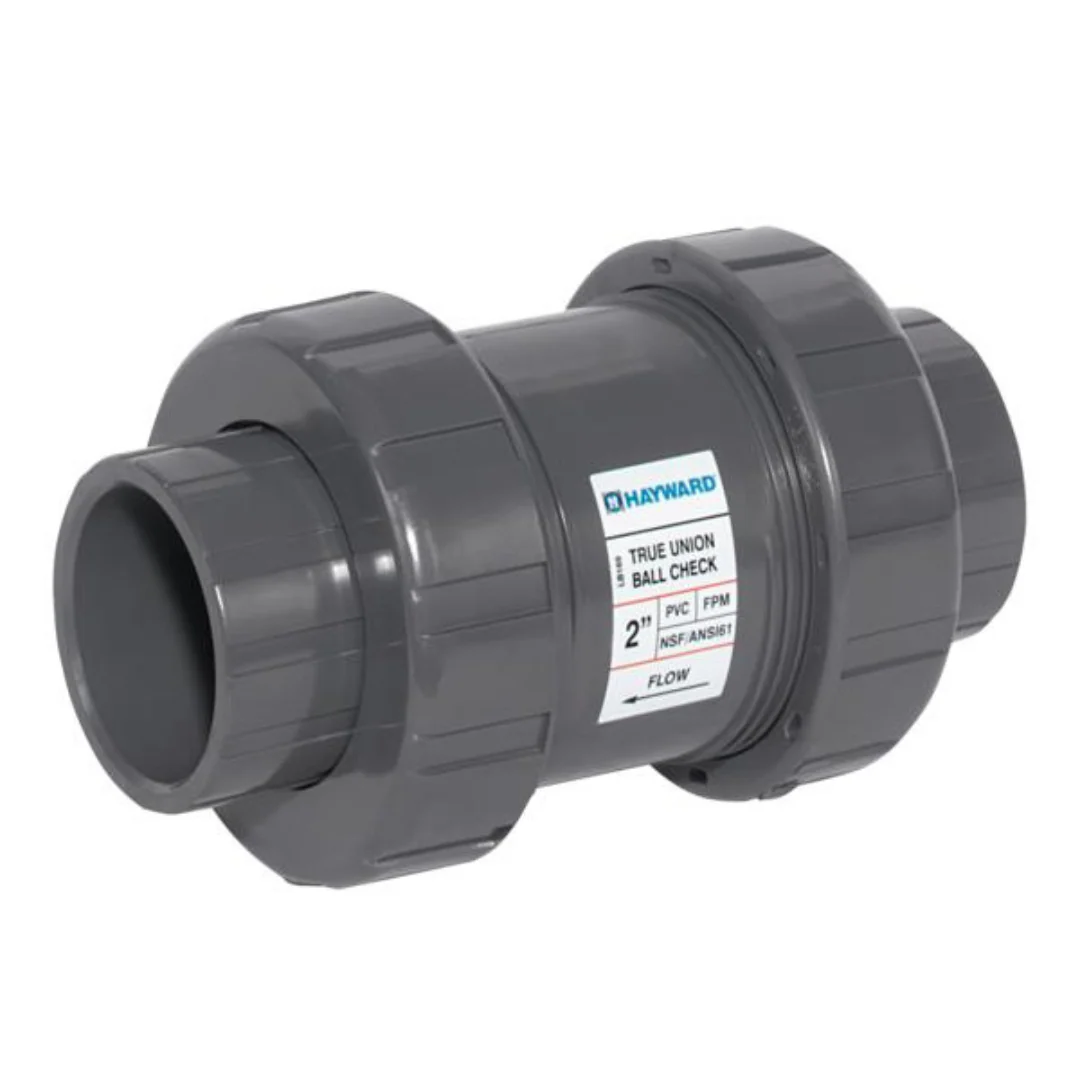

Hayward TC20050ST 2 Inch CPVC True Union Ball Check Valve
Hayward 2 Inch TC Series CPVC True Union Ball Check Valve, Socket/Threaded - TC20050ST
The Hayward TC Series True Union Ball Check Valves offer versatile and reliable backflow prevention for critical flow control applications. All valves are assembled with silicone free lubricant. The TC Series is Made by Hayward in the USA!
Features:
- For Horizontal or Vertical Installation
- 1/2" to 6" are Sure Block Design
- Square Cut Seat for Positive Sealing
- Seats with Minimum Back Pressure
- NSF / ANSI 61 and NSF / ANSI 372 Listed
- BABA (Build America, Buy America Act) Compliant
Specifications:
-
Pipe Size: 2 in
-
Material: CPVC
-
Sealing Material: FPM
-
End Connection Type: Socket/Threaded
-
Pressure Rating: 235 PSI
-
Cv Coefficient: 4.8000
-
CPVC Cell Class: 23447 per ASTM D1784
$249.99
Hayward TC20050ST 2 Inch CPVC True Union Ball Check Valve—
$249.99
Description
Hayward 2 Inch TC Series CPVC True Union Ball Check Valve, Socket/Threaded - TC20050ST
The Hayward TC Series True Union Ball Check Valves offer versatile and reliable backflow prevention for critical flow control applications. All valves are assembled with silicone free lubricant. The TC Series is Made by Hayward in the USA!
Features:
- For Horizontal or Vertical Installation
- 1/2" to 6" are Sure Block Design
- Square Cut Seat for Positive Sealing
- Seats with Minimum Back Pressure
- NSF / ANSI 61 and NSF / ANSI 372 Listed
- BABA (Build America, Buy America Act) Compliant
Specifications:
-
Pipe Size: 2 in
-
Material: CPVC
-
Sealing Material: FPM
-
End Connection Type: Socket/Threaded
-
Pressure Rating: 235 PSI
-
Cv Coefficient: 4.8000
-
CPVC Cell Class: 23447 per ASTM D1784
