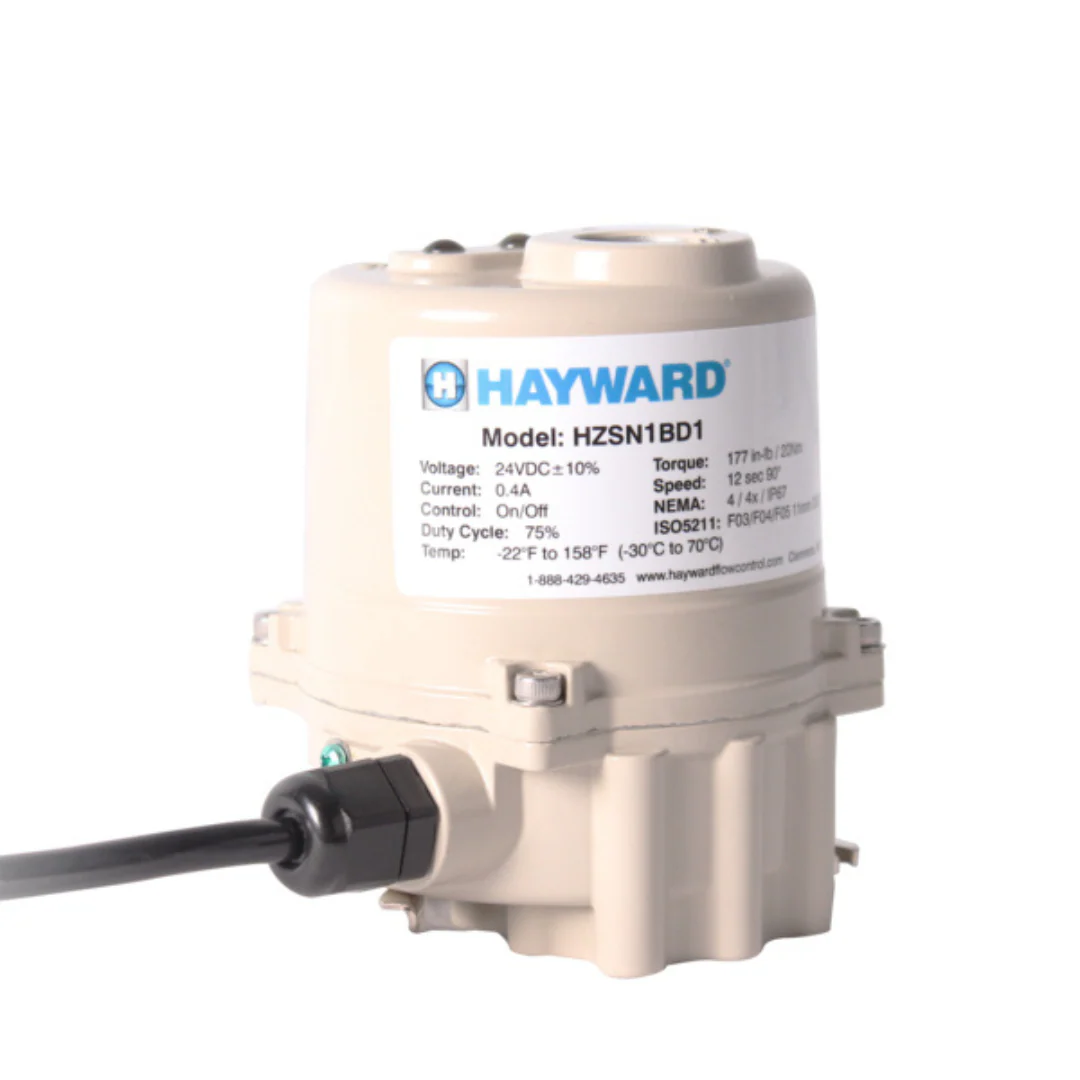

Hayward HZSN Series Actuator

Hayward’s HRS Series electric actuators are designed and produced to provide years of service in demanding industrial environments. These quarter-turn units drive ball valves & butterfly valves that require torque ranges from 300 lbf-in up through 177,000 lbf-in.

Hayward Datasheet

Operators Manual

Features:

• Extended Product Range from 300 in-lb to 177,000 in-lb
• Powder Coated Aluminum Alloy Housing
• ISO5211 Compliant Mounting with Double Square Drive Socket
• On/Off or Proportional Control (2-10 vdc / 4-20mA Inputs & Outputs)
• NEMA 4/4X/IP67 Environmental Rating
• Multiple AC and DC Voltages
• Integrated Local Control Stations
• Visual Position Indicators
• CSA Certified to CSA 22.2 No. 139-10 UL439 for Ordinary Location Applications
• Backed by Hayward’s Exclusive 3 Year Warranty
• Interchangeable ISO5211 Mounting and Drive Shafts
• Positioners
• Extended Duty Motors
• 3 Position Control
• Passive Analog Feedback
• Torque Switches
• 3 Phase Motor Control Center
• IP68 Submersible Rating
