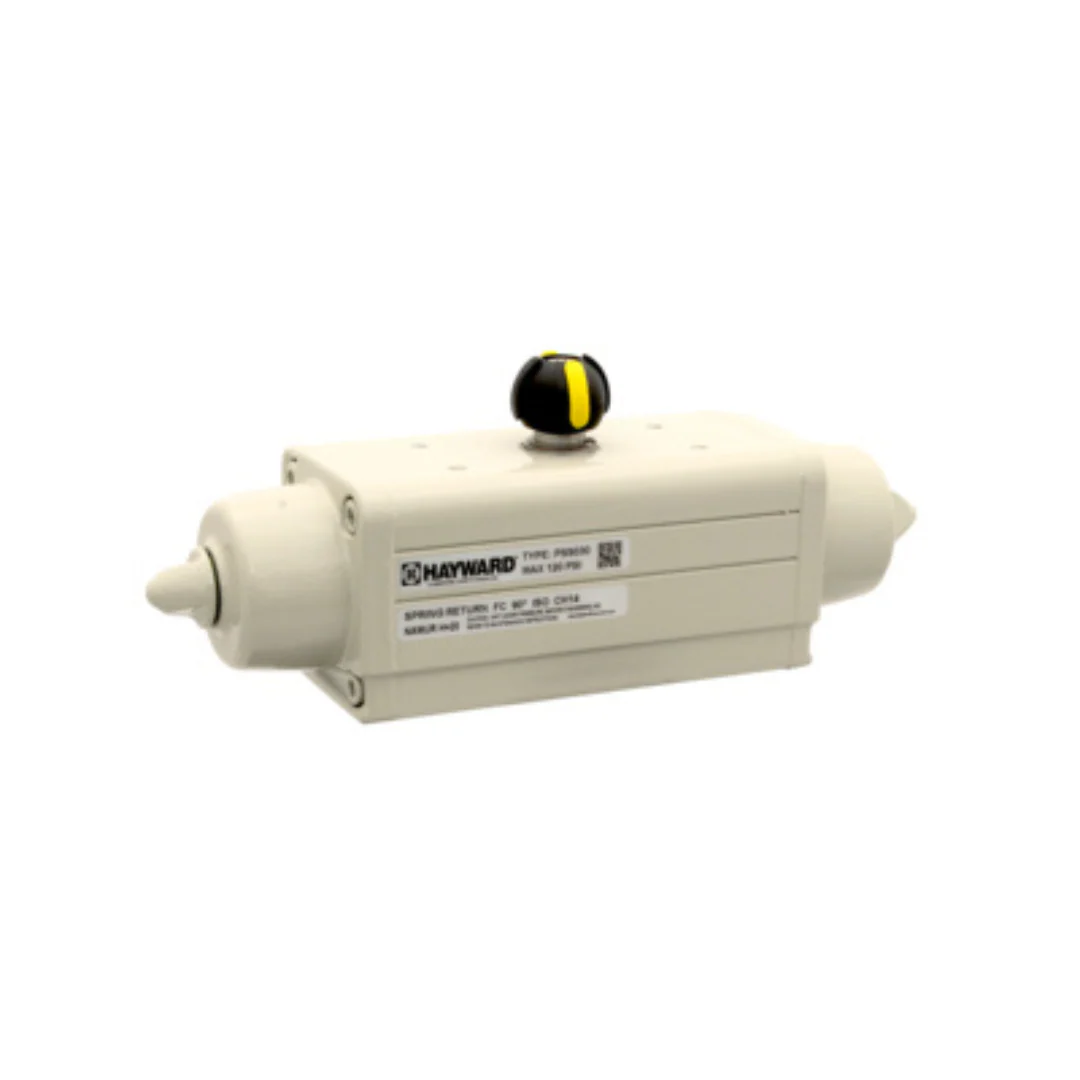

Hayward PSS Series Spring Return Pneumatic Actuators

The PS Series features a robust aluminum body with a three-layer Epoxy / Urethane coating for superior corrosion and abrasion resistance to handle harsh environments. With a very robust, lightweight, and extremely compact design, the PS Series also allows for ease of installation in tight spaces and less line weight where it is critical. Internally, the PS Series employs a scotch yoke design resulting in less friction and longer life of the actuator.

Hayward Datasheet

Features:

• Scotch Yoke Quarter-Turn Design - Less Friction than Rack & Pinion

• Ideal for Corrosive Atmosphere and Environments

• Stainless Steel Drive Shaft/Indicator Shaft and Stainless Steel Hardware Standard

• Available in Double Acting and Spring Return Models

• Adjustable Rotation Angle

• Linear Motion - No Teeth or Gears

• Permanent Lubrication

• Lower Air Consumption than Rack & Pinion

• Smaller Size Compared to Equivalent Rack & Pinion Torque Rating

• Position Indicator

• Namur-Style Top-Works Mounting

• Namur-Style Solenoid Mounting

• ISO 5211 Mounting Base
