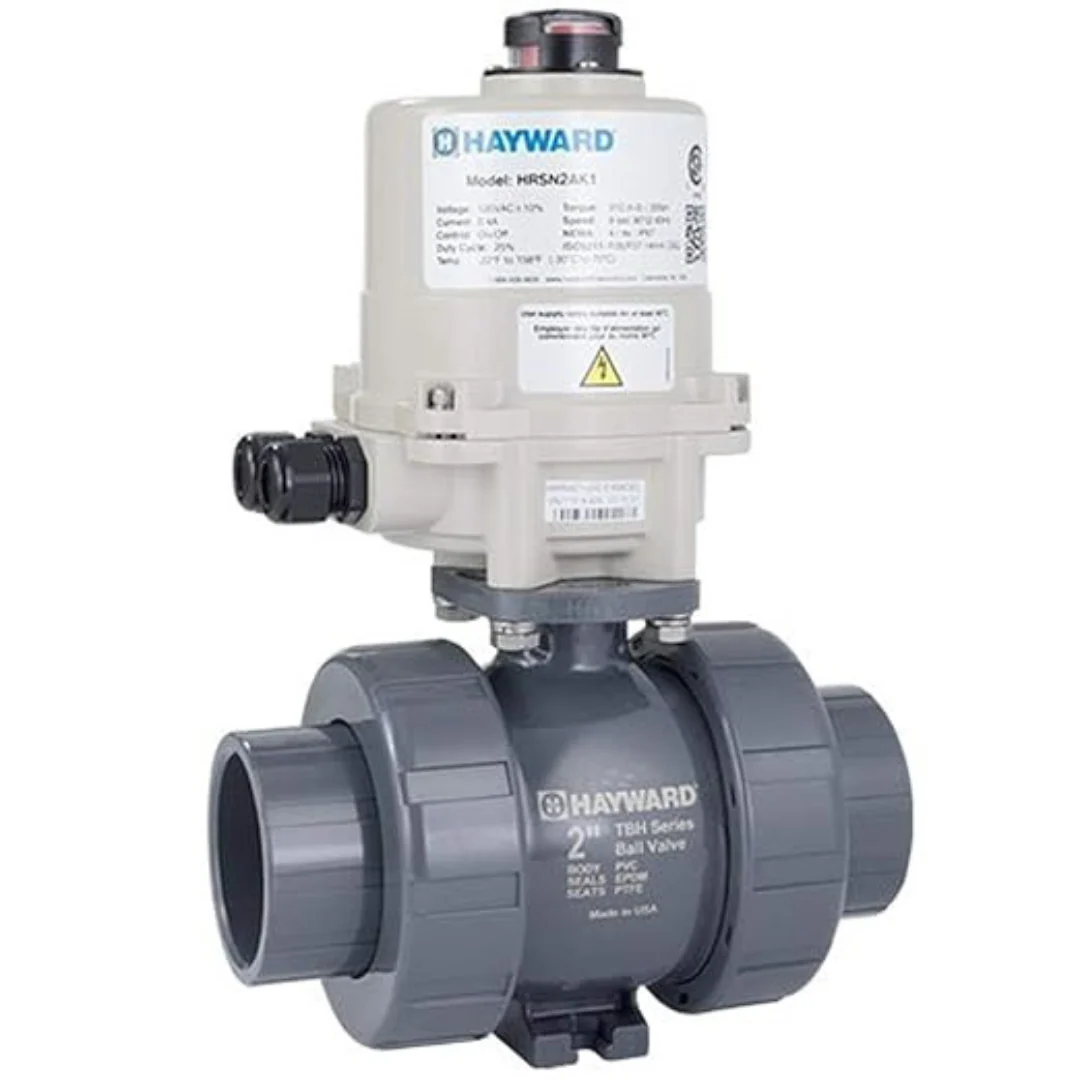

Hayward TBH Series CPVC Ball Valve with HRS Actuator

Valve Features:

• System2™ Sealing Technology provides longer cycle life

• 250 PSI / 16 Bar, non-shock at 70°F / 23°C full pressure rating

• Consistent operating torque with adjustment-free design

• Lockout/Tagout mechanism that secures directly to valve body for
  enhanced safety

• Ergonomic handle for improved grip and comfort

• ISO mounting flange simplifies actuation

• Permanent markings, eliminates labels

• Integral footpad for skid or panel mount

• FPM or EPDM seals

• Double O-Ring stem seals

• Reversible PTFE seats – Standard

• Easy replacement for existing Hayward TB Series

• NSF / ANSI 61 and NSF / ANSI 372 Listed

Valve Datasheet

Actuator Features:

• Stored Energy System provides positive valve positioning upon loss of mains power

• Up to 1770”lbs torque for ball valves and butterfly valves up to 8”

• 24VAC/VDC operation standard, with 120vac and 230vac transformer options available

• Field selectable fail CW or CCW operation for complete flexibility

• Self-Contained charge and discharge control of the Lithium Ion Battery provides maximum life from the reserve energy system

• Battery Pack is field replaceable to minimize down-time

• Stored Energy status indicators show system health

• Fault-Out contact is standard and allows remote monitoring of the stored energy system performance.

• ISO5211 Mechanical mount with removable double-square female drive socket

• Two (2) 3/4” EMT ports for ease of field wiring

• NEMA 4/4x/IP67 Compliant

• Optional Torque Switches

Actuator Datasheet
