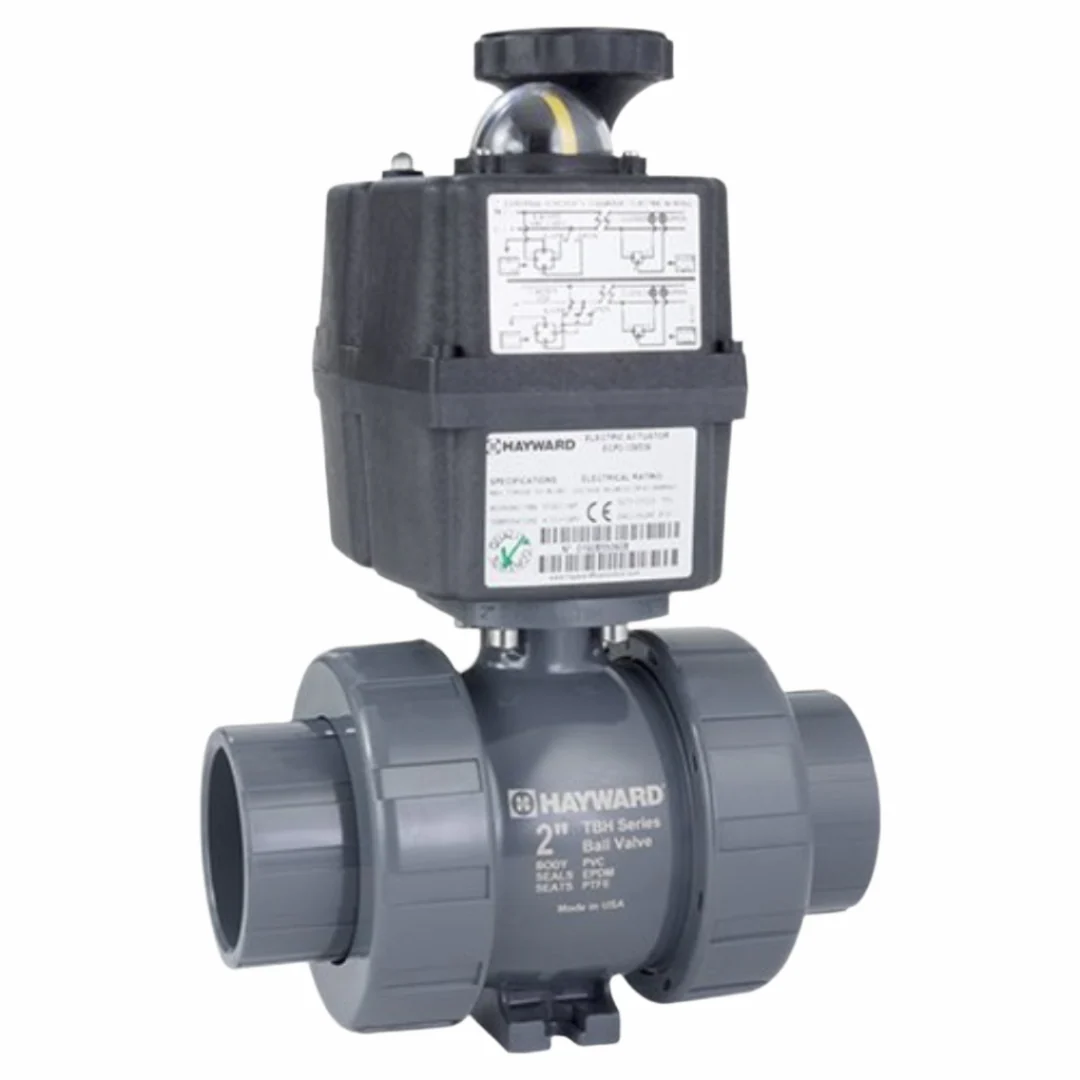

Hayward TBH Series PVC Ball Valve with ECP3 Actuator

Valve Features:

• System2™ Sealing Technology provides longer cycle life

• 250 PSI / 16 Bar, non-shock at 70°F / 23°C full pressure rating

• Consistent operating torque with adjustment-free design

• Lockout/Tagout mechanism that secures directly to valve body for
  enhanced safety

• Ergonomic handle for improved grip and comfort

• ISO mounting flange simplifies actuation

• Permanent markings, eliminates labels

• Integral footpad for skid or panel mount

• FPM or EPDM seals

• Double O-Ring stem seals

• Reversible PTFE seats – Standard

• Easy replacement for existing Hayward TB Series

• NSF / ANSI 61 and NSF / ANSI 372 Listed

Valve Datasheet

Actuator Features:

• Ideal for Corrosive Atmosphere and Environments

• Corrosion-Resistant GFPP Housing

• LED Status Light

• Anti-Condensation Heater

• Manual Override

• Position Indicator

• 4 SPDT Micro Limit Switches

• Lightweight - Easy for Installation

• ISO 5211 Mounting Base

• Stainless Steel Fasteners 303 SS

• 100% Factory Tested

• CE Mark

• Thermal Overload Protection

• Auto Switching Power Supply

Actuator Datasheet
