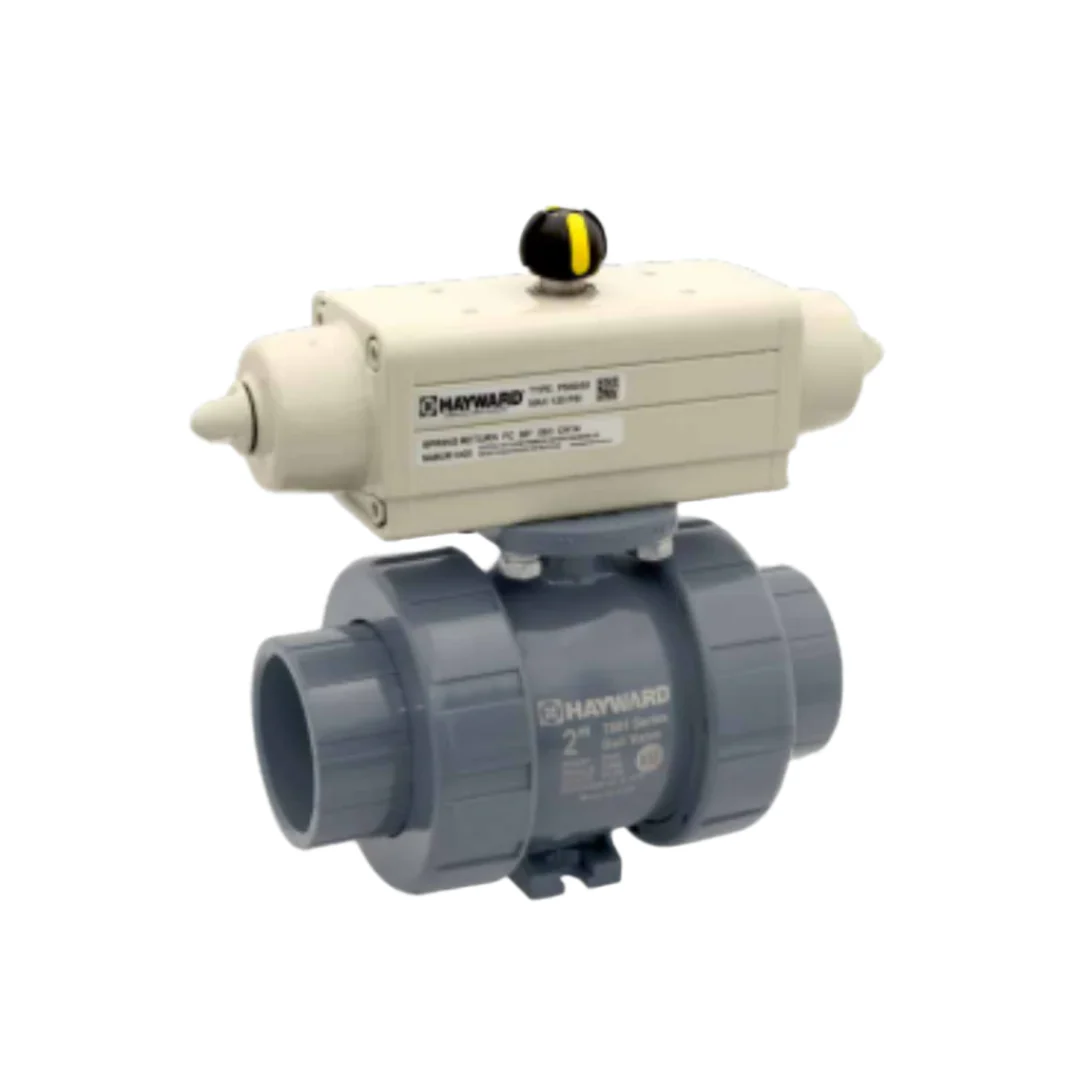

Hayward TBH Series PVC Ball Valve with PSD Double Acting Actuator

Valve Features:

• System2™ Sealing Technology provides longer cycle life

• 250 PSI / 16 Bar, non-shock at 70°F / 23°C full pressure rating

• Consistent operating torque with adjustment-free design

• Lockout/Tagout mechanism that secures directly to valve body for
  enhanced safety

• Ergonomic handle for improved grip and comfort

• ISO mounting flange simplifies actuation

• Permanent markings, eliminates labels

• Integral footpad for skid or panel mount

• FPM or EPDM seals

• Double O-Ring stem seals

• Reversible PTFE seats – Standard

• Easy replacement for existing Hayward TB Series

• NSF / ANSI 61 and NSF / ANSI 372 Listed

Valve Datasheet

Actuator Features:

• Scotch Yoke Quarter-Turn Design - Less Friction than Rack & Pinion

• Ideal for Corrosive Atmosphere and Environments

• Stainless Steel Drive Shaft/Indicator Shaft and Stainless Steel Hardware Standard

• Available in Double Acting and Spring Return Models

• Adjustable Rotation Angle

• Linear Motion - No Teeth or Gears

• Permanent Lubrication

• Lower Air Consumption than Rack & Pinion

• Smaller Size Compared to Equivalent Rack & Pinion Torque Rating

• Position Indicator

• Namur-Style Top-Works Mounting

• Namur-Style Solenoid Mounting

• ISO 5211 Mounting Base

Actuator Datasheet
