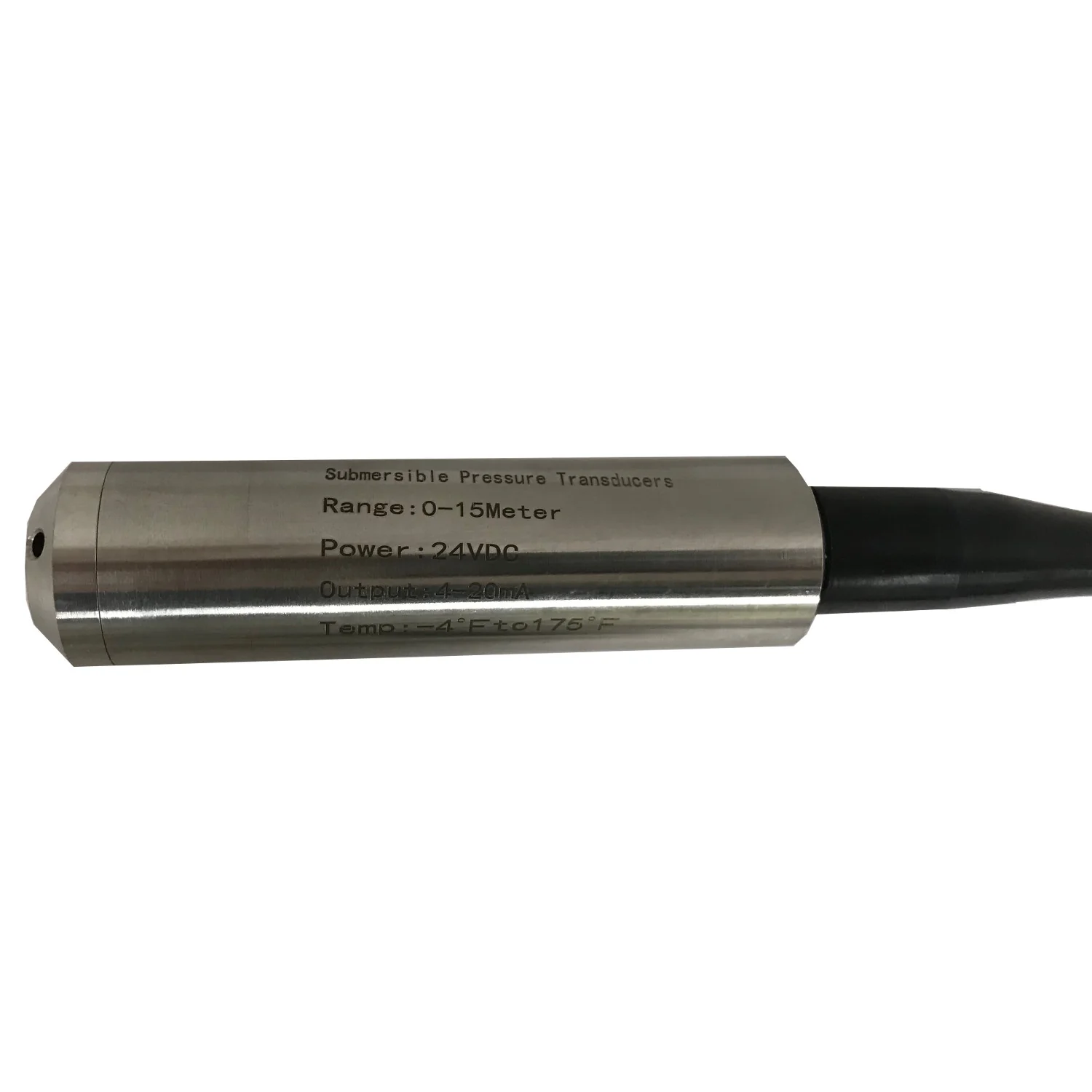

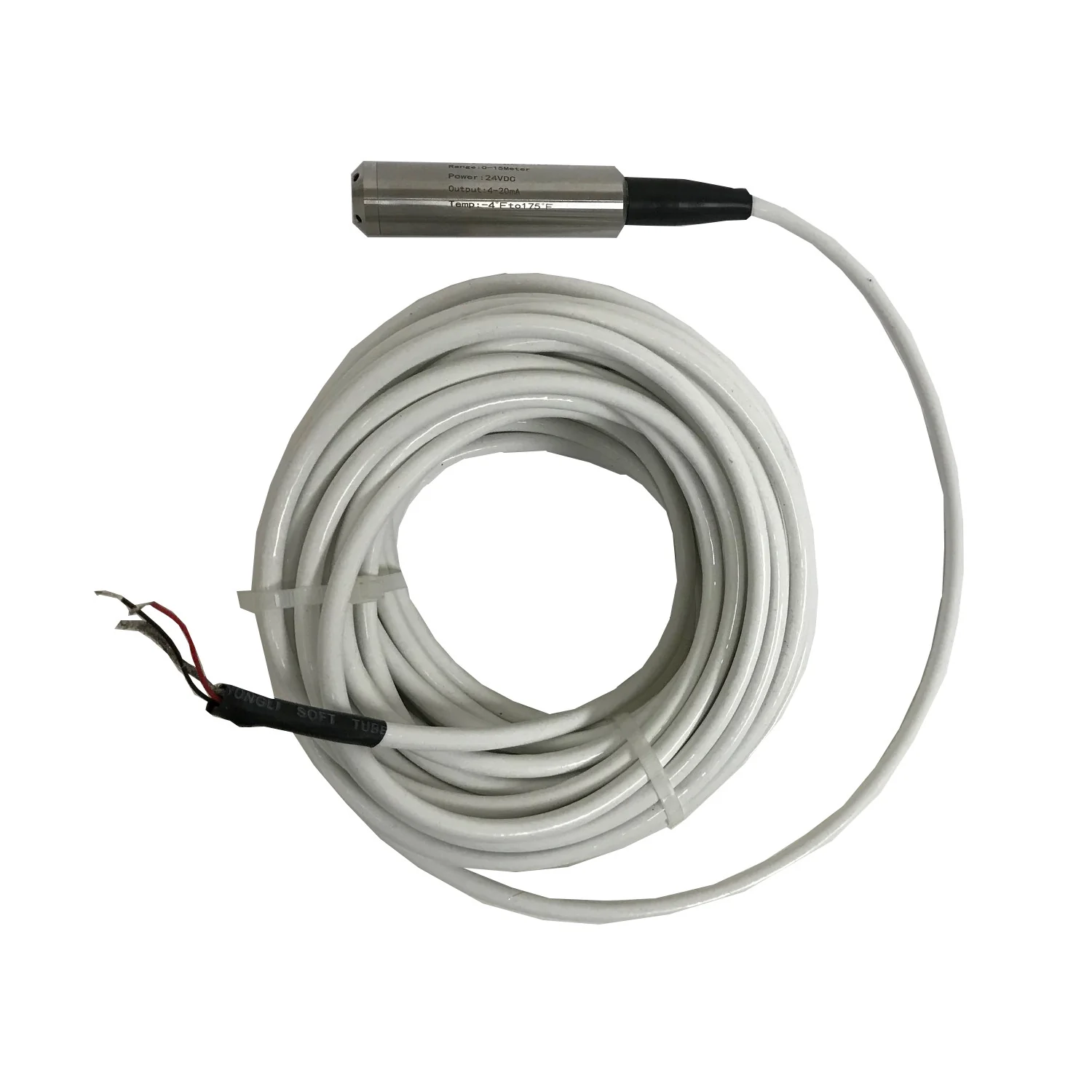

Submersible Pressure Transducer, High Accuracy, 316L SS, 24 VDC, 4~20 mA, PTFE Cable

PRM SUBMERSIBLE DOWN WELL PRESSURE TRANSDUCER, 316L SS, 24 VDC, 4~20 mA

PRM Submersible Pressure Transducers have a compact, rugged design for easy installation. The sensor and cable are completely submersible and need minimal maintenance and care. Reliably monitors levels in groundwater wells, tanks, etc.

Features:

• Available in multiple lengths:
  50 Foot (15 meter) PTFE Chemical Resistant Cable
  75 Foot (23 meter) PTFE Chemical Resistant Cable
  100 Foot (31 meter) PTFE Chemical Resistant Cable
  125 Foot (39 meter) PTFE Chemical Resistant Cable
  (Use drop down menu to select desired length)


• Scale Value:
  0-15 Meters (0-49.2') scaled for 4-20 mA
  0-23 Meters (0-75.4') scaled for 4-20 mA
  0-31 Meters (0-101.7') scaled for 4-20 mA
  0-39 Meters (0-127.9') scaled for 4-20 mA


• 24 VDC Power (18-36 VDC)
• Width (OD): 1 Inch
• Temperature Range: 14°F to 175°F
• Accuracy +/- 0.25% FS

Submersible Pressure Transducer Datasheet
Submersible Pressure Transducer Manual
