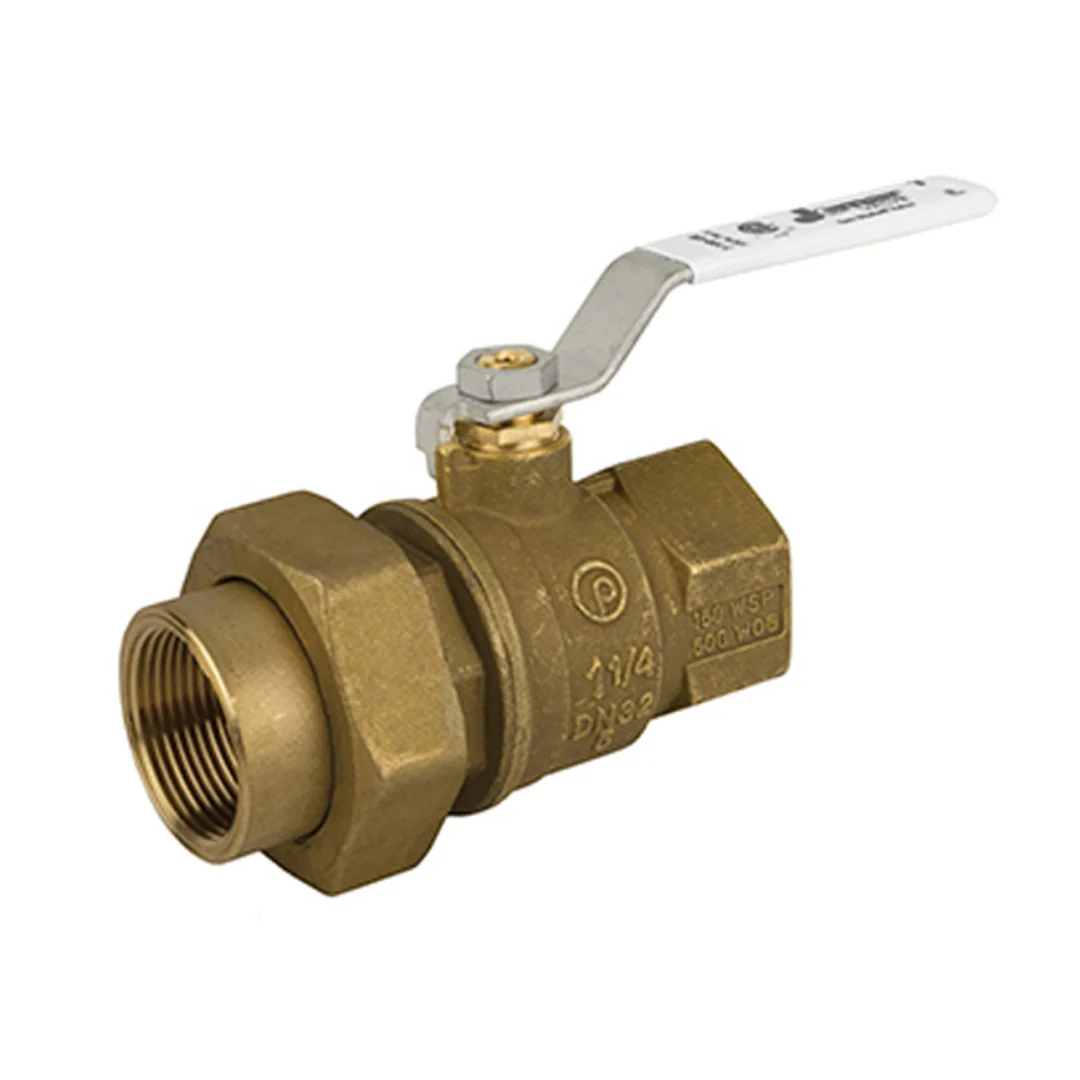

Jomar 160-107G 1-1/2 Inch Full Port Threaded Lead Free Brass Single Union End Ball Valve

Jomar 1-1/2 Inch T-100UEG Series Lead Free Brass Full Port Threaded Single Union End Ball Valve

Optimize your systems by choosing Jomar Valve products for your projects. Made with high quality alloys and materials, longevity and peak performance are ensured no matter the application. With third-party testing, inspection and validation, Jomar provides a robust lineup of UL, CSA, FM and NSF certified products to customers worldwide.

These 1-1/2" T-100UEG Series 2-piece ball valves with full port threaded connection are rated for 600 psi (WOG) and are NSF 61 / NSF 372 certified. Made from lead free brass, they feature a single union end and lever handle, as well as a 100% leak tested triple sealing stem with a lifetime warranty.

Features

• Dezincification Resistant Brass Alloy
• Wetted Surfaces Contain Less than .25% Lead Content
• Triple Sealing Stem with 2 FKM O-rings and Second Generation PTFE Seats
• FIP x Union FIP
• Blow-Out Proof Stem
• 100% Leak Tested
• Leakproof Stem – Lifetime Warranty
• 29 in-HG Vacuum Rating
• NSF 61 / NSF 372 Certified
• 100% Made in Italy
• Buy American Act Compliant



Specifications

MPN	160-107G
Size	1-1/2"
Connection Type	Threaded
Handle Type	Lever
Pressure Rating	600 WOG
Body Material	Lead Free Brass
Trim Material	Brass
Seat Material	PTFE
Seal Material	FKM

Certifications

NSF

• NSF 372
• NSF 61-8

• MSS SP-110
• ANSI B1.20.1
• Meets IS0 6509



Resources

• T-100UEG Datasheet
• T-100UEG Series Brochure
