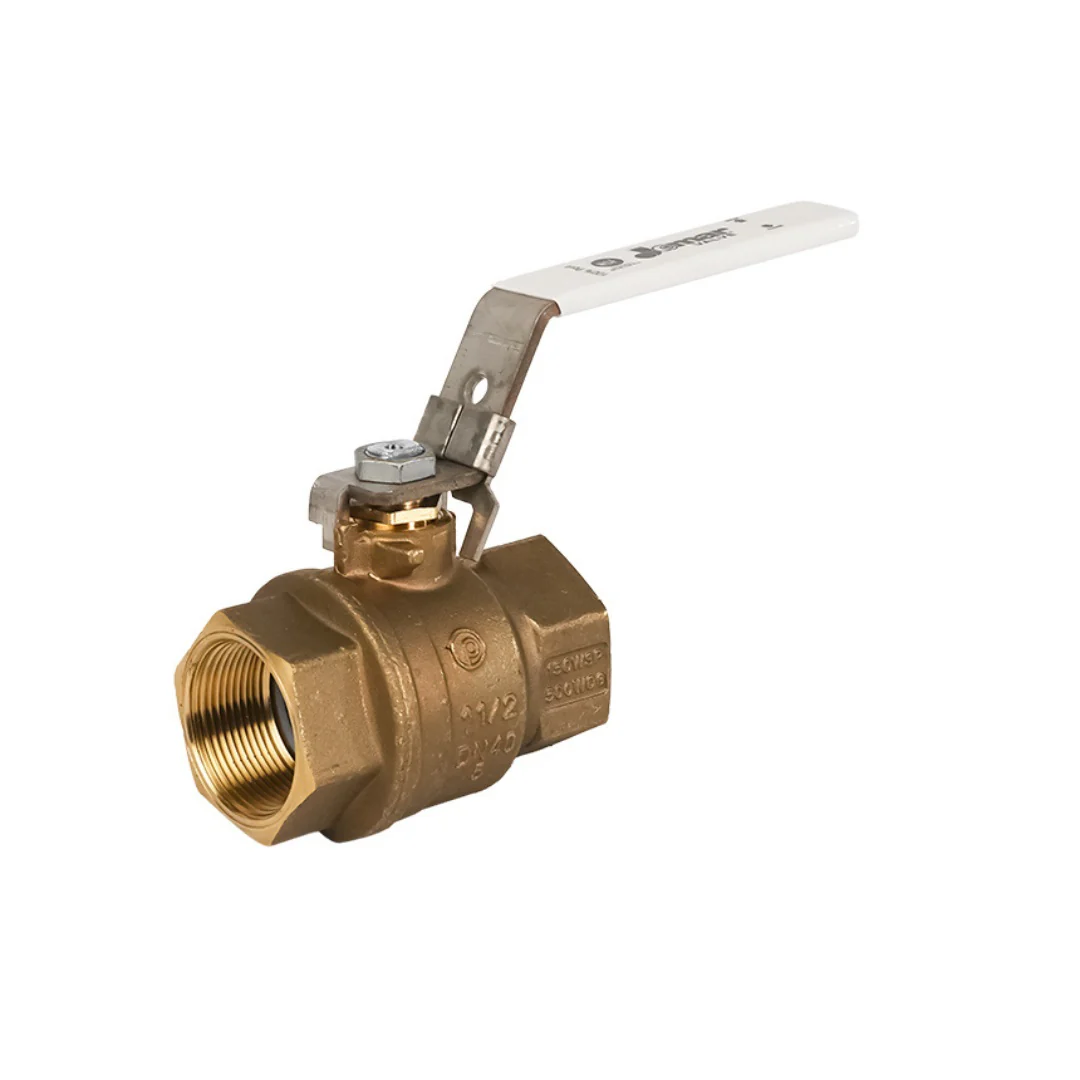

Jomar 100-406SSG-LH 1-1/4 Inch Full Port Threaded Lead Free Brass Ball Valve with Stainless Steel Trim & Locking Handle

Jomar 1-1/4 Inch T-100CSSG-LH Series Lead Free Brass 2 Piece Full Port Threaded Ball Valve with Stainless Steel Trim & Locking Handle

Optimize your systems by choosing Jomar Valve products for your projects. Made with high quality alloys and materials, longevity and peak performance are ensured no matter the application. With third-party testing, inspection and validation, Jomar provides a robust lineup of UL, CSA, FM and NSF certified products to customers worldwide.

This 1-1/4" T-100CSSG-LH Series 2-piece ball valve with full port threaded connections is rated for 600 psi (WOG) and is NSF 61 / NSF 372 certified. Made from lead free brass with stainless steel trim, it features a locking handle and a 100% leak tested triple sealing stem with a lifetime warranty.

Features

• Dezincification Resistant Brass Alloy
• Stainless Steel Trim
• Wetted Surfaces Contain Less than .25% Lead Content
• Triple Sealing Stem with 2 FKM O-rings and Second Generation PTFE Seats
• Blow-Out Proof Stem
• 100% Leak Tested
• Leakproof Stem – Lifetime Warranty
• 29 in-HG Vacuum Rating
• 100% Made in Italy
• Buy American Act Compliant



Specifications

MPN	100-406SSG-LH
Size	1-1/4"
Connection Type	Threaded
Handle Type	Latch Lock
Pressure Rating	600 WOG
Body Material	Lead Free Brass
Trim Material	Stainless Steel
Seat Material	PTFE
Seal Material	FKM

Certifications

UL Listed	VQGU – Trim & drain (US only) MHKZ – Manual valves YQNZ – Compressed gas shut-off valves YRBX – Flammable liquid shut-off valves YRPV – Gas shut-off valves YSDT – LP gas shut-off valves SFJQ – Valves, refrigerant
NSF	NSF 372 NSF 61-8 NSF 61 – Annex G

• ANSI B1.20.1



Resources

• T-100CSSG-LH Datasheet
• T-100 Series Brochure
• TS-100CSSG Flyer
