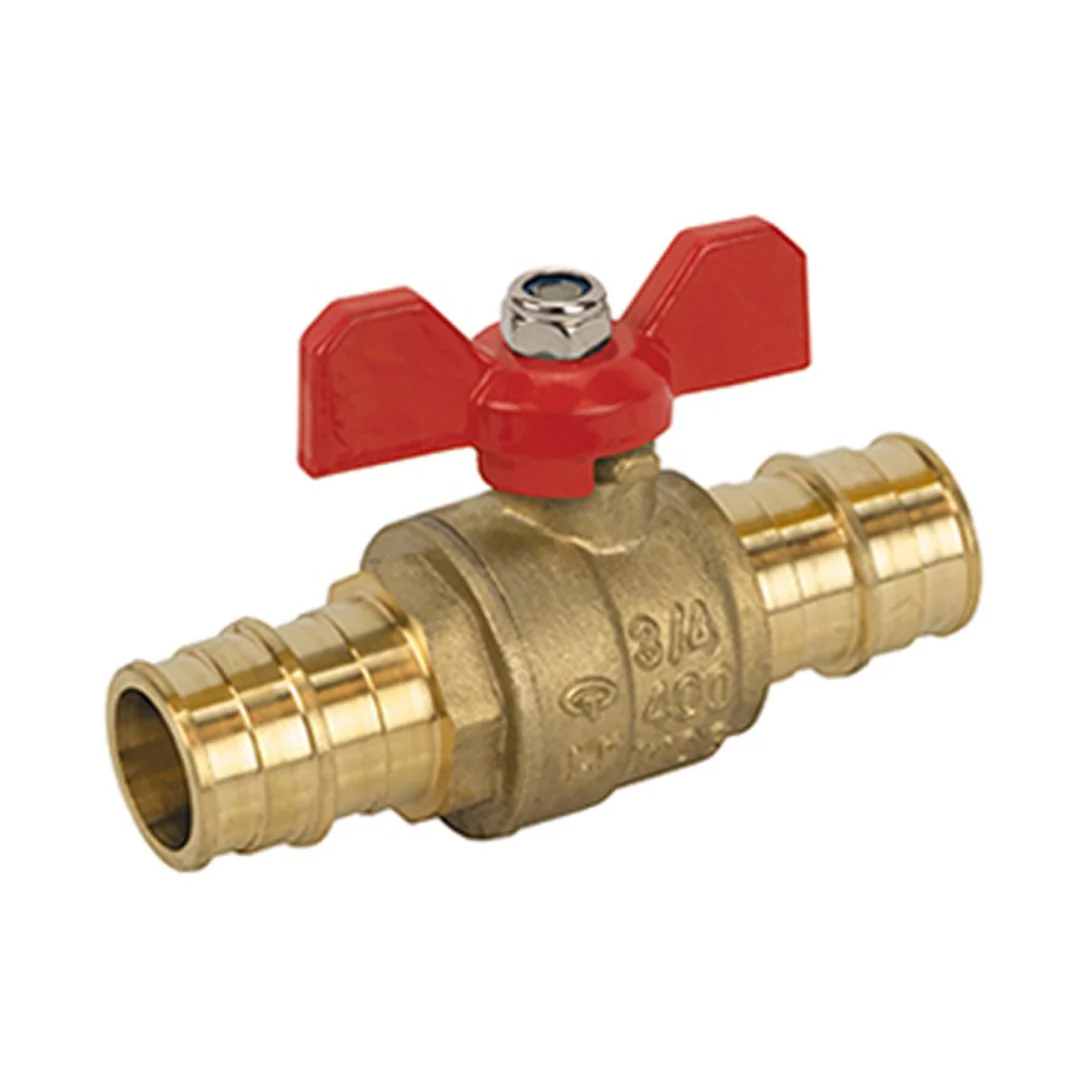

Jomar 104-525PG-TH 3 Pack - 1 Inch Expansion Pex Connection Lead Free Brass Ball Valves with T-Handle & Stainless Steel Trim

Jomar 1 Inch T-422G Series Lead Free Brass 2-Piece Expansion Pex Connection Ball Valves with T-Handle & Stainless Steel Trim - Pack of 3

Optimize your systems by choosing Jomar Valve products for your projects. Made with high quality alloys and materials, longevity and peak performance are ensured no matter the application. With third-party testing, inspection and validation, Jomar provides a robust lineup of UL, CSA, FM and NSF certified products to customers worldwide.

These 1" T-422G Series 2-piece ball valves with standard port expansion pex connections are rated for 400 psi (WOG) and are NSF 61/NSF 372/NSF 14 certified. Made from lead free brass with stainless steel trim, they feature a T-handle and a blow-out proof stem.

Each pack includes 3 104-525PG-TH brass ball valves with stainless steel ball and stem.

Features

• Dezincification Resistant Brass Alloy
• Stainless Steel Trim
• Wetted Surfaces Contain Less than .25% Lead Content
• Gland Follower and Single O-Ring Stem Design
• Blow-Out Proof Stem
• 100% Leak Tested
• IAPMO Certified – NSF 61/NSF 372/NSF 14
• ASTM F1960



Specifications

MPN	104-525PG-TH
Size	1"
Connection Type	Expansion Pex
Handle Type	T-Handle
Pressure Rating	400 WOG
Body Material	Lead Free Brass
Trim Material	Stainless Steel
Seat Material	PTFE
Seal Material	Buna-N

Certifications

IAPMO Certified	NSF 61-8 NSF 372 IAPMO/ANSI Z1157-2014 NSF/ANSI 14-2014

• ASTM F1960



Resources

• T-422G Datasheet
• TS-422G Brochure
