Jomar 150-565G 2 Pack - 1 Inch Full Port Press x FIP Connection Lead Free Brass 2-Piece Ball Valves
Jomar 150-565G 2 Pack - 1 Inch Full Port Press x FIP Connection Lead Free Brass 2-Piece Ball Valves
Jomar 1 Inch JP-150G PRESS x FIP Connection Lead Free Brass 2 Piece Full Port Ball Valves - Pack of 4
Optimize your systems by choosing Jomar Valve products for your projects. Made with high quality alloys and materials, longevity and peak performance are ensured no matter the application. With third-party testing, inspection and validation, Jomar provides a robust lineup of UL, CSA, FM and NSF certified products to customers worldwide.

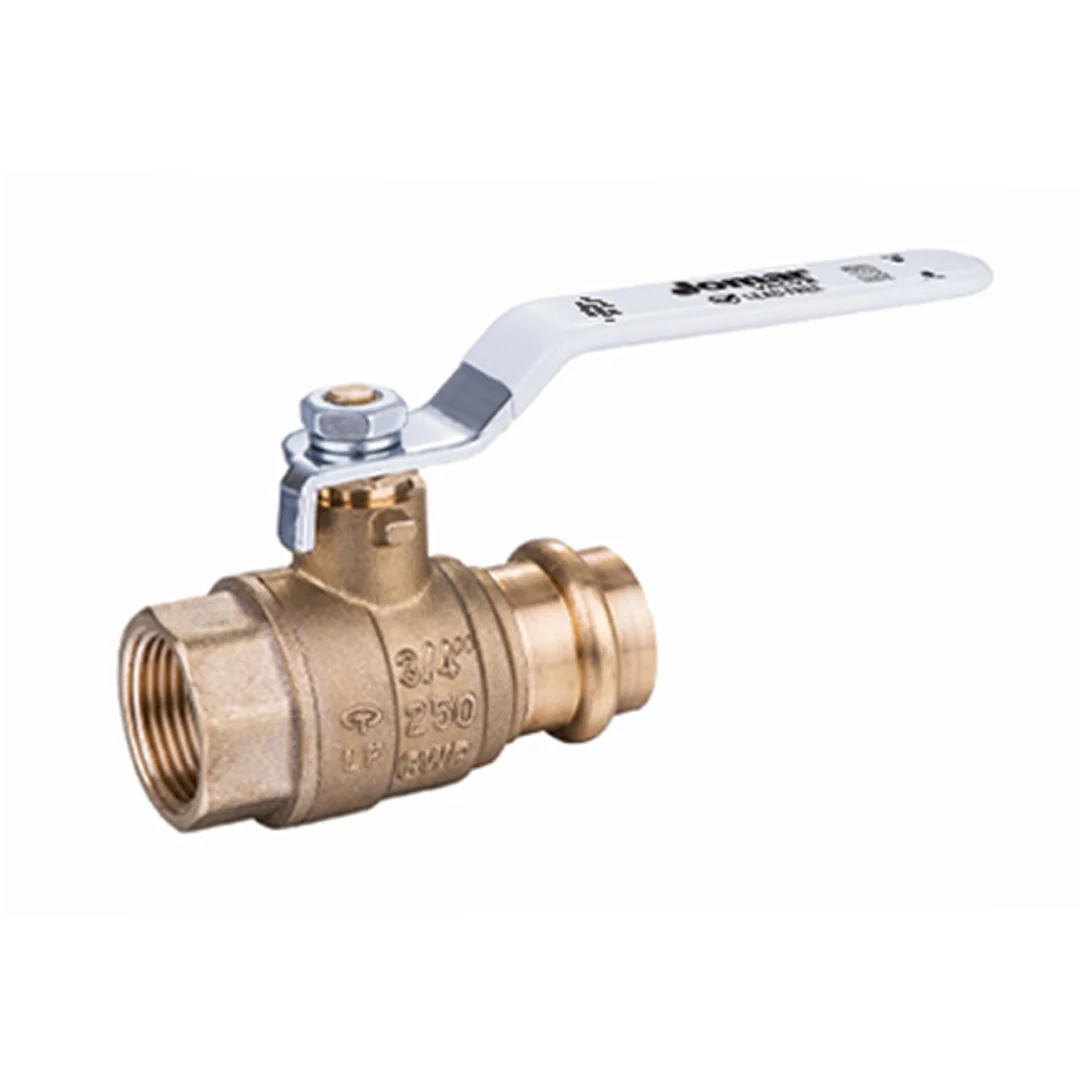

These 1" JP-150G PRESS x FIP Series 2-piece ball valves with full port press x FIP connections are rated for 250 psi (WOG) and are NSF 61 / NSF 372 certified. Made from lead free brass, they feature a lever handle and a blow-out proof stem.
Each pack includes 2 150-565G brass ball valves.
Features
- Dezincification Resistant Brass Alloy
- Wetted Surfaces Contain Less than .25% Lead Content
- Gland Follower and Single O-Ring Stem Design
- Blow-Out Proof Stem
- 29 in-Hg Vacuum Rating
- IAPMO Certified – NSF 61 & NSF 372
Specifications
| MPN | 150-565G |
|---|---|
| Size | 1" |
| Connection Type | Press x FIP |
| Handle Type | Lever |
| Pressure Rating | 250 WOG |
| Body Material | Lead Free Brass |
| Trim Material | Brass |
| Seat Material | PTFE |
| Seal Material | NBR |
Certifications
- Conforms to IAPMO PS 117
- Conforms to ANSI B1.20.1
| IAPMO Certified |
|
|---|
Resources
Description
Jomar 1 Inch JP-150G PRESS x FIP Connection Lead Free Brass 2 Piece Full Port Ball Valves - Pack of 4
Optimize your systems by choosing Jomar Valve products for your projects. Made with high quality alloys and materials, longevity and peak performance are ensured no matter the application. With third-party testing, inspection and validation, Jomar provides a robust lineup of UL, CSA, FM and NSF certified products to customers worldwide.
These 1" JP-150G PRESS x FIP Series 2-piece ball valves with full port press x FIP connections are rated for 250 psi (WOG) and are NSF 61 / NSF 372 certified. Made from lead free brass, they feature a lever handle and a blow-out proof stem.
Each pack includes 2 150-565G brass ball valves.
Features
- Dezincification Resistant Brass Alloy
- Wetted Surfaces Contain Less than .25% Lead Content
- Gland Follower and Single O-Ring Stem Design
- Blow-Out Proof Stem
- 29 in-Hg Vacuum Rating
- IAPMO Certified – NSF 61 & NSF 372
Specifications
| MPN | 150-565G |
|---|---|
| Size | 1" |
| Connection Type | Press x FIP |
| Handle Type | Lever |
| Pressure Rating | 250 WOG |
| Body Material | Lead Free Brass |
| Trim Material | Brass |
| Seat Material | PTFE |
| Seal Material | NBR |
Certifications
- Conforms to IAPMO PS 117
- Conforms to ANSI B1.20.1
| IAPMO Certified |
|
|---|
