Jomar 104-528PG 2 Inch Expansion Pex Connection Lead Free Brass Ball Valves with Stainless Steel Trim

Jomar 2 Inch T-422G Series Lead Free Brass 2-Piece Expansion Pex Connection Ball Valves with Stainless Steel Trim

Optimize your systems by choosing Jomar Valve products for your projects. Made with high quality alloys and materials, longevity and peak performance are ensured no matter the application. With third-party testing, inspection and validation, Jomar provides a robust lineup of UL, CSA, FM and NSF certified products to customers worldwide.

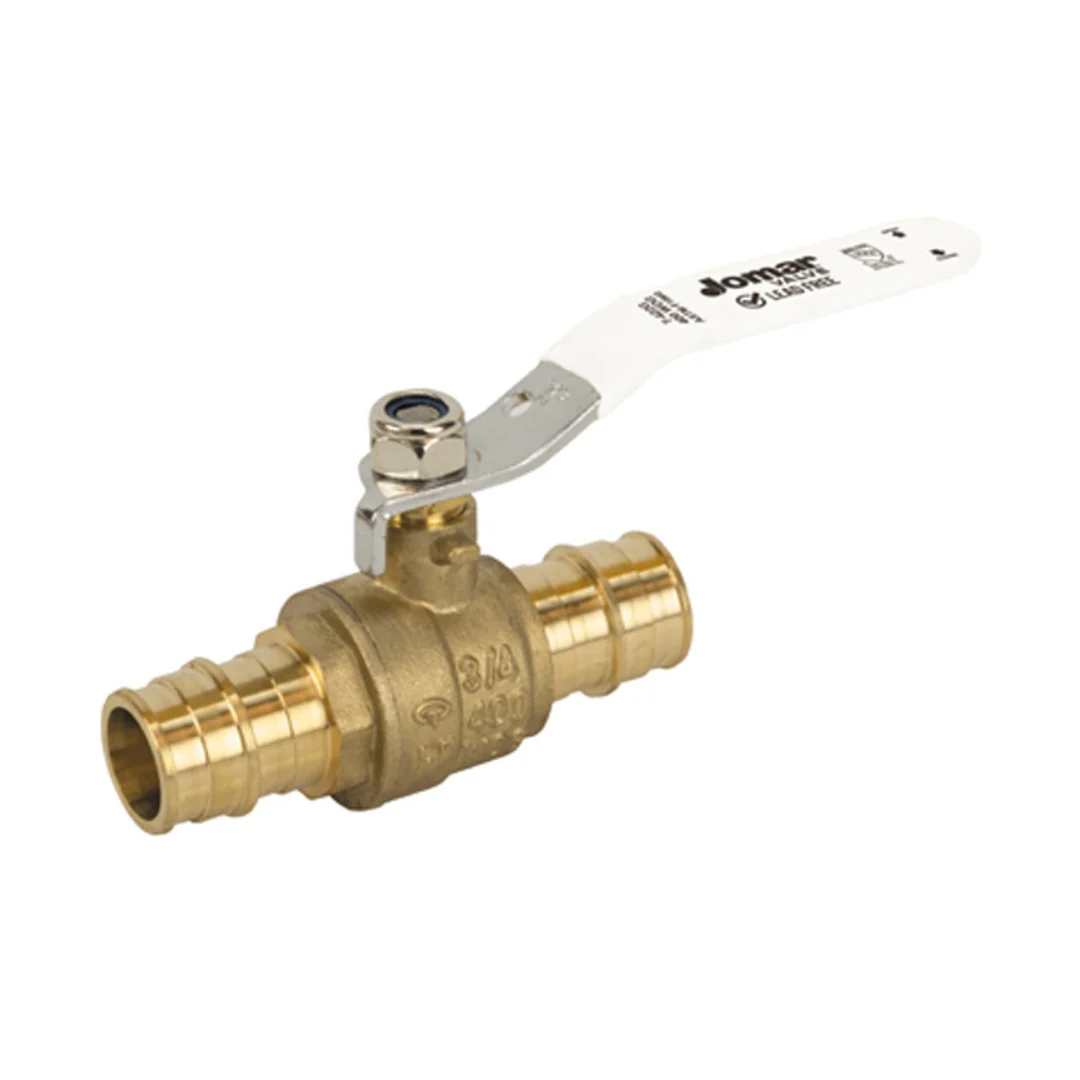

These 2" T-422G Series 2-piece ball valves with full port expansion pex connections are rated for 400 psi (WOG) and are NSF 61/NSF 372/NSF 14 certified. Made from lead free brass with stainless steel trim, they feature a lever handle and a blow-out proof stem.

Features

• Dezincification Resistant Brass Alloy
• Stainless Steel Trim
• Wetted Surfaces Contain Less than .25% Lead Content
• Gland Follower and Single O-Ring Stem Design
• Blow-Out Proof Stem
• 100% Leak Tested
• IAPMO Certified – NSF 61/NSF 372/NSF 14
• ASTM F1960



Specifications

MPN	104-528PG
Size	2"
Connection Type	Expansion Pex
Handle Type	Lever
Pressure Rating	400 WOG
Body Material	Lead Free Brass
Trim Material	Stainless Steel
Seat Material	PTFE
Seal Material	Buna-N

Certifications

IAPMO Certified	NSF 61-8 NSF 372 IAPMO/ANSI Z1157-2014 NSF/ANSI 14-2014

• ASTM F1960



Resources

• T-422G Datasheet
• TS-422G Brochure
