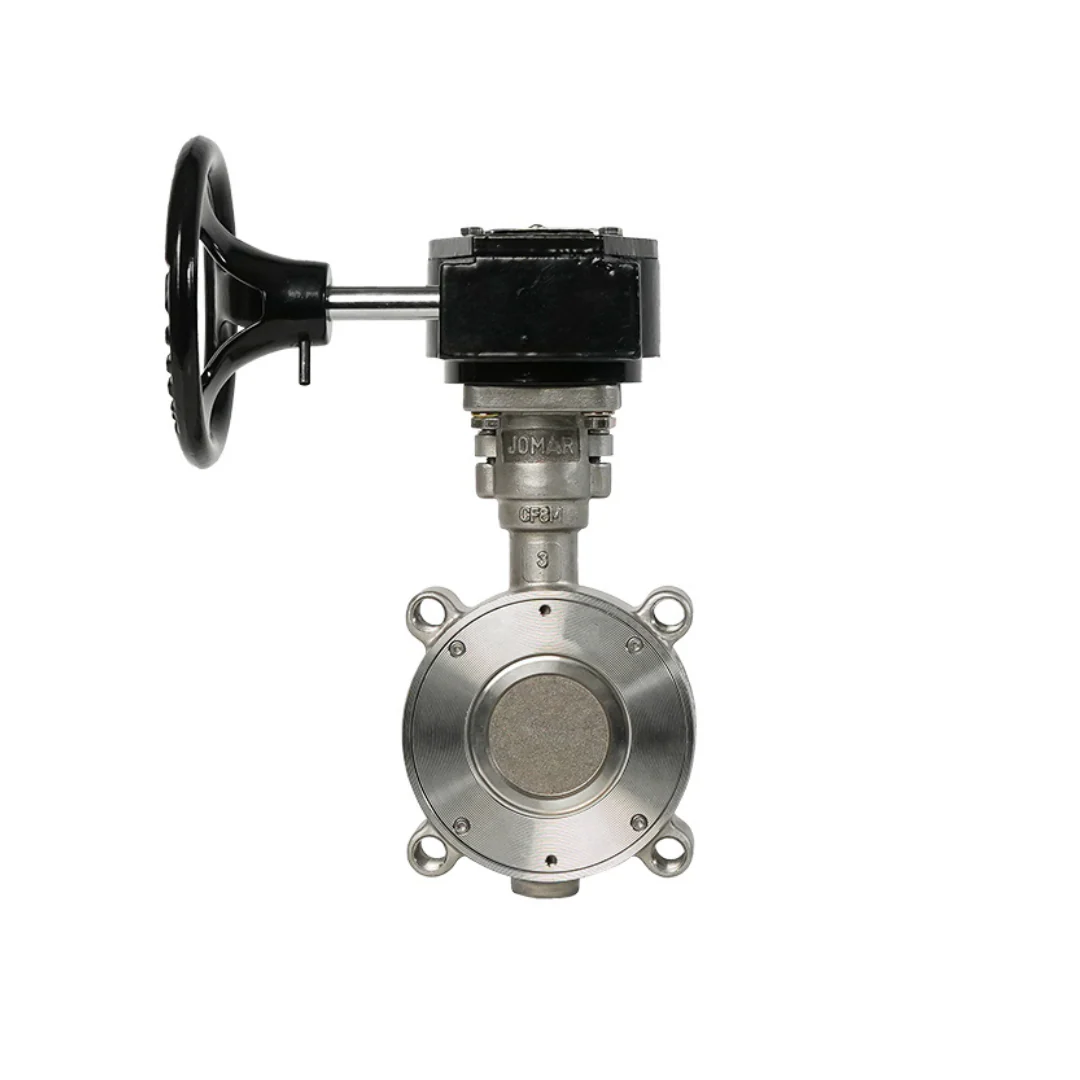

Jomar 600-24H1SSRG 24 Inch Lug Style High Performance Butterfly Valve, Stainless Steel Body, Dual Offset Stainless Steel Disc with RPTFE Seat and Gear Operator, Class 150

Jomar 24 Inch Lug Style High Performance Butterfly Valve, Stainless Steel Body, Dual Offset Stainless Steel Disc with FPTFE Seat and Gear Operator, Class 150

Features:

• Corrosion Resistant One-Piece Body
• RPTFE or Fire-Safe Metal Seats Available
• Bubble-Tight Shut-off Design
• Durable One-Piece Stem
  – A564 Gr.630/17-4 PH® Materials
• ISO 5211 Mounting Pad
  – 2″ – 12” = Square Design
  – 14″ – 24” = Keyed Design
• Dual Offset Disc Design
• Internal Stop to Prevent Disc Over-Travel
• Tight Gland Packing Flange to Prevent Uneven Load Distribution
• Bidirectional for Dead End Service
• 29 in-Hg Vacuum Rating

Jomar Valve Datasheet

Certifications:

• Basic Design
  • API 609
  • MSS-SP-68
  • BS 5155
  • ISO 5752
• Pressure/Temperature Rating
  • ANSI B16.34
• Shell/Seat Test
  • API 598
  • MSS-SP-61
• Metal-to-Metal Seat Leakage
  • Class IV per ASME/FCI 70-2
• Working Pressure
  • Class 150 (285 PSIG)
• Buy American Act Compliant
