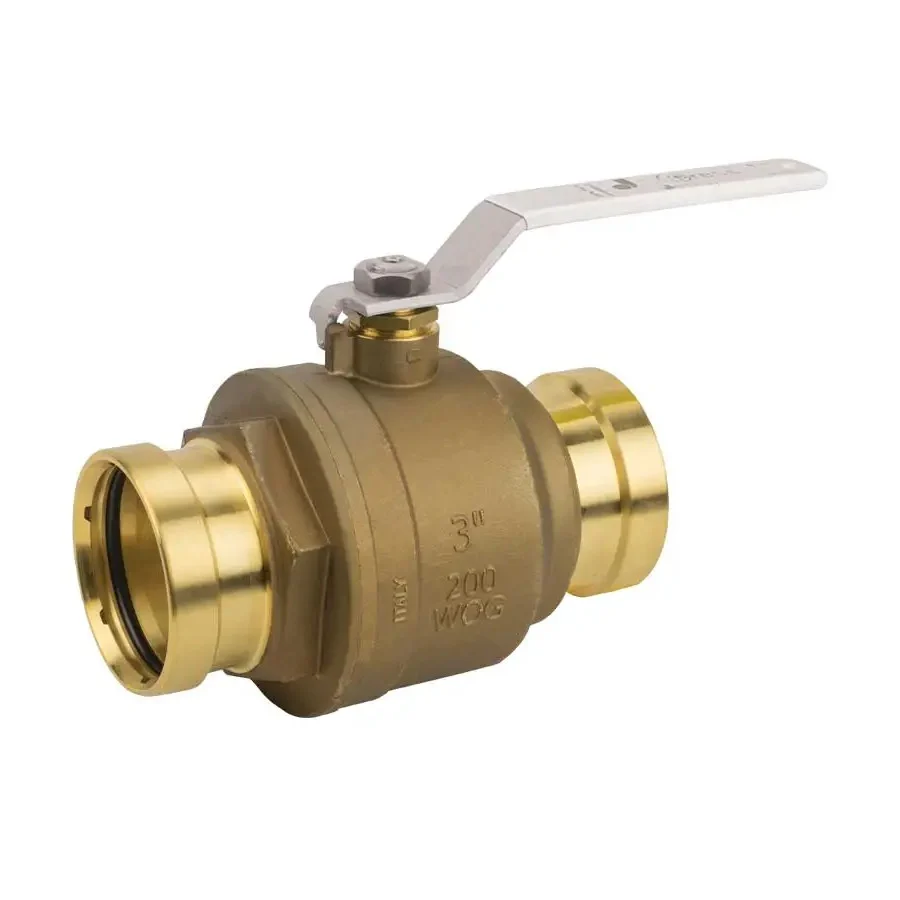

Jomar 100-210XLCSSG 3 Inch Full Port Press XLC Connection Lead Free Brass Ball Valve with Stainless Steel Trim
Jomar 100-210XLCSSG 3 Inch Full Port Press XLC Connection Lead Free Brass Ball Valve with Stainless Steel Trim
Jomar 3 Inch JP-100SSG XLC Series Lead Free Brass 2 Piece Full Port Press XLC Connection Ball Valve with Stainless Steel Trim
Optimize your systems by choosing Jomar Valve products for your projects. Made with high quality alloys and materials, longevity and peak performance are ensured no matter the application. With third-party testing, inspection and validation, Jomar provides a robust lineup of UL, CSA, FM and NSF certified products to customers worldwide.
This 3" JP-100SSG XLC Series 2-piece ball valve with full port press XLC connections is rated for 200 psi (WOG) and conforms to IAPMO PS 117. Made from lead free brass with stainless steel trim, it features a lever handle and a 100% leak tested triple sealing stem with a lifetime warranty.
Features
- Dezincification Resistant Brass Alloy
- Stainless Steel Trim
- Wetted Surfaces Contain Less than .25% Lead Content
- Triple Sealing Stem with 2 FKM O-rings and Second Generation PTFE Seats
- Blow-Out Proof Stem
- 100% Leak Tested
- Leakproof Stem – Lifetime Warranty
- 100% Made in Italy
- Buy American Act Compliant
Specifications
| MPN | 100-210XLCSSG |
|---|---|
| Size | 3" |
| Connection Type | Press XLC |
| Handle Type | Lever |
| Pressure Rating | 200 WOG |
| Body Material | Lead Free Brass |
| Trim Material | Stainless Steel |
| Seat Material | PTFE |
| Seal Material | FKM |
Certifications
- Conforms to IAPMO PS 117
- Meets IS0 6509
Resources
Description
Jomar 3 Inch JP-100SSG XLC Series Lead Free Brass 2 Piece Full Port Press XLC Connection Ball Valve with Stainless Steel Trim
Optimize your systems by choosing Jomar Valve products for your projects. Made with high quality alloys and materials, longevity and peak performance are ensured no matter the application. With third-party testing, inspection and validation, Jomar provides a robust lineup of UL, CSA, FM and NSF certified products to customers worldwide.
This 3" JP-100SSG XLC Series 2-piece ball valve with full port press XLC connections is rated for 200 psi (WOG) and conforms to IAPMO PS 117. Made from lead free brass with stainless steel trim, it features a lever handle and a 100% leak tested triple sealing stem with a lifetime warranty.
Features
- Dezincification Resistant Brass Alloy
- Stainless Steel Trim
- Wetted Surfaces Contain Less than .25% Lead Content
- Triple Sealing Stem with 2 FKM O-rings and Second Generation PTFE Seats
- Blow-Out Proof Stem
- 100% Leak Tested
- Leakproof Stem – Lifetime Warranty
- 100% Made in Italy
- Buy American Act Compliant
Specifications
| MPN | 100-210XLCSSG |
|---|---|
| Size | 3" |
| Connection Type | Press XLC |
| Handle Type | Lever |
| Pressure Rating | 200 WOG |
| Body Material | Lead Free Brass |
| Trim Material | Stainless Steel |
| Seat Material | PTFE |
| Seal Material | FKM |
Certifications
- Conforms to IAPMO PS 117
- Meets IS0 6509
