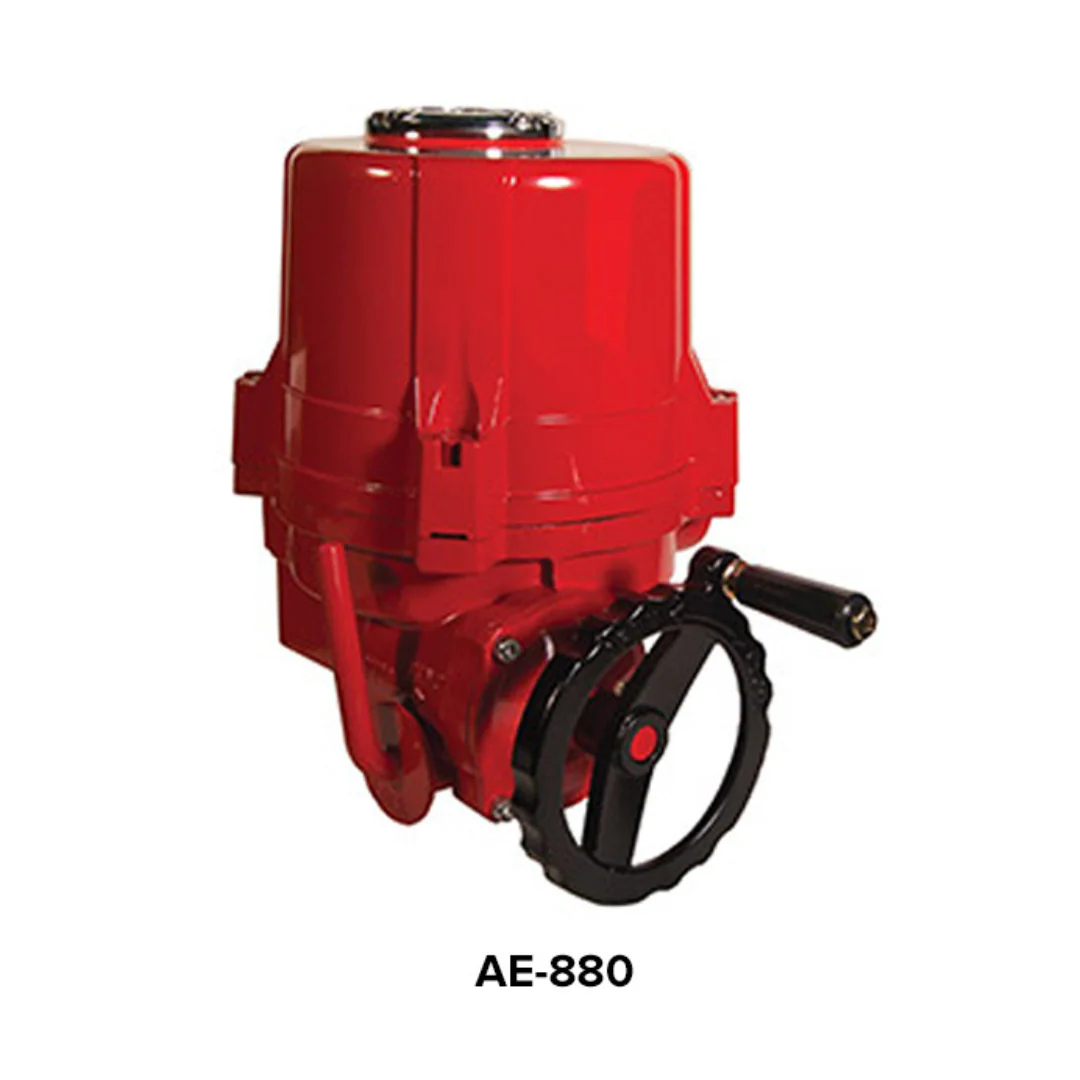

Jomar AE-880 Electric Actuator, Double Acting, NEMA 4x, Manual Override, 120VAC

Jomar AE-880 Electric Actuator, Double Acting, NEMA 4x, Manual Override, 120VAC

Features:

• Hard Anodized Aluminum Housing with External Powder Coating for Severe Duty Applications
• 90˚ Operation
• Enclosure: IP67 (Nema 4, 4X)
• ISO 5211 Mounting Pad
• Worm Gearing, No Brake Required
• Standard Manual Override
• Torque Switches for Overload Protection (not including AE-180)
• Squirrel Cage Induction Motor
• Duty Cycle: 50%
• 4 Limit Switches (AE-180: QTY 2)
• Cable Entries: 3/4” NPT / M20 x 1.5
• 5W Internal Heater (AE-350 and larger)
• Terminal Block for Wiring Ease
• Position Indicator
• Standard Adjustable Travel Stops
• Temperature range:
  – AE-180: -22°F to 140°F
  – AE-350 and larger: -4°F to 158°F

Jomar Actuator Datasheet

Certifications:

• CSA applies to models AE-880 – AE9700:
  • C22.2 No. 139-1982, 77-95, 100-04, UL429, UL2111, UL1004, 0-M91, 94.1-07, 94:2-07, 30-M1986, 25-1966, 1399-1982, 60529:05, 60079-0-07, 60079-1-07, ANSI/UL 429, 50E, 50, 1002, IEC 60529, 60079-0, 60079-1, and ANSI/UL 1203.
