Jomar 100-413SSG-IH 2 Pack - 1/2 Inch Solder Connection Lead Free Brass Ball Valves with Stainless Steel Trim & Insulated Handles

Jomar 1/2 Inch S-100CSSG-IH Series Lead Free Brass 2 Piece Full Port Solder Connection Ball Valves with Stainless Steel Trim & Insulated Handles - Pack of 2

Optimize your systems by choosing Jomar Valve products for your projects. Made with high quality alloys and materials, longevity and peak performance are ensured no matter the application. With third-party testing, inspection and validation, Jomar provides a robust lineup of UL, CSA, FM and NSF certified products to customers worldwide.

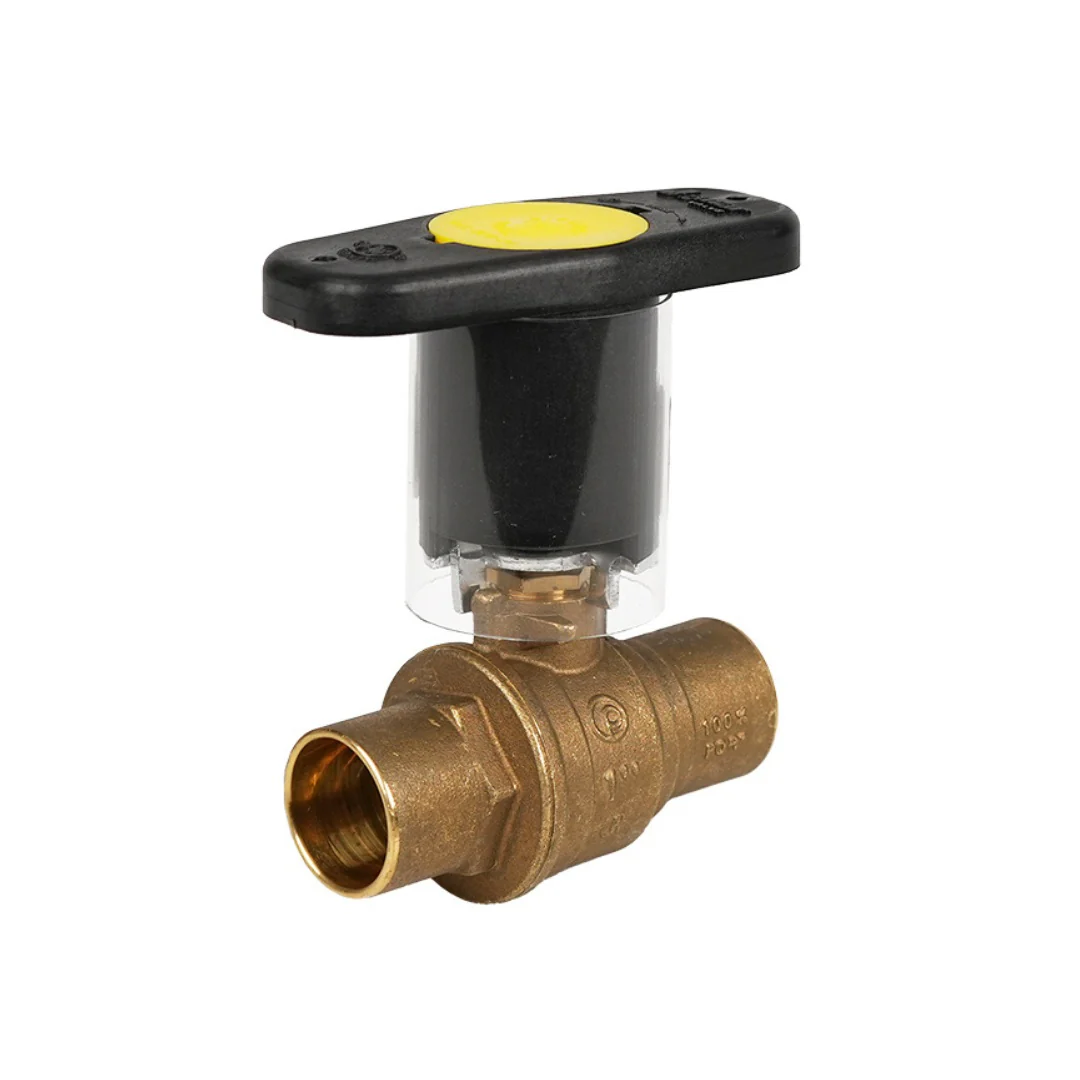

These 1/2" S-100CSSG-IH Series 2-piece ball valves with full port solder connections are rated for 600 psi (WOG) and are NSF 61 / NSF 372 certified. Made from lead free brass with stainless steel trim, they feature an insulated handle and a 100% leak tested triple sealing stem with a lifetime warranty.

Each pack includes 2 100-413SSG-IH ball valves with stainless steel ball and stem and insulated handles.

Features

• Dezincification Resistant Brass Alloy
• Stainless Steel Trim
• UL-2043 Certified Handle
• Wetted Surfaces Contain Less than .25% Lead Content
• Triple Sealing Stem with 2 FKM O-rings and Second Generation PTFE Seats
• Blow-Out Proof Stem
• 100% Leak Tested
• Leakproof Stem – Lifetime Warranty
• 29 in-HG Vacuum Rating
• 100% Made in Italy
• Buy American Act Compliant



Specifications

MPN	100-413SSG-IH
Size	1/2"
Connection Type	Solder
Handle Type	Insulated
Pressure Rating	600 WOG
Body Material	Lead Free Brass
Trim Material	Stainless Steel
Seat Material	PTFE
Seal Material	FKM

Certifications

UL Listed	VQGU – Trim & drain (US only)
NSF	NSF 372 NSF 61-8 NSF 61 – Annex G

• ASME/ANSI B16.18



Resources

• S-100CSSG-IH Datasheet
• TS-100CSSG Flyer
