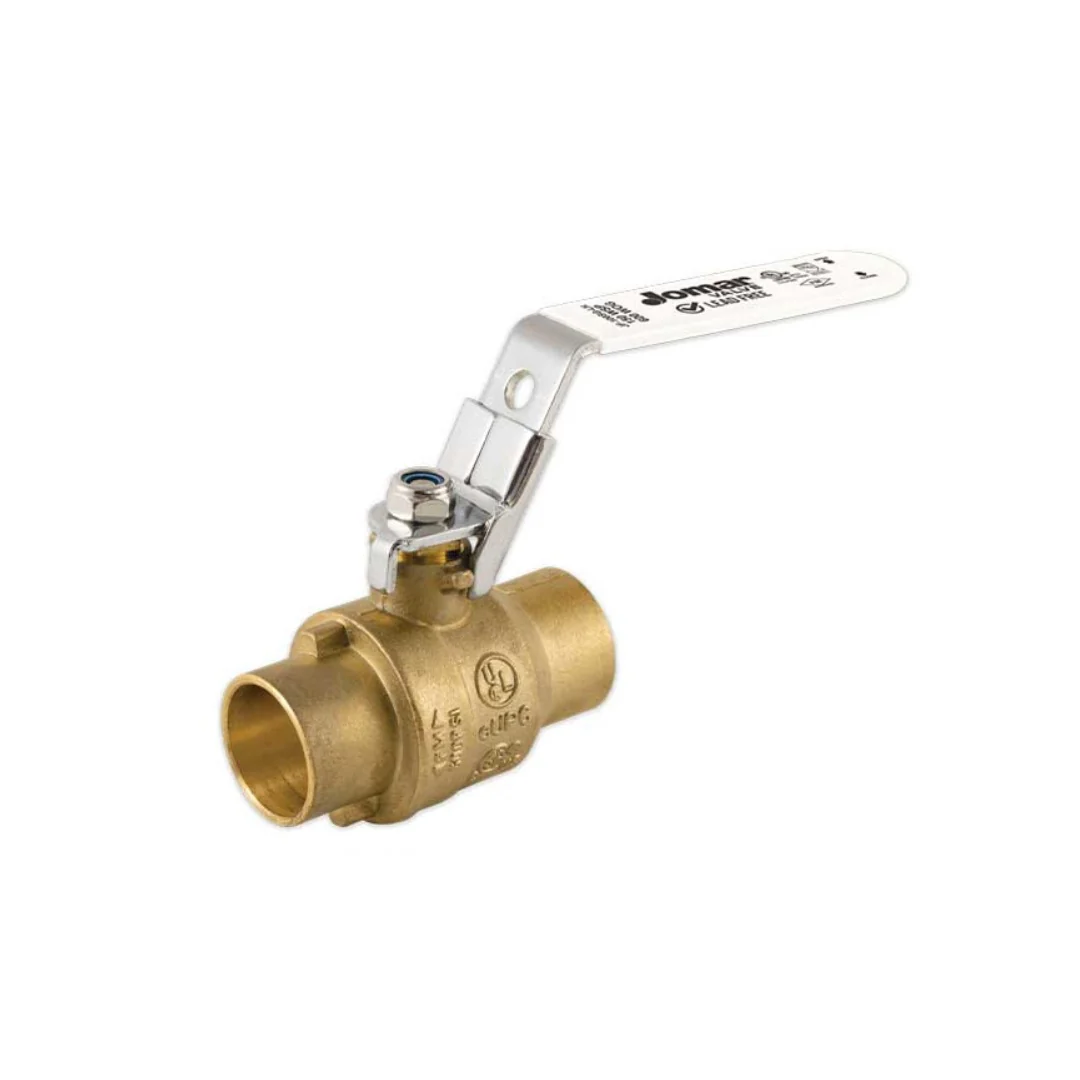

Jomar 100-113SSG-LH 5 Pack - 1/2 Inch Solder Connection Lead Free Brass Ball Valves with Stainless Steel Trim & Locking Handles

Jomar 1/2 Inch JF-100SG-LH Series Lead Free Brass 2 Piece Full Port Solder Connection Ball Valves with Stainless Steel Trim & Locking Handles - Pack of 5

Optimize your systems by choosing Jomar Valve products for your projects. Made with high quality alloys and materials, longevity and peak performance are ensured no matter the application. With third-party testing, inspection and validation, Jomar provides a robust lineup of UL, CSA, FM and NSF certified products to customers worldwide.

These 1/2" JF-100SG-LH Series 2-piece ball valves with full port solder connections are rated for 600 psi (WOG) and are NSF 61 / NSF 372 certified. Made from lead free brass with stainless steel trim, they feature a locking handle and a 100% leak tested blow-out proof stem.

Each pack includes 5 100-113SSG-LH ball valves with stainless steel ball and stem and latch lock handles.

Features

• Dezincification Resistant Brass Alloy
• Stainless Steel Trim
• Wetted Surfaces Contain Less than .25% Lead Content
• Gland Follower and Single O-Ring Stem Design
• Blow-Out Proof Stem
• 100% Leak Tested
• IAPMO Certified – NSF 61 & NSF 372
• FM Approval (1/4" - 2")



Specifications

MPN	100-113SSG-LH
Size	1/2"
Connection Type	Solder
Handle Type	Locking
Pressure Rating	600 WOG
Body Material	Lead Free Brass
Trim Material	Stainless Steel
Seat Material	PTFE
Seal Material	Buna-N

Certifications

UL Listed up to 175 PSI (1/2″ – 2″)	MHKZ – Manual valves YRPV – Gas shut-off valves
IAPMO Certified	NSF 372 NSF 61-8 IAPMO/ANSI Z1157-2014 NSF/ANSI 14-2014

• FM Approval (1/2” - 1-1/2” 600 WOG, 2” 500 WOG)
• MSS SP-110
• ASME/ANSI B16.18



Resources

• JF-100SG-LH Datasheet
• JF-100TG Series Brochure
