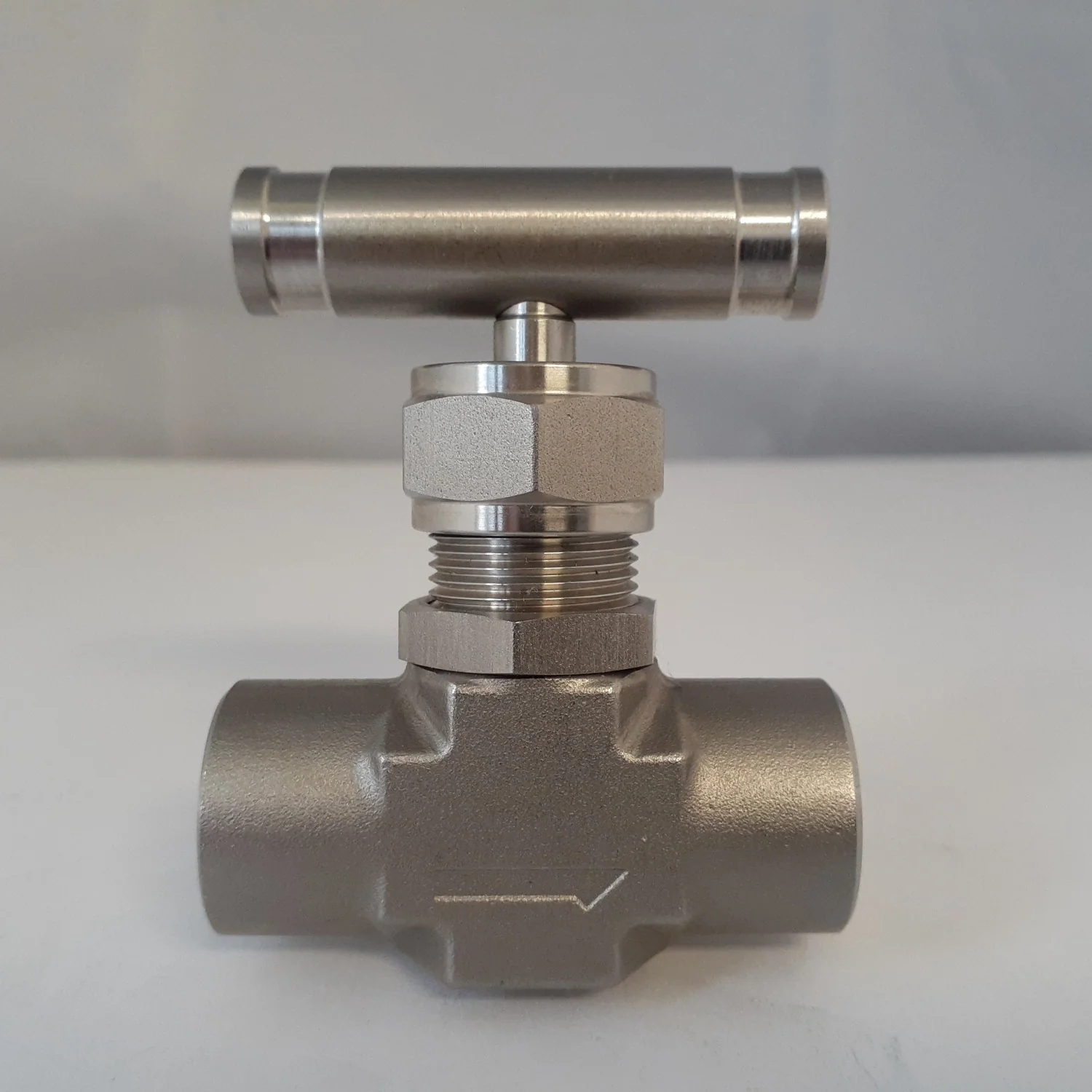

JW-LOK 1/4 Inch Needle Valve, 316 Stainless Steel

JW-LOK Needle Valve - 316 Stainless Steel

Needle valves use a tapered pin to gradually open for fine control of flow and for positive leak tight shut-off and regulation of fluids in process, power, and instrumentation applications. The flow can be regulated by using the spindle.

Features:

• Size: 1/4 Inch Female NPT
• Material: 316 Stainless Steel

• 6 MM Orifice
• 316 SS Seat, PTFE Packing
• 316 SS Stem with Blunt Tip
• Maximum Working Pressure: 5000 psig (345 bar)
• Straight Flow, Panel Mount Option

• T- design handle

• Stainless Steel Temperature Range: -65°F to 450°F (-54°C to 232°C)

• Rolled stem threads for longer valve life
• Every valve is performance tested for leaks with nitrogen at max. working pressure.
